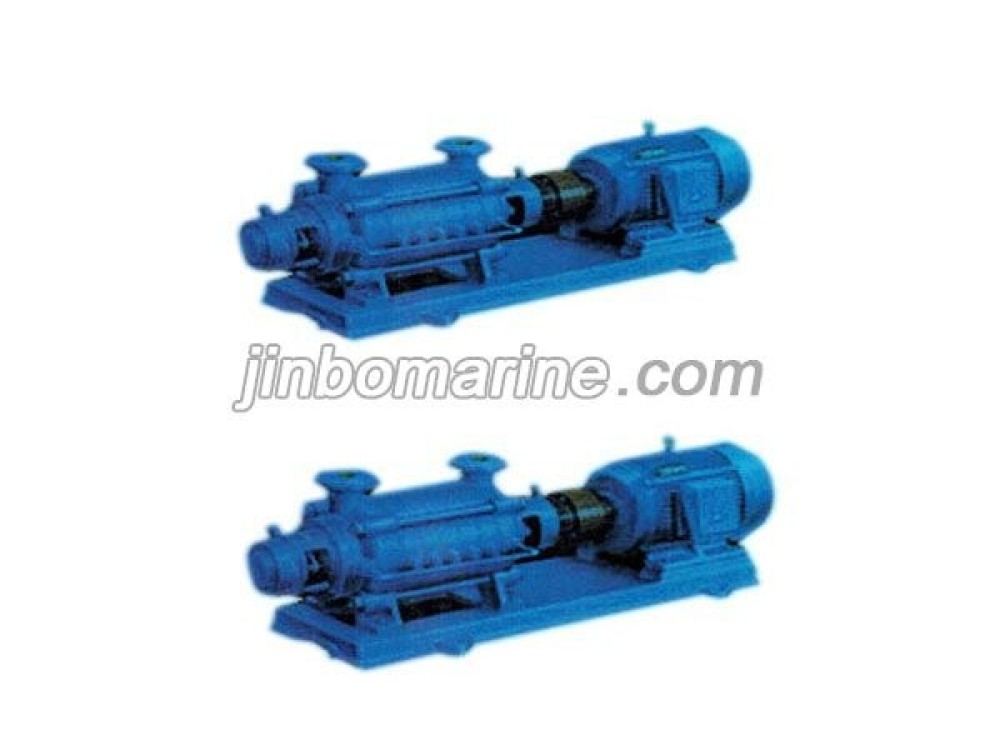

CDWL Series Marine Horizontal Several Stages Centrifugal Pump
PDF Datasheet
We can supply according to your requirement.

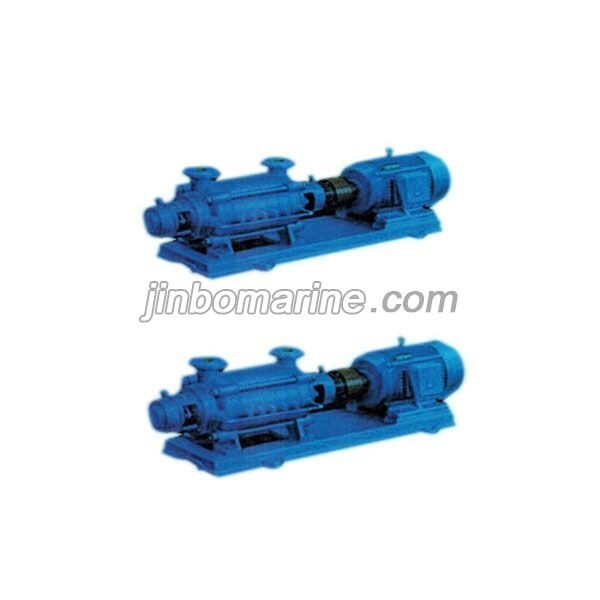

China CDWL Series Marine Horizontal Several Stages Centrifugal Pump:
CDWL series marine horizontal several stages centrifugal pump is a high temperature, intermediate pressure and little capacity kind of boiler feed pump. This product is widely used to fire-fighting,cooling,boiler feed water,desalination of sea water,deck wash warehouse and living water supply system.It can transport seawater,living water and similar liquid which temperature is not more than 130℃.
| Main Technical Data | ||||
| Model | Flow rate Q m³/h | Lift H (m) | Rev speed r/min | Motor power (KW) |
| 40CDWL3 | 6.2 | 72.4 | 2900 | 5.5 |
| 40CDWL4 | 6.2 | 96.6 | 2900 | 7.5 |
| 40CDWL5 | 6.2 | 120 | 2900 | 7.5 |
| 50CDWL2 | 12.5 | 103 | 2900 | 11 |
| 50CDWL3 | 12.5 | 155 | 2900 | 15 |
| 50CDWL4 | 12.5 | 206 | 2900 | 22 |
| 65CDWL2 | 25 | 159 | 2900 | 30 |
| 65CDWL3 | 25 | 239 | 2900 | 45 |
| 65CDWL4 | 25 | 318 | 2900 | 55 |
| 80CDWL2 | 50.4 | 164 | 2900 | 55 |
| 80CDWL3 | 50.4 | 246 | 2900 | 75 |
| 80CDWL4 | 50.4 | 329 | 2900 | 110 |
| 100CDWL2 | 102 | 165 | 2900 | 90 |
| 100CDWL3 | 102 | 248 | 2900 | 132 |
| 100CDWL4 | 102 | 331 | 2900 | 160 |
| 65CDWL4 | 30 | 457 | 3540 | 90 |
| 65CDWL5 | 30 | 571 | 3540 | 110 |
| 65CDWL6 | 30 | 685 | 3540 | 132 |
| 80CDWL2 | 60.4 | 63.5 | 3540 | 90 |
| 80CDWL3 | 60.4 | 95.2 | 3540 | 132 |
| 80CDWL4 | 60.4 | 134 | 3540 | 160 |
| Alao have bigger pumps, pls contact us for more information. | ||||
