CF5-7 Marine horizontal centrifugal pump
CF5-7 Marine horizontal centrifugal pump: CF pump is a Marine horizontal centrifugal pump, and the indicators meet the requirements of CB/3792-1996 "Technical Conditions for Marine dom...
Loading product images...
CF5-7 Marine horizontal centrifugal pump
PDF Datasheet
We can supply according to your requirement.

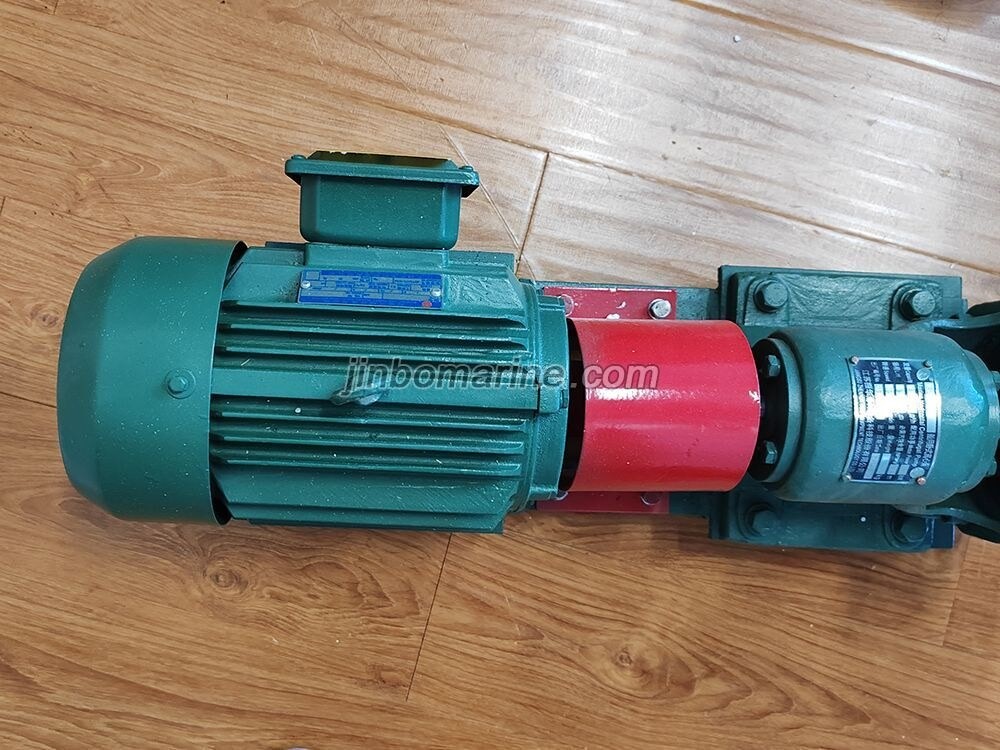

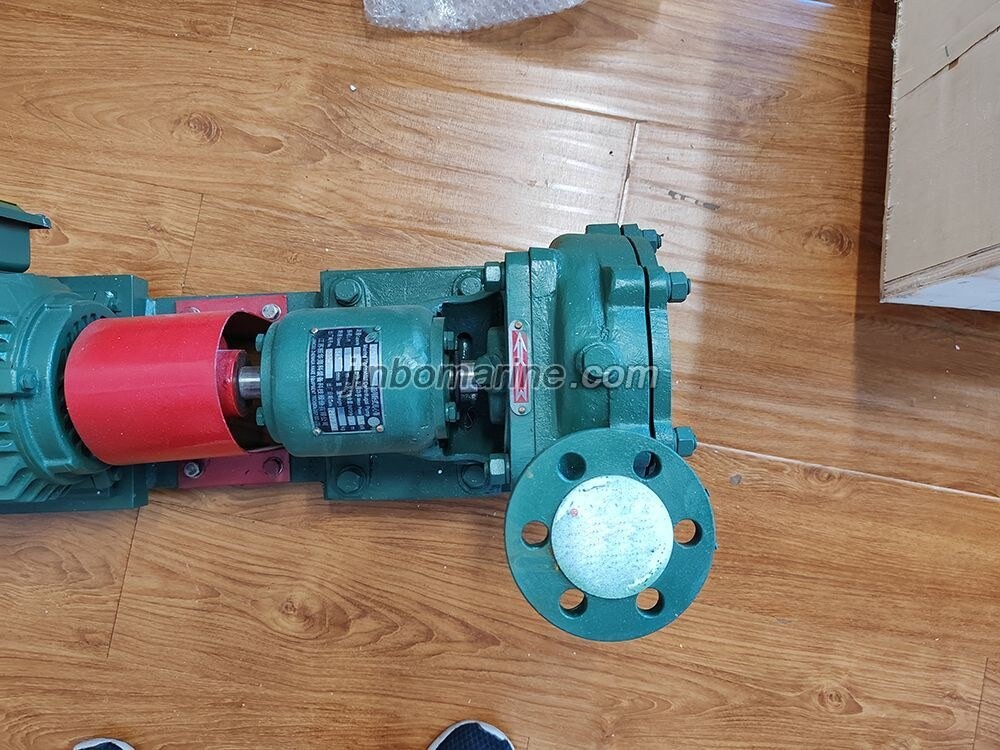

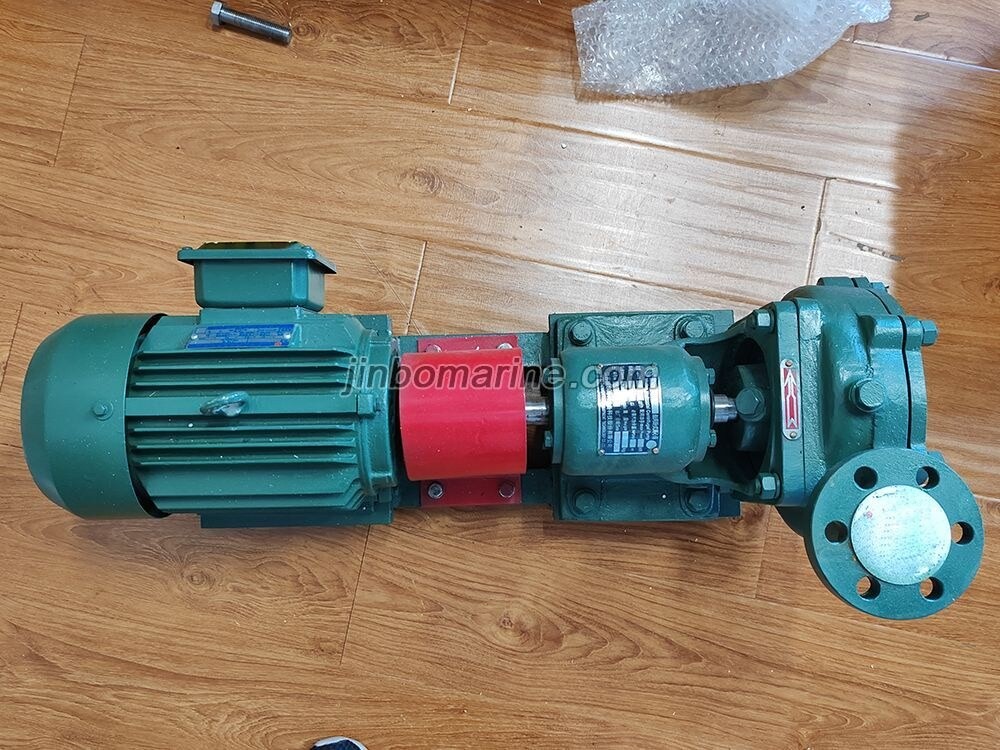

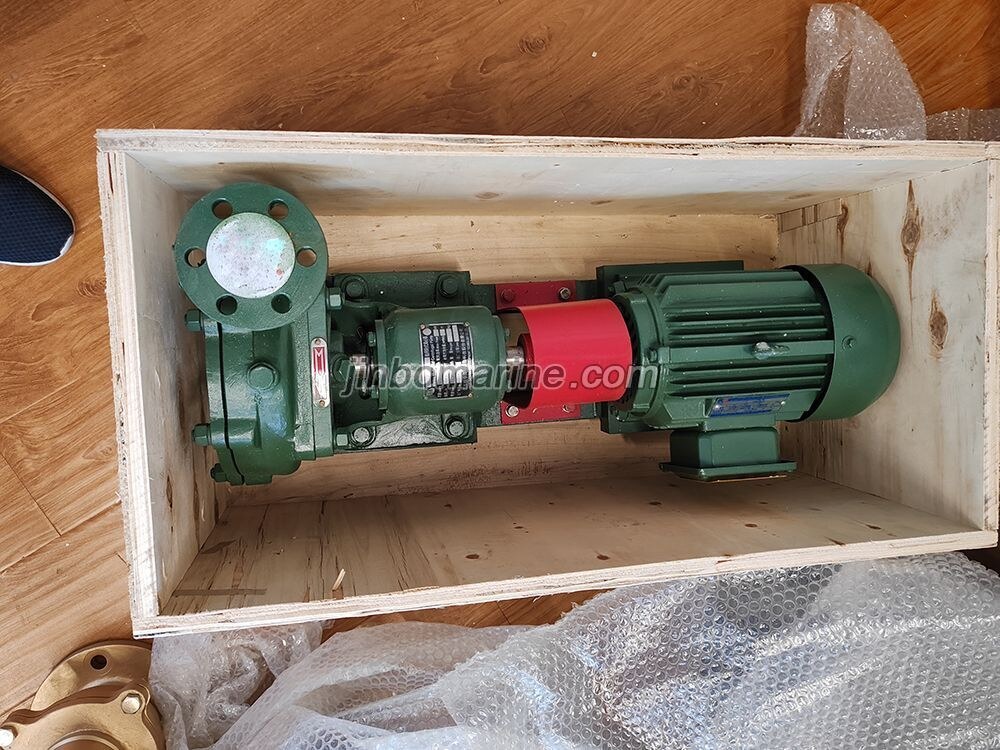

CF5-7 Marine horizontal centrifugal pump:
CF pump is a Marine horizontal centrifugal pump, and the indicators meet the requirements of CB/3792-1996 "Technical Conditions for Marine domestic water crushing pump".
This pump is used to crush and transport soft dirt in domestic sewage with temperature below 85 degrees Celsius. The maximum particle diameter after circulation grinding is not more than 5㎜, and it is also suitable for low temperature solidification and grinding of Marine heavy oil, which is easy to spray.
| Model | Flow | Head | Speed | NPSH | Motor Power |
| m3/h | m | r/min | m | kW | |
| CF5-7 | 5 | 7 | 1450 | 4 | 1.5 |
| CF5-8 | 5 | 8 | 2900 | 4 | 0.75 |
| CF5-10 | 5 | 10 | 2900 | 4 | 1.1 |
| CF10-11 | 10 | 11 | 2900 | 4 | 1.5 |
| CF10-15 | 10 | 15 | 2900 | 4 | 3 |
| CF15-30 | 15 | 30 | 2900 | 4 | 5.5 |
| CF15-35 | 15 | 35 | 2900 | 4 | 7.5 |
| CF20-20 | 20 | 20 | 2900 | 4 | 3 |
| CF30-20 | 30 | 20 | 2900 | 4 | 7.5 |
| CF30-30 | 30 | 30 | 2900 | 4 | 11 |
