CLH/2 Marine Vertical Two Stage Centrifugal pump

Description: CLH/2 marine vertical two-stage double outlet centrifugal pump, a pump can be used in two working conditions, that is, a high lift working condition, a low ...

Centrifugal Pump1 Photos ISO9001 Supplier

Loading product images...

CLH/2 Marine Vertical Two Stage Centrifugal pump

Category: Centrifugal Pump

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

Description:

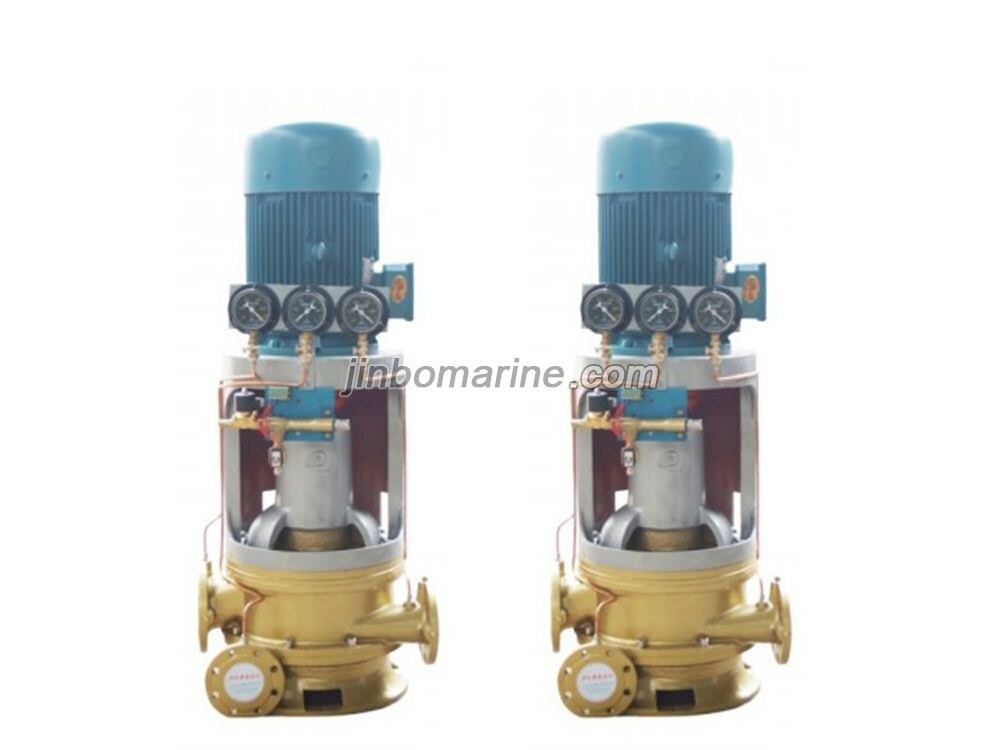

CLH/2 Marine Vertical Two Stage Centrifugal pump

CLH/2 marine vertical two-stage double outlet centrifugal pump, a pump can be used in two working conditions, that is, a high lift working condition, a low lift working condition. Set fire, bilge, ballast, cooling, all in one, suitable for all kinds of ships, naval vessels.

Technical data:

Model	Caliber (mm）	Capacity (m3/h)	Head (m)	Power (kw)	Speed (r/min)	NPSH (m)
40DL(DLR)6-12x2	40	6	24	1.5	1480	3.2
40DL(DLR)6-12x3			36	2.2
40DL(DLR)6-12x4			48	3
40DL(DLR)6-12x5			60	4
40DL(DLR)6-12x6			72	4
40DL(DLR)6-12x7			84	5.5
40DL(DLR)6-12x8			96	5.5
40DL(DLR)6-12x9			108	7.5
40DL(DLR)6-12x10			120	7.5
40DL(DLR)6-12x11			132	7.5
40DL(DLR)6-12x12			144	11
50DL(DLR)12.5-12.5x2	50	12.5	25	2		2.2
50DL(DLR)12.5-12.5x3			37.5	3
50DL(DLR)12.5-12.5x4			50	4
50DL(DLR)12.5-12.5x5			62.5	5.5
50DL(DLR)12.5-12.5x6			75	7.5
50DL(DLR)12.5-12.5x7			87.5	7.5
50DL(DLR)12.5-12.5x8			100	7.5
50DL(DLR)12.5-12.5x9			112.5	11
50DL(DLR)12.5-12.5x10			125	11
65DL(DLR)30-15x2	65	30	30	5.5		2.82
65DL(DLR)30-15x3			45	7.5
65DL(DLR)30-15x4			60	11
65DL(DLR)30-15x5			75	15
65DL(DLR)30-15x6			90	15
65DL(DLR)30-15x7			105	18.5
65DL(DLR)30-15x8			120	22
65DL(DLR)30-15x9			135	22
65DL(DLR)30-15x10			150	30
