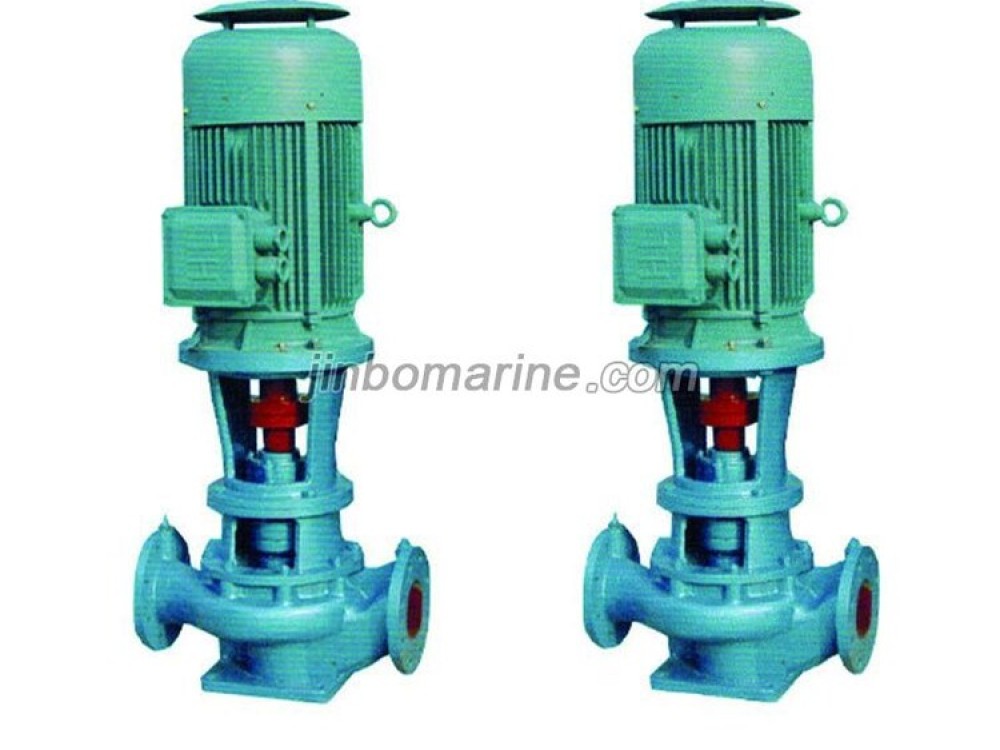

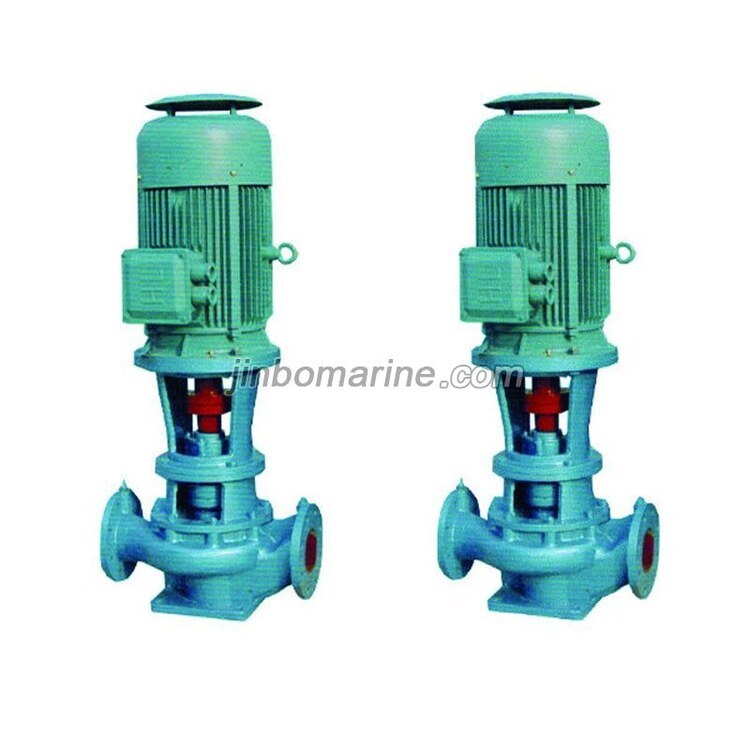

CLT Series Marine Vertical Centrifugal Pump 40CLT-100
CLT series marine vertical centrifugal pump can be used to convey sea water or fresh water or other liquid not exceed 80℃ in temperature. They can also be used to deliver ballast tank water ...
CLT Series Marine Vertical Centrifugal Pump 40CLT-100
PDF Datasheet
We can supply according to your requirement.
China CLT Series Marine Vertical Centrifugal Pump 40CLT-100:
CLT series marine vertical centrifugal pump can be used to convey sea water or fresh water or other liquid not exceed 80℃ in temperature. They can also be used to deliver ballast tank water of the boats and ships serve the purpose of cooling, fire control,life water etc. According to the user needs CLTR series marine vertical centrifugal pump can supply the hot water pump that don't exceed 130℃ in temperature. CLTY series marine vertical oil centrifugal pump major used to shipping deliver clean oil, it can deliver light diesel oil, petrol and other chemical products similar in physical and chemical, as for combustible dangerous medium should choose spark-proof motor or use bulkhead measure to ensure production safely.
| Main Technical Data | ||||
| Model | Flow rate Q m³/h | Lift H (m) | Rev speed r/min | Motor power (KW) |
| 40CLT-100 | 4.5/5.6/6.66 | 12.8/10/8 | 2900 | 0.75 |
| 40CLT-100J | 2.25/2.8/3.33 | 3.2/2.5/2 | 1450 | 0.55 |
| 40CLT-125 | 4.5/5.6/6.66 | 19.5/16/14.4 | 2900 | 0.75 |
| 40CLT-125J | 2.25/2.8./3.33 | 4.9/4/3.6 | 1450 | 0.55 |
| 40CLT-160 | 4.5/5.6/6.66 | 30.5/28/26.3 | 2900 | 1.1 |
| 40CLT-160J | 2.25/2.8/3.33 | 7.5/7/6.6 | 1450 | 0.55 |
| 40CLT-200 | 4.5/5.6/6.66 | 49/46.5/42 | 2900 | 3 |
| 40CLT-200J | 2.25/2.8/3.33 | 12.2/11.6/10.5 | 1450 | 0.55 |
| 50CLT-125 | 6.2/10.4/12.5 | 15.2/13.8/12.8 | 2900 | 1.1 |
| 50CLT-125J | 3.1/5.2/6.2 | 3.7/3.5/3.2 | 1450 | 0.55 |
| 50CLT-160 | 5.4/9/10.8 | 17.9/16.7/15.4 | 2900 | 1.5 |
| 50CLT-160J | 2.7/4.6/5.4 | 4.4/4.2/3.9 | 1450 | 0.55 |
| 50CLT-200 | 6.5/10.9/13 | 39.6/37.7/36.2 | 2900 | 4 |
| 50CLT-200J | 3.3/5.5/6.5 | 13.1/12.5/12 | 1450 | 0.55 |
| 50CLT-250 | 6.0/10.0/12.0 | 52.5/51.5/50.2 | 2900 | 5.5 |
| 50CLT-250J | 3.0/5.0/6.0 | 13.1/12.8/12.5 | 1450 | 0.75 |
| 65CLT-125 | 11.3/18.9/22.6 | 12.4/11.4/10.5 | 2900 | 1.5 |
| 65CLT-125J | 5.7/9.4/11.3 | 3/2.8/2.7 | 1450 | 0.55 |
| 65CLT-160 | 12/20.1/24.1 | 22.5/20.6/19.3 | 2900 | 3 |
| 65CLT-160J | 6.0/1.0/12.0 | 5.7/5.2/4.6 | 1450 | 0.55 |
| 65CLT-200 | 12.8/21.3/25.5 | 38.3/36.1/34 | 2900 | 5.5 |
| Alao have bigger pumps, pls contact us for more information. | ||||
