HBBA Booster Brake Valve Assembly
HBBA Booster Brake Valve Assembly Principle : Structure Monoblock Control method Proportional pressure reducing Port connection Threaded N...
Loading product images...
HBBA Booster Brake Valve Assembly
PDF Datasheet
We can supply according to your requirement.
China HBBA Booster Brake Valve Assembly:

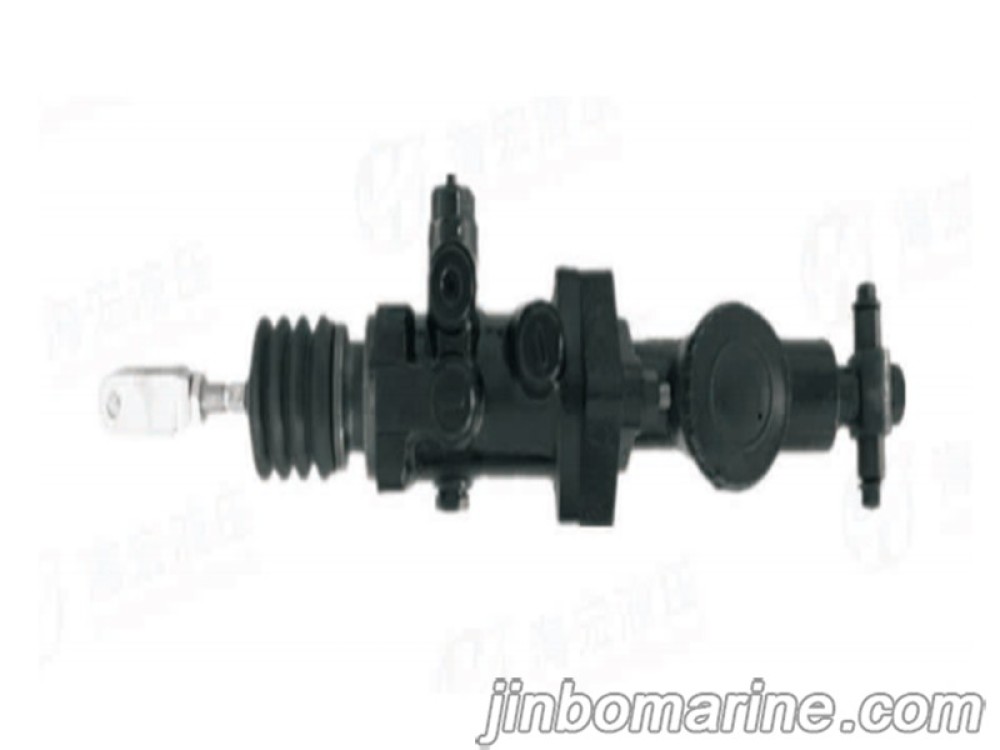

HBBA Booster Brake Valve Assembly

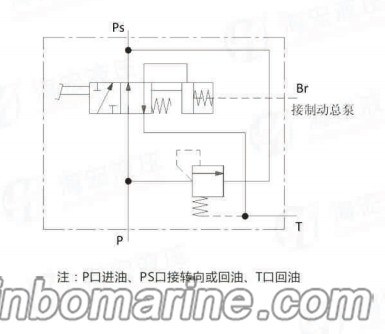

Principle :
| Structure | Monoblock | ||||
|---|---|---|---|---|---|
| Control method | Proportional pressure reducing | ||||
| Port connection | Threaded | ||||
| Nominal diameter | 10mm | ||||
| Weight | 3.2kg | ||||
| Boost pressure | 40bar | ||||
| Nominal pressure | 12bar | ||||
| Max. allowable return back pressure | 15bar | ||||
| Hydraulic oil temperature range | -20 ~ +100°C | ||||
| Viscosity range | 10 ~ 380 mm2/s | ||||
| Permissible fluid contamination class | -/19/16 (ISO 4406:1999) |

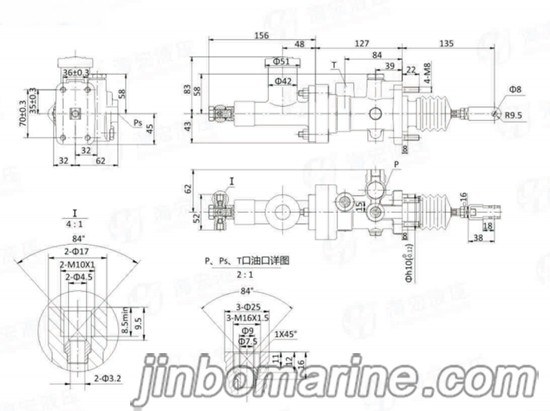

Size :
