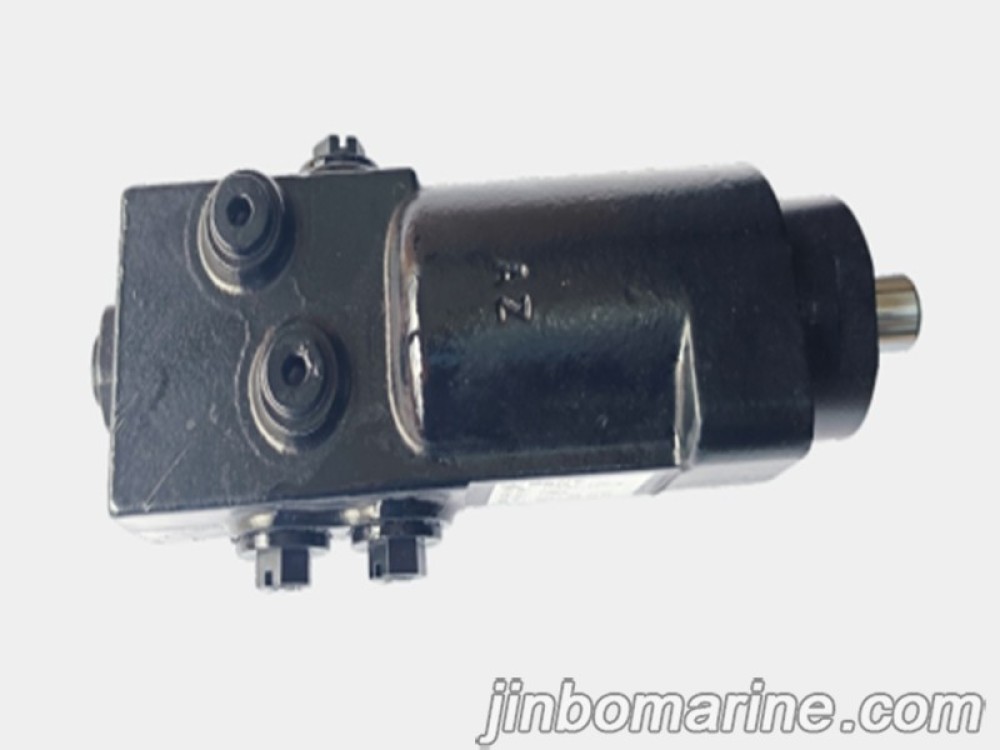

PDF27 Single‑Circuit Brake Valve
The single‑circuit hydraulic brake valve adopts the principle of a direct‑acting three‑way pressure reducing valve. The brake pressure is proportional to the stroke of the operating control element or the stroke angle of the pedal, and the operating force is also proportional to the stroke of the actuator. The foot‑operated valve features an ergonomic angle for easy and effortless operation. All pedals are equipped with anti‑slip function.

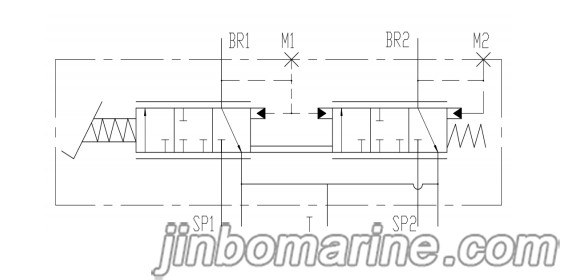

Principle :
| Max. Pressure at Port P | 20 MPa | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Max.Braking Pressure at Port A | 12 MPa | ||||||||
| Return‑line Back Pressure | ≤ 0.5 MPa | ||||||||
| Viscosity Range | 10‑380 mm²/s | ||||||||
| Temperature Range | ‑20 ℃ ~ 100 ℃ | ||||||||
| Oil Fluid Cleanliness | The solid‑particle contamination level of oil fluid and system shall not exceed GB/T 14039‑2002‑/19/16 or NAS 1638 Class 10. | ||||||||
| Approximate Weight | 2.3Kg | ||||||||
