Pilot Ladder
It is used to enable passengers and crew to embark on ship or disembark from lifeboats during an emergency. In accordance with the 2000 Amendments to SOLAS 1974 and LSA. The l...
Loading product images...
PDF Datasheet

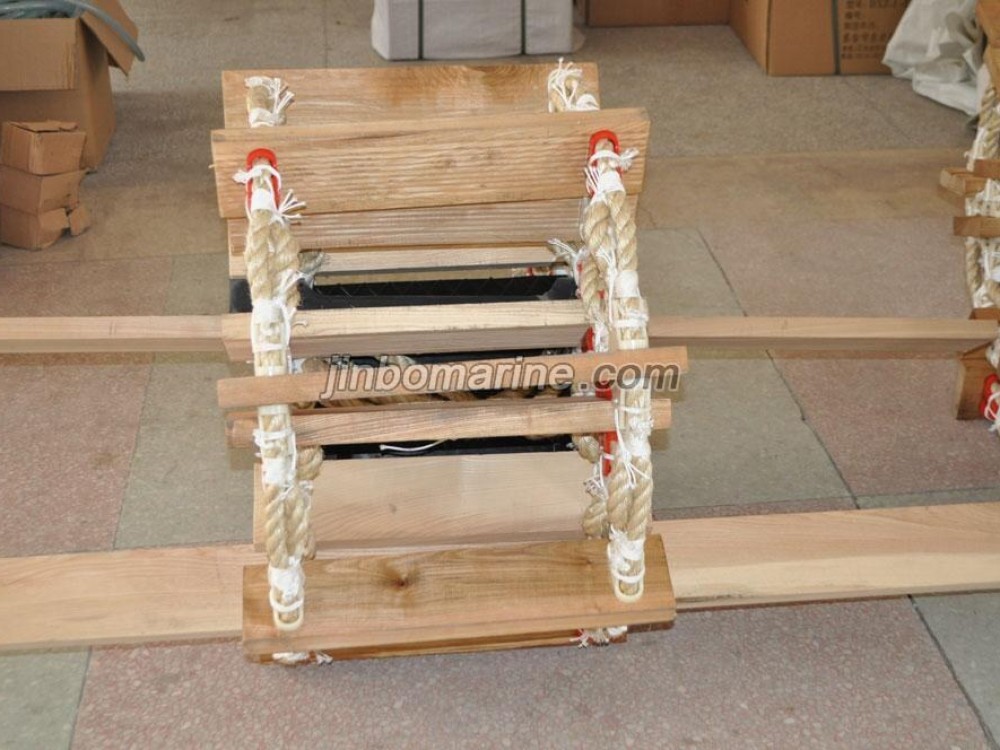

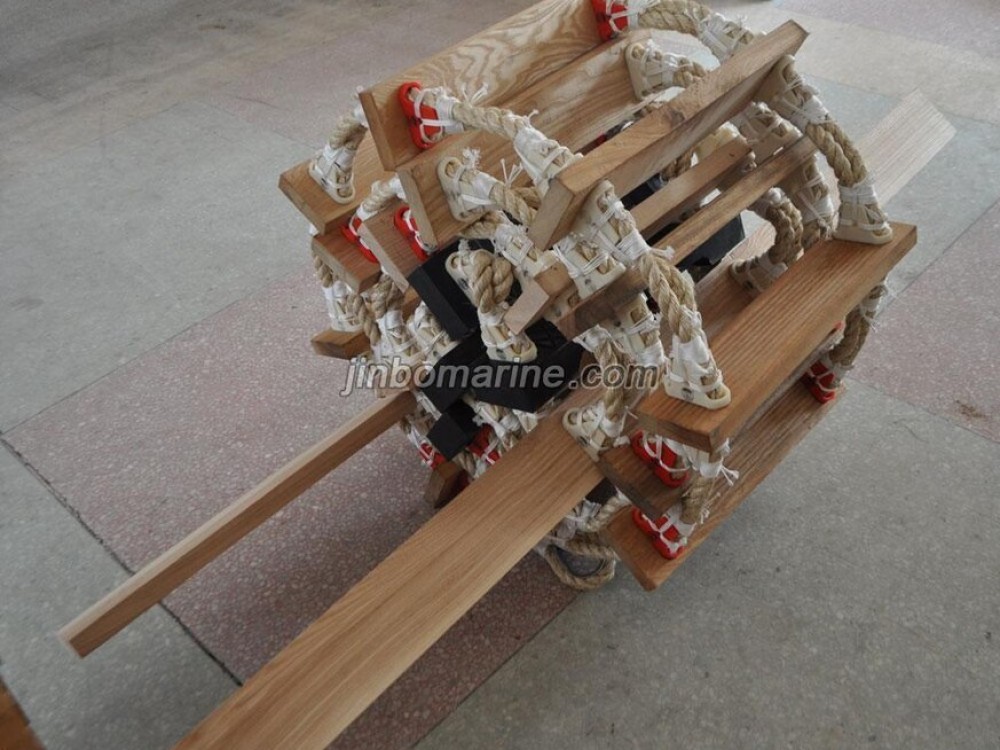

China Pilot Ladder:
It is used to enable passengers and crew to embark on ship or disembark from lifeboats during an emergency.
In accordance with the 2000 Amendments to SOLAS 1974 and LSA.
The lowest 4 steps are rubber plates with steel lining; The count-down fifth plate is spreader step, and there are 8 short boards between two neighboring spreader steps; The distance between two neighboring steps:310 ±5 mm.
We can offer Pilot Rope Ladder and Embarkation Rope Ladder.
Rope Ladder Thimble,Wood Step and Rubber Plate are available
| Name | Size (mm) | Aperture Size(mm) | Material | |
| Long board | Short board | |||
| Pilot’ s Rope Ladder | 525×115×28(Flat board) | 1800×115×28 | 25mm | Willow |
| 525×115×(30~38) 525×115×(30~60) (Slotting board) | ||||
| Embarkation Rope Ladder | 525×115×28(Flat board) | 1800×115×28 | 25mm | Willow |
| 525×115×(30~38) 525×115×(30~60) (Slotting board) | ||||
