China Belt Fall Arrester:

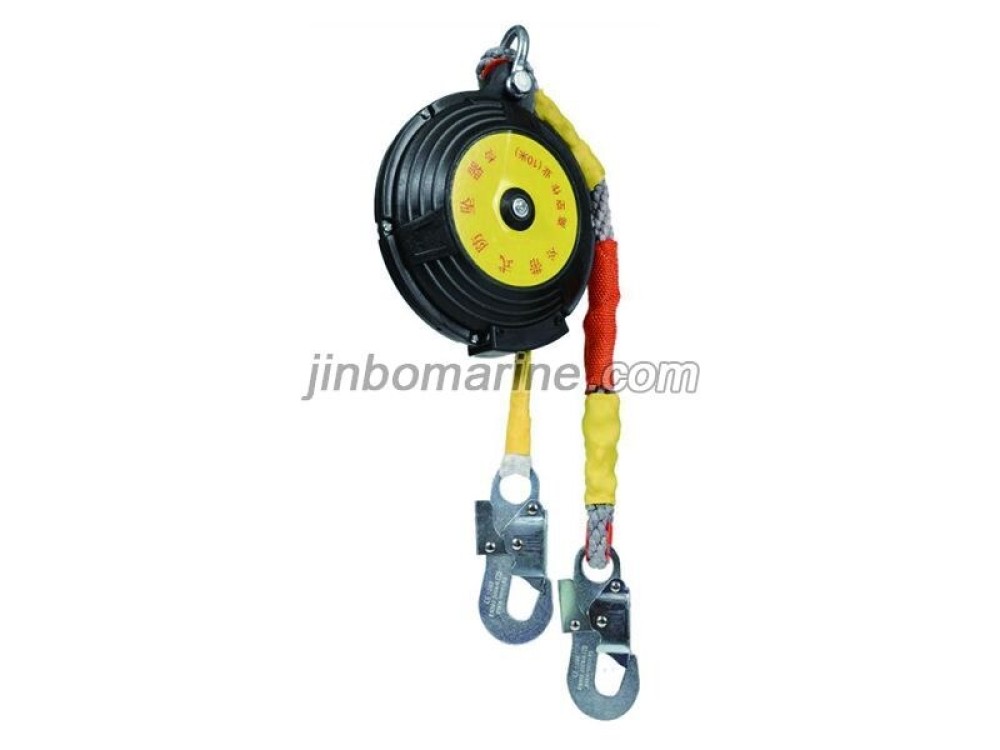

Belt Fall Arrester
Product features: 1. plastic shell reduces weight; 2. side pull-out ofwebbing reduces wear andtear of webbing andmakes use of it more smoothly.Material: extension length is 3m-20m, width of webbing isnot less than 25mm, minimum breakingforce is 18KN, tophanging point connection is stainless steel. The end of thesteel wire rope of theuniversal ring is provided with a rotat-able device, a safety hook with a falling indicator and abufferhandle.
| SCOPE OF ACTIVITIES(m) | 3 | 5 | 7 | 10 | 15 | 20 | |
| LOCKING CRITICAL SPEED(M/S) | 1 | ||||||
| MAXIMUM WORKLOAD(KG) | 150 | ||||||
| LOCKING DISTANCE(M) | ≤0.2 | ||||||
| OVERALL DESTRUCTIVE LOAD(N) | ≤8900 | ||||||
| WEIGHT(KG) | 0.75 | 1.5 | 1.8 | 1.86 | 3.25 | 4.1 | |
