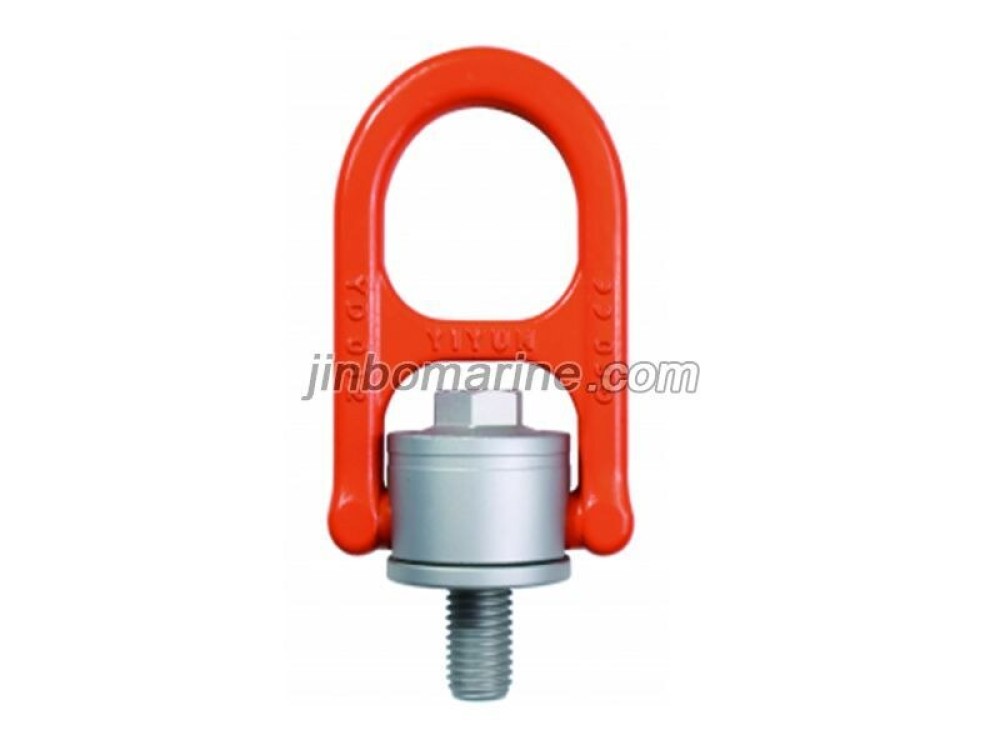

BLT082 Heavy Duty Hoist Ring

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China BLT082 Heavy Duty Hoist Ring:

BLT082 Heavy Duty Hoist Ring

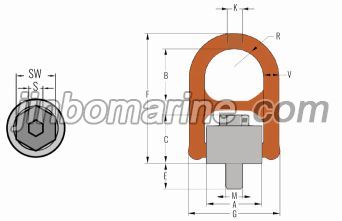

Metric Thread:

ITEM NO. WLL/T M Dimensional Parameters/mm Locking Torque /Nm Kg
E A B C F G V R S SW K
BLTO82-M8 0.5 M8x1.25 12 33 35 30 86 56 10 17.5 6 13 10 10 0.3
BLTO82-M10 0.7 M10x1.5 15 33 35 30 86 56 10 17.5 6 13 10 10 0.3
BLTO82-M12 1 M12x1.75 20 33 35 30 86 56 10 17.5 6 13 10 15 0.3
BLT082-M14 1.5 M14x2.0 21 50 55 44 130 85 14 27 8 19 13 30 1
BLTO82-M16 2 M16x2.0 24 50 55 44 130 85 14 27 8 19 13 50 1
BLT082-M18 2.5 M18x2.5 26 65 66 58 162.5 109 18 34.5 10 27 16 70 2
BLT082-M20 3 M20x2.5 30 65 66 58 162.5 109 18 34.5 10 27 16 100 2
BLTO82-M22 4 M22x2.5 33 65 66 58 162.5 109 18 34.5 10 27 16 100 2
BLT082-M24 5 M24x3.0 36 65 66 58 162.5 109 18 34.5 10 27 16 160 2
BLT082-M27 5.6 M27x3.0 38 87 80 76.5 218 150 27 45.5 14 34 25 200 5.5
BLTO82-M30 7.8 M30x3.5 48 87 80 76.5 218 150 27 45.5 14 34 25 500 5.6
BLTO82-M36S 9 M36x4.0 54 87 80 76.5 218 150 27 45.5 14 34 25 500 5.7
