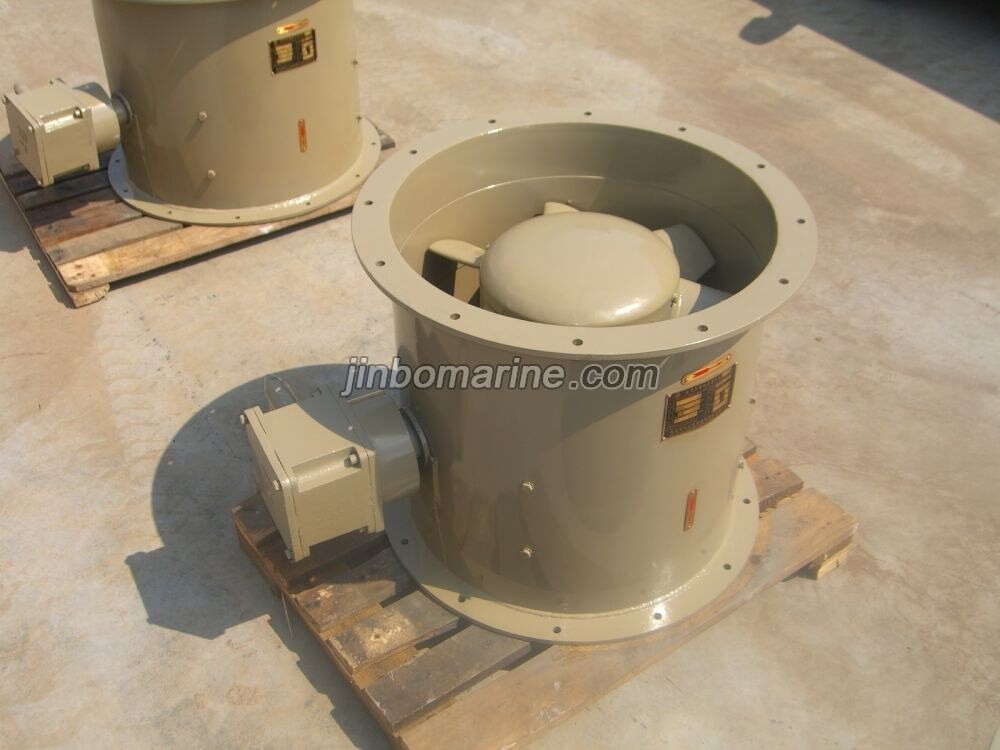

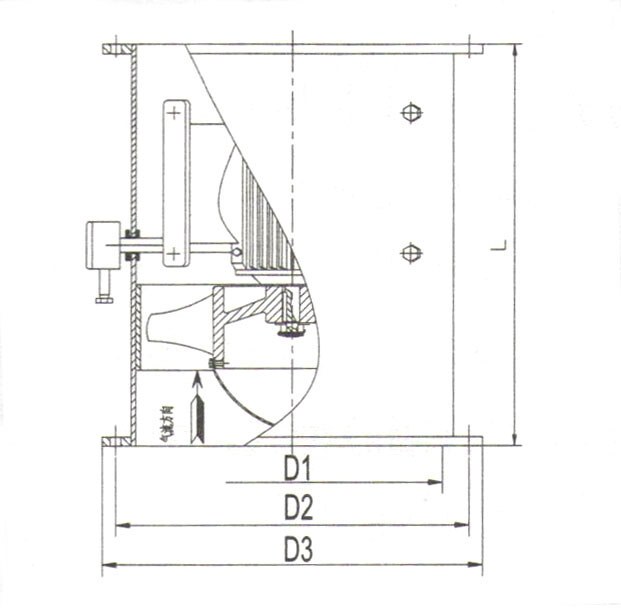

CBZ Marine Explosion Proof Axial Fan (Duct Type/Type II)

General:

CBZ seriesmarine explosion proof axial fanis designed and manufactured according to GB11800-89 (marine explosion proof axial flow fan), and genearal description and explosion proof electrical equipment "d" of GB3836-83 (electrical apparatus for explosive atomsphere) and Regulations for the Contrustion and classification of sea-going steel shipes.

Application:

It can be used to delivery the gas mixtures or vapour containing combustibles and explosives, ordinary air, sea air containing salt fog, air containing oil fog and other corrupt air supply or extraciton.

This kind of explosion proof fan is suitable to pump out gas mixtures or vapour containing combustibles and explosives in oil tank,cargo tank, pump room,battery cabin,ammunition cabin,hangar,paint house, etc. It also can be used for ventilation of other compartments of shipping and corresponding place on the land.

The fan can be with AC 50HZ,380V or 60HZ, 440V, marine three-phase asynchronous motor.

Structural Types:

Type I-Deck type,with a hood and an explosion proof motor installed on the top of the machine frame, and a wide mesh cover 2mesh/sq in.The fan is vertically fixed on the deck. It may be used for pumping or sending air.

Type II-Duct Type, without hood,built-in type explosion proof motor is mounted on the housing by the down stream guide vane.It can be installed vertically or horizontally, and also can be installed on the deck.

According to the customer's special requirement, the fan can be made into type III, type IV, type V. The fan and the motor are put in different cabins, with a driving device, and sealed box and flexible couplings. It is used primarily for exhaust of dangerous compartment.

Type III can be installed horizontally, type IV and type V can be vertically fixed on the deck.

Features:

1.Explosion proof, safe, reliable in operation.

2.Well anticorrosive.

3. Strongly capable of resisting vacillation,vibration and shocking.

Main Parameter:

Model Folw rate Total pressure Pa Static pressure Pa speed Motor Weight
m3/h r/min Freq Hz Power kw Type
CBZ-30A 1200 250 230 2920 50 0.75 YB80L1-2-H 83 58
1800 170 140
1400 360 330 3500 60
2100 240 200
CBZ-30B 1000 230 220 2920 50 84 59
1200 150 140
1200 330 320 3500 60
1400 220 200
CBZ-35A 3000 360 320 2920 50 1.1 YB80L2-2-H 92 66
4500 240 140
3600 520 460 3500 60
5400 340 200
CBZ-35B 1800 360 340 2920 50 91 65
3000 220 180
2100 510 490 3500 60
3600 330 270
CBZ-40A 4500 550 490 2920 50 2.2 YB90L-2-H 97 80
6000 470 370
5400 800 710 3500 60
7200 680 530
CBZ-40B 3000 490 460 2920 50 96 79
4500 380 320
3600 710 670 3500 60
5400 540 460
CBZ-50A 6000 210 170 1460 50 1.1 YB90S-4-H 99 91
7200 300 240 1750 60
CBZ-50B 6000 640 600 2920 50 3 YB100L-2-H 111 103
9000 560 460
7200 920 860 3500 60 4 YB112M-2-H 119 120
10000 790 670
CBZ-50C 9000 750 650 2920 50 4 YB112M-2-H 119 120
12000 630 460
10000 1060 940 3500 60 5.5 YB132 S1-2-H 143 135
14000 890 660
CBZ-60 9000 260 220 1460 50 2.2 YB100L1-4-H 140 130
12000 220 140
10000 380 320 1750 60
14000 310 200
CBZ-70A 12000 410 370 1460 50 3 YB100L2-4-H 218 205
15000 350 280
18000 280 180
14000 590 530 1750 60 4 YB112M-4-H 229 216
18000 500 400
21000 410 280
CBZ-70B 9000 390 370 1460 50 2.2 YB100L1-4-H 216 170
12000 270 230
15000 210 140
10000 560 530 1750 60 3 YB100L2-4-H 218 205
14000 390 330
18000 300 200
CBZ-75 15000 510 460 1460 50 4 YB112M-4-H 240 195
18000 440 370
21000 320 220
24000 270 140
18000 730 660 1750 60 7.5 YB132M-4-H 267 252
21000 630 530
25000 470 320
28000 380 200
CBZ-80A 21000 640 560 1460 50 7.5 YB132M-4-H 255 240
24000 560 460
27000 500 370
30000 370 210
25000 910 800 1750 60 11 YB160M-4-H 308 293
28000 800 660
32000 720 530
36000 550 310
CBZ-80B 18000 520 460 1460 50 5.5 YB132S-4-H 240 225
21000 450 370
24000 380 280
27000 290 160
21000 740 660 1750 60 7.5 YB132M-4-H 255 240
25000 640 530
28000 540 400
32000 420 230
CBZ-90A 24000 660 600 1460 50 7.5 YB132M-4-H 283 265
27000 540 460
30000 470 370
33000 330 210
28000 950 860 1750 60 11 YB160M-4-H 336 318
32000 770 660
36000 680 530
40000 480 300
CBZ-90B 27000 730 650 1460 50 11 YB160M-4-H 336 318
30000 660 560
33000 580 460
36000 520 370
32000 1060 940 1750 60 15 YB160L-4-H 354 336
36000 950 800
40000 840 660
48000 760 530
CBZ-90C 30000 840 740 1460 50 15 YB160L-4-H 354 336
33000 770 650
36000 660 510
36000 1220 1070 1750 60 18.5 YB180M-4-H 408 390
39000 1100 930
43000 940 730
CBZ-100A 42000 685 545 1460 50 15 YB160L-4-H 365 345
48000 625 450
54000 585 350
50000 985 780 1750 60 22 YB180L-4-H 470 450
57000 900 645
60000 840 500
CBZ-100B 36000 840 745 1460 50 15 YB160L-4-H 365 345
39000 795 695
43000 1205 1070 1750 60 22 YB180L-4-H 470 450
46000 1140 1000
CBZ-100C 39000 545 505 1460 50 11 YB160M-4-H 350 330
42000 490 450
48000 430 390
46000 780 725 1750 60 15 YB160L-4-H 365 345
50000 705 645
57000 620 560
CBZ-100D 36000 300 205 970 50 7.5 YB160M-6-H 350 330
39000 255 155
43000 430 290 1160 60 11 YB160L-6-H 365 345
46000 365 220
CBZ-110A 42000 550 460 970 50 15 YB180L-6-H 570 545
48000 490 370
54000 450 300
60000 380 200
50000 790 660 1160 60 18.5 YB200L1-6-H 575 550
57000 700 530
65000 650 430
72000 550 290
CBZ-110B 42000 310 220 970 50 7.5 YB160M-6-H 351 326
48000 260 140
50000 450 320 1160 60 11 YB160L-6-H 475 350
57000 370 200
CBZ-110C 42000 830 740 1460 50 18.5 YB180M-4-H 530 500
48000 770 650
54000 710 560
50000 1190 1060 1750 60 30 YB200L-4-H 610 585
57000 1110 940
65000 1020 800
CBZ-120A 60000 390 280 280 970 15 YB180L-6-H 700 665
72000 320 150 150
72000 560 400 400 1160 18.5 YB200L1-6-H 705 670
86000 460 215 215
CBZ-120B 60000 600 470 470 970 18.5 YB200L1-6-H 705 670
72000 560 370 370
84000 480 230 230
72000 860 670 670 1160 30 YB225M-6-H 845 810
86000 800 530 530
10000 690 330 330
CBZ-140A 72000 660 560 560 970 22 YB200L2-6-H 950 900
84000 560 460 460
96000 470 320 320
86000 940 800 800 1160 30 YB225M-6-H 1068 1018
100000 800 660 660
115000 670 460 460
CBZ-140B 96000 470 320 320 970 22 YB200L2-6-H 950 900
115000 370 225 225
115000 670 460 460 1160 30 YB225M-6-H 1068 1018
138000 530 320 320
