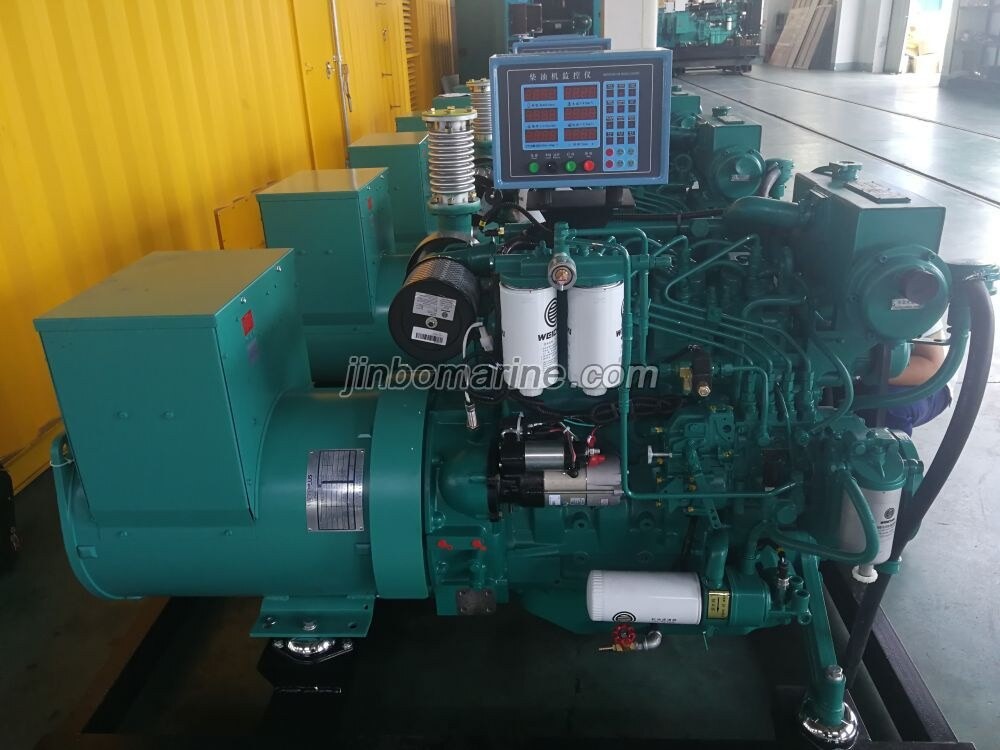

CCFJ75J-W 75KW Weichai Marine Generator Set
- Category:Marine Generator
- Material:Steel
- Standards:GB/T13032-1991
- Certificate:CCS, BV, RMRS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
STANDARD SPECIFICATION:
Coupled with Weichai diesel engine and Marathon alternator
24V DC start motor
Brush-less, Self-excited, IP23, insulation class H alternator
ENGINE SPECIFICATION:
Weichai Diesel Engine
Technical Data
|
Engine Model |
WP4CD100E200 |
|
Number of Cylinders |
4 cylinders in line |
|
Cycle |
4 stroke |
|
Aspiration |
Turbocharged and after-cooled |
|
Bore×Stroke |
105 x 130 mm |
|
Displacement |
4.5 L |
|
Prime Power / speed |
90KW / 1500rpm |
|
Speed Governor |
Mechanical |
|
Cooling System |
By heat ex-changer |
|
Fuel Consumption at 100% Load |
197 g/kw.h |
|
Starter Motor |
DC24V, |
Alternator SPECIFICATION:
Marathon Alternator
Technical Data
|
Alternator Model |
MP-H-75-4 |
|
Prime power |
75KW |
|
Frequency/speed |
50HZ / 1500rpm / 400 V |
|
Exciter type |
Brush-less, Self-excited |
|
Power factor |
0.8 |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
|
Phase / wire |
3 phase 3 wires |
Control System:
Model: QCJK-1/JF
＊Microcomputer digital control, and reliable work;
＊Digital display of parameters of diesel engine,
＊Modularization of functional configuration, and integration of product structures;
＊Resistance to vibration, humidity, salt mist and high/low temperature;
＊Powerful ability to resist interference, convenient installation and use, and high performance-price ratio;
＊Automatic zero set of lubricating oil pressure
＊Accumulation of running period of diesel engine.
