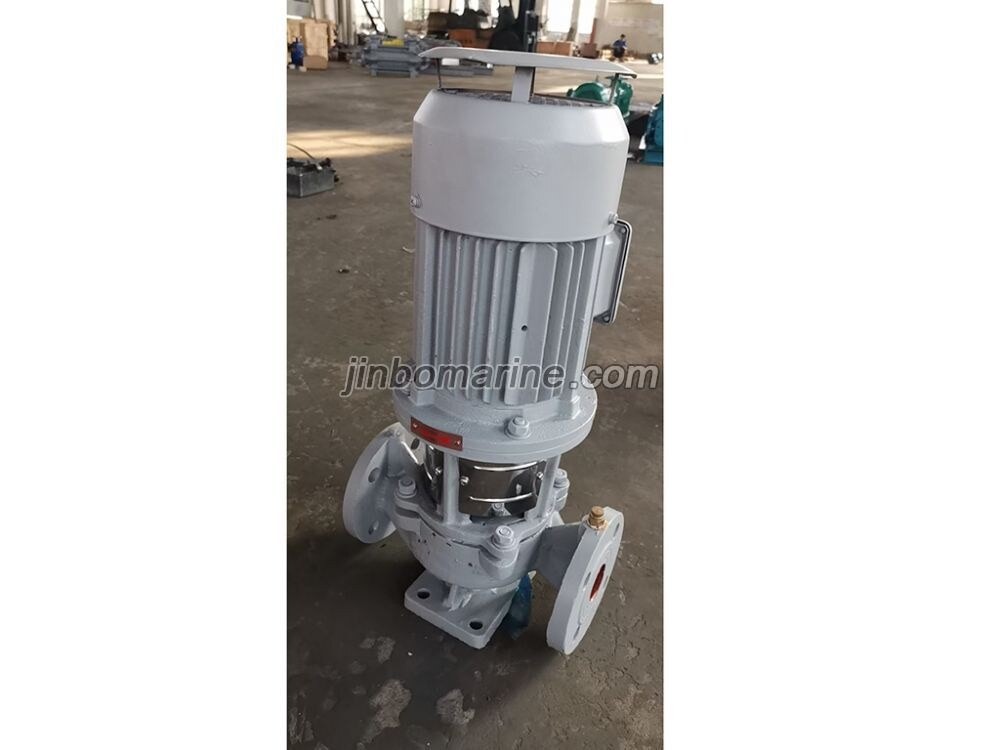

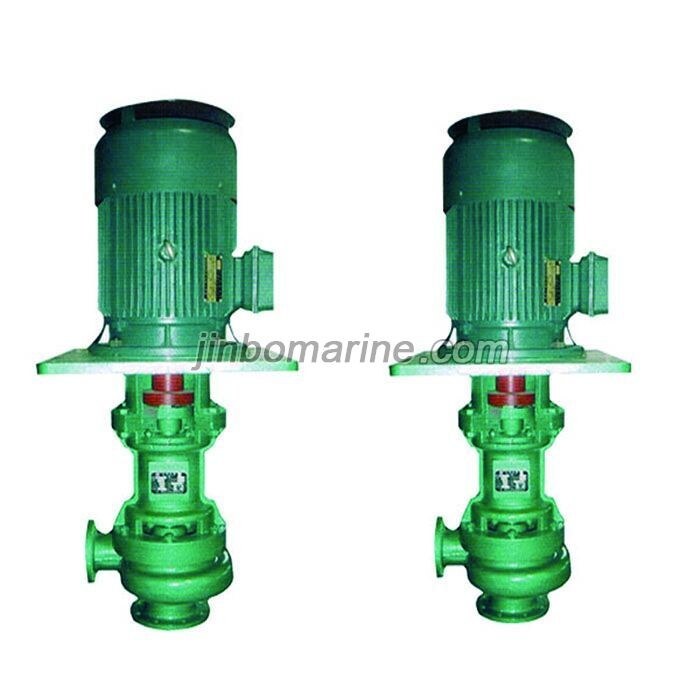

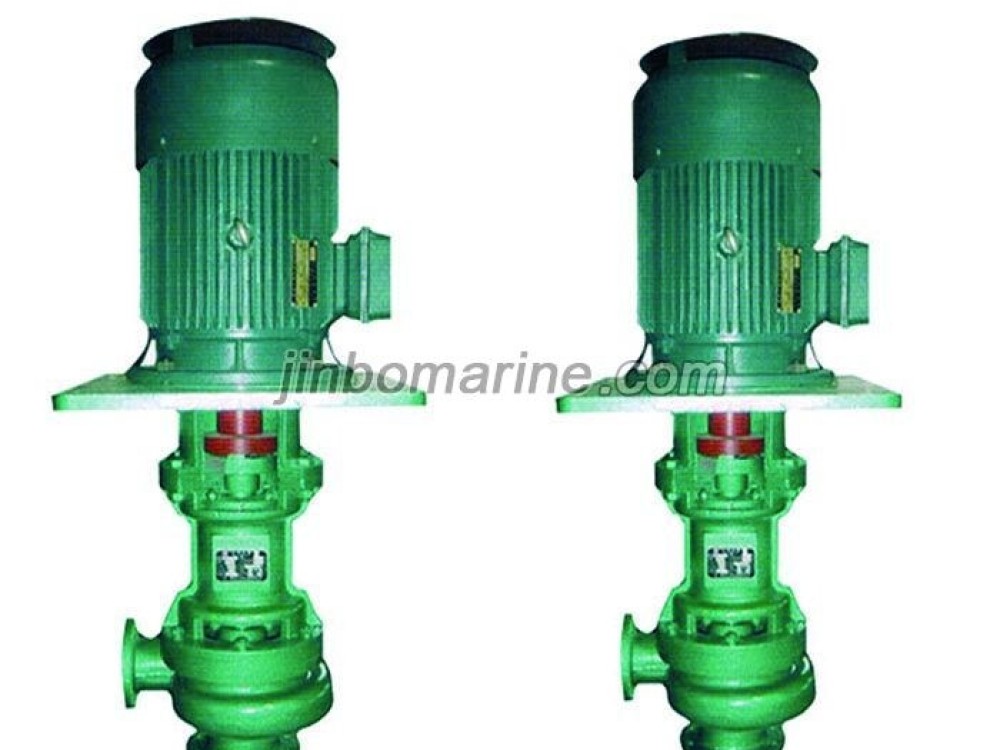

CL Series Marine Vertical Centrifugal pump 80CL-65

Request a Quote Not what you need, please send your RFQs via Email.

Details

China CL Series Marine Vertical Centrifugal pump 80CL-65:

CL series marine vertical centrifugal pump can be used to deliver ballast tank water of boats and ships, or to cool,control fire. They can also convey sea water, fresh water and other liquids that do not exceed 70℃ and do not have obvious corrosion.

Main Technical Data:

Datasheet 1.0

Model Flow rate
Q
m³/h
Lift
H
(m)
Rev
speed
r/min
Motor
power
(KW)
40CL-42 15 42 2890 4
40CL-42A 12 40 2880 3
40CL-50 10 50 2890 4
40CL-50A 8 45 2880 3
40CL-60 10 60 2890 4
40CL-60A 8 55 2880 3
50CL-30 20 30 2890 4
50CL-30A 18 24.5 2880 3
65CL-45 30 45 2900 7.5
65CL-45A 27 37 2900 5.5
65CL-65 25 65 2930 15
65CL-65A 21 58 2930 11
80CL-30 50 30 2900 7.5
80CL-30A 45 25 2900 5.5
80CL-35 50 35 2900 7.5
80CL-65 50 65 2930 18.5
80CL-65A 46 56 2930 15
80CL-65B 40 50 2930 11
100CL-30 100 30 2930 15
100CL-30A 90 24.5 2930 11
100CL-45 100 45 2940 22
Alao have bigger pumps, pls contact us for more information.

Datasheet 2.0

Model Capacity Head Speed (NPSH)r
Net Positive Suction Head
Power Weight
m3/h m r/min m kW Kg
4CLG-12 90 30 2800 5 14 100
25CL-30 3.6 30 2950 3.5 1.1 57
50CL-30 20 30 2950 3 4 105
50CL-30A 18 24.5 2950 3 3 94
65CL-45 30 45 2950 3 7.5 160
65CL-45A 27 37 2950 3 5.5 138
65CL-65 25 65 2950 5 11 220
80CL-30 50 30 2950 3.5 7.5 160
80CL-30A 45.5 25 2950 3.5 5.5 137
80CL-35 50 35 2950 4 7.5 162
80CL-65 50 65 2950 4.5 18.5 285
80CL-65A 46.5 56 2950 4.5 15 252
80CL-65B 44 50 2950 4.5 15 246
100CL-30 100 30 2950 4.5 15 262
100CL-30A 90 24.5 2950 4.5 11 242
100CL-45 100 45 2950 4 22 311
100CL-45A 90 36.5 2950 4 15 240
100CL-85 100 85 2950 4.5 45 565
100CL-85A 92.5 73 2950 4.5 37 550
100CL-85B 87 64 2950 4.5 30 545
150CL-30 162 30 2950 4.5 22 315
150CL-30A 148 25 2950 4.5 18.5 295
200CL-30 300 30 1450 4 37 589
200CL-30A 262 23.5 1450 4 30 502
250CL-25 486 25 1450 5 45 961
250CL-25A 443 20 1450 5 37 930
300CL-30 792 30 1450 6 90 1471
300CL-30A 720 25 1450 6 75 1366
