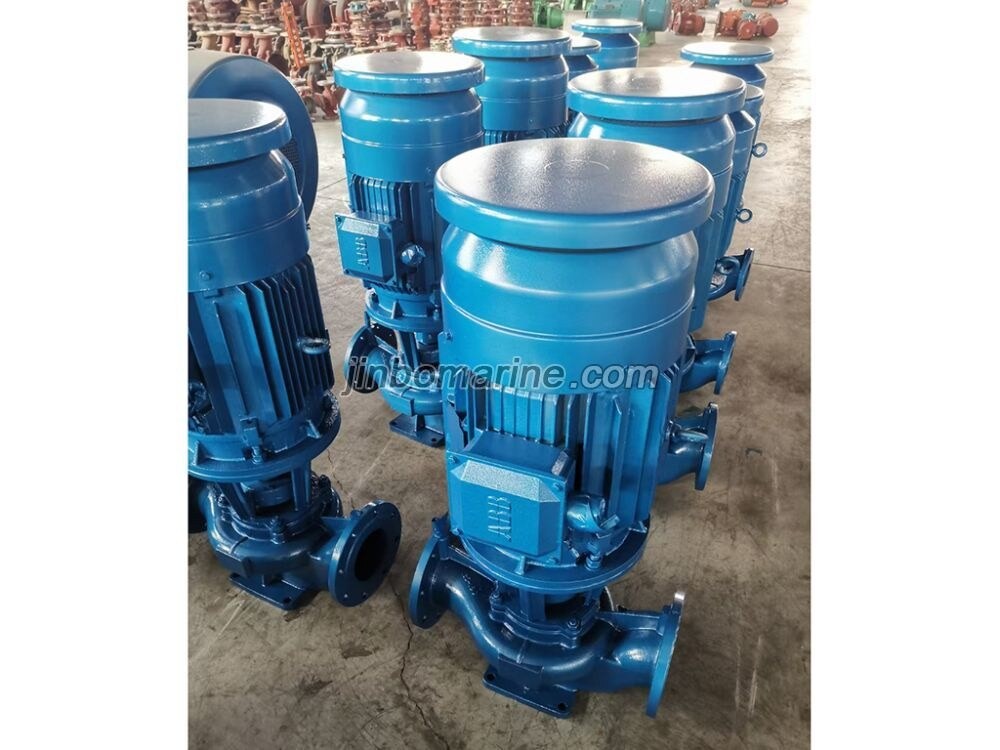

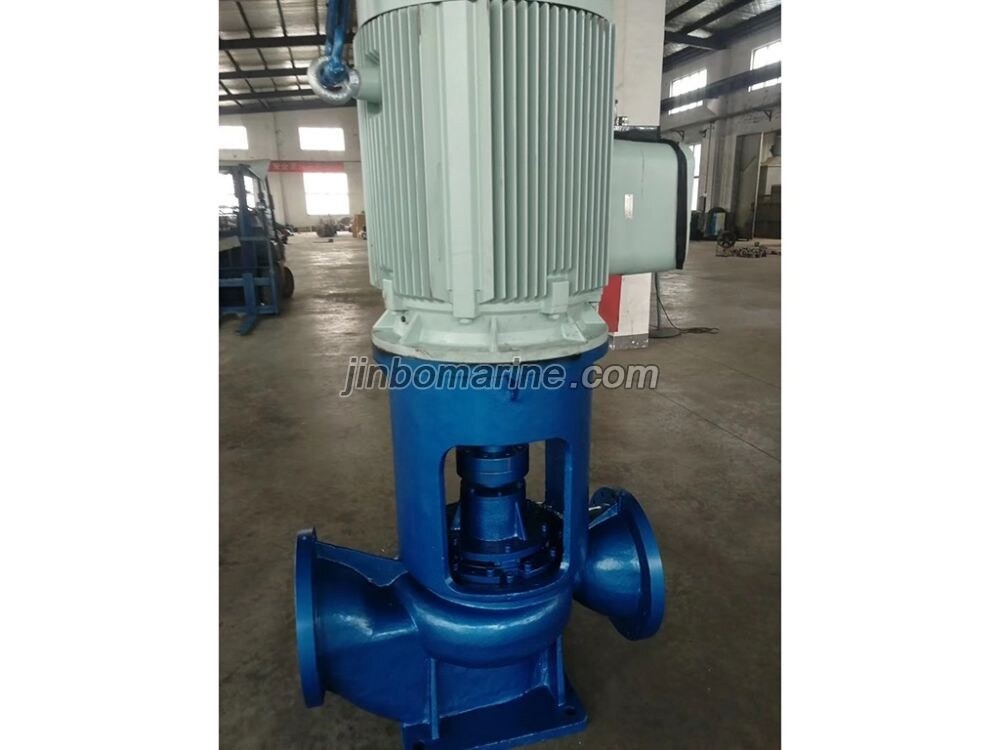

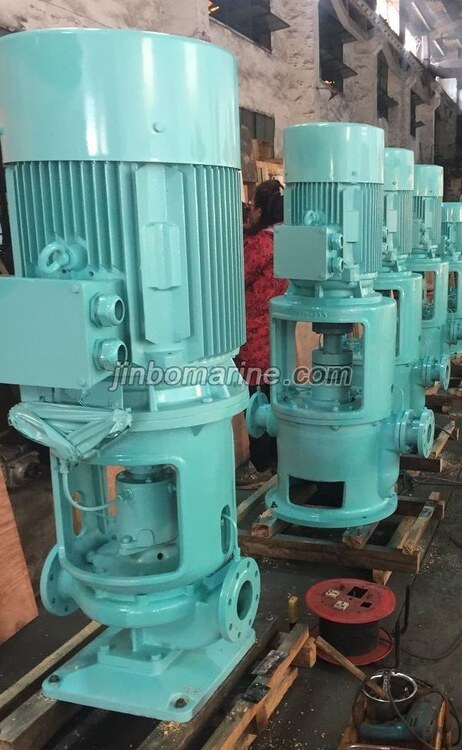

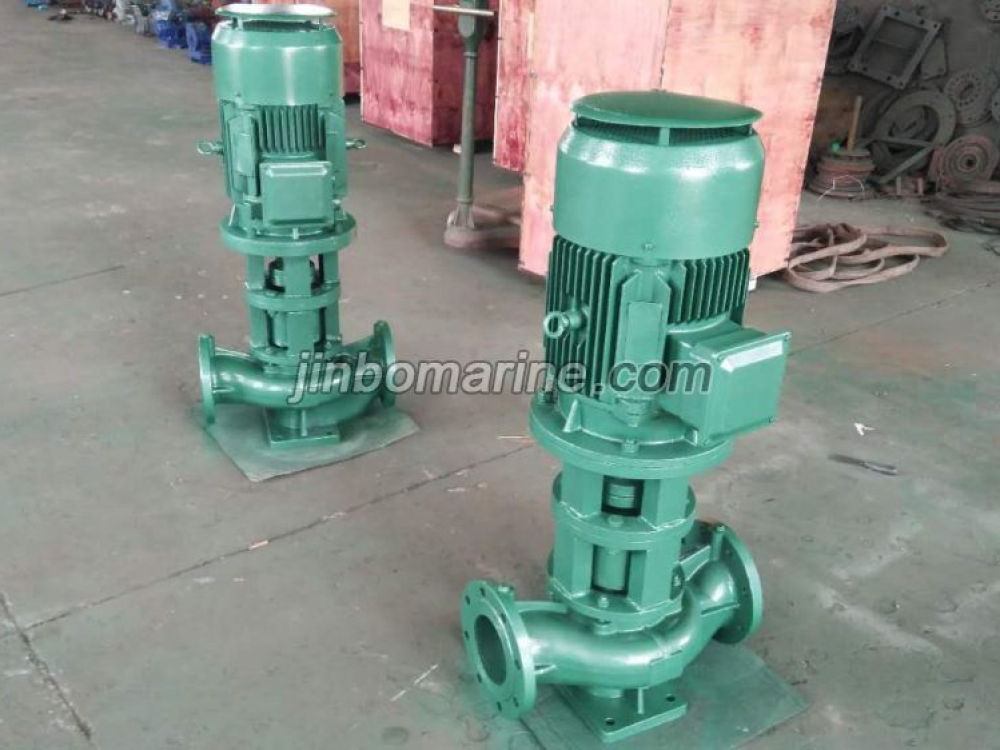

CLH Series Marine Vertical Centrifugal Ballast Bilge Fire General Service pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

CLH Series Marine Vertical Centrifugal Ballast Fire General Service pump

CLH series vertical centrifugal marine pump used in all kinds of shipping and warship for ballast pump, bilge pump, coolant pump, drainage pump and fire pump. It also used as necessary feed pump for seawater desalting device and various tank equipument,and the booster pump for petroleum and chemical industry pipelines, cold and hot water circulating system and high-rise building living water supply system.

Model Explanation

  • CLH25-25-6.5
  • CLH-Marine vertical sea water pump
  • 25-Inlet diameter 25mm
  • 25-Outlet diameter 25mm
  • 6.5-Pump speed divided 10

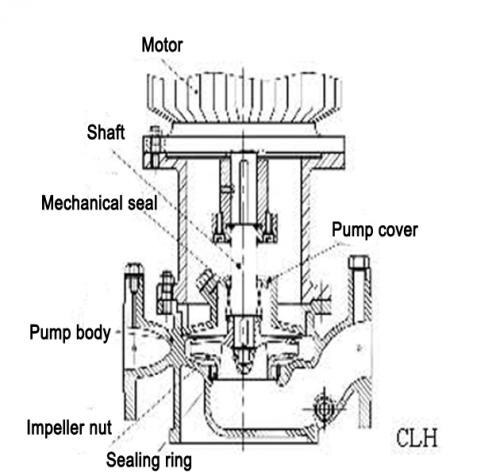

Structural Specification

Main Specification

Type Capacity Head NPSH Efficiency Shaft power Speed Motor type power
(m3/h) (m) (m) (%) (kw) (r/min) (kw)
CLH25-25-6.5 3 8 4 45 0.15 2800 0.37AO2-711-2H(V1)
CLH25-25-6.5A 2.7 6.5 4 45 0.11
0.37AO2-711-2H(V1)
CLH40-32-2 5 45 4 29 2.11 2950 3Y100L-2H(V1)
CLH40-32-2.5 10 60 4 38 4.3 2950 5.5Y132S1-2H(V1)
CLH40-32-3 10 45 4 44 2.8 2950 4Y112M-2H(V1)
CLH40-32-3.5 5 25 4 48 0.71 2950 1.5Y90S-2H(V1)
CLH40-32-5 10 25 4 40 1.7 2950 2.2Y90L-2H(V1)
CLH50-32-2 12.5 80 2.5 36 7.6 2950 11Y160M1-2H(V1)
CLH50-32-2A 11.7 70 2.5 35 6.37 2950 7.5Y132S2-2H(V1)
CLH50-32-2B 10.8 60 2.5 35 5.04 2950 5.5Y132S1-2H(V1)
CLH50-32-3 12.5 65 2.3 37 6 2950 7.5Y132S2-2H(V1)
CLH50-32-3.5 12.5 50 3.2 45 3.8 2950 5.5Y132S1-2H(V1)
CLH50-32-3.5A 10 45 3.5 44 2.8 2950 4Y112M-2H(V1)
CLH50-32-4.5 12.5 32 3 52 2.1 2950 3Y100L-2H(V1)
CLH50-32-4.5A 10 28 3 52 1.47 2950 2.2Y90L-2H(V1)
CLH50-32-6.5 12.5 20 2.5 56 1.2 2950 2.2Y90L-2H(V1)
CLH50-40-7 20 25 4 59 2.3 2950 4Y112M-2H(V1)
CLH50-50-4.5 20 45 5 56 4.4 2950 5.5Y132S1-2H(V1)
CLH50-50-4.5A 18.6 38.5 5 55 3.55 2950 5.5Y132S1-2H(V1)
CLH65-40-2.5 25 125 3 38 22.4 2950 30Y200L1-2H(V1)
CLH65-40-2.5A 23.9 114 3 38 19.5 2950 22Y180M-2H(V1)
CLH65-40-2.5B 22.7 103 3 37 17.2 2950 22Y180M-2H(V1)
CLH65-40-2.5C 21.4 92 3 37 14.5 2950 18.5Y160L-2H(V1)
CLH65-40-3 25 80 3 49 11.1 2950 15Y160M2-2H(V1)
CLH65-40-3A 23 70 3 49 8.95 2950 11Y160M1-2H(V1)
CLH65-40-4 25 65 2.5 48 9.2 2950 11Y160M1-2H(V1)
CLH65-40-4.5 25 50 3 56 6.1 2950 7.5Y132S2-2H(V1)
CLH65-40-4.5A 23 45 3 55 5.2 2950 7.5Y132S2-2H(V1)
CLH65-50-6.5 25 32 2.3 63 3.5 2950 4Y112M-2H(V1)
CLH65-50-6.5A 23.4 28 2.5 62 2.9 2950 4Y112M-2H(V1)
CLH65-50-6.5B 21.7 24 2.5 62 2.3 2950 3Y100L-2H(V1)
CLH65-50-8.5 30 30 4 57 4.3 2950 5.5Y132S1-2H(V1)
CLH65-50-9 25 20 2.3 67 2.1 2950 3Y100L-2H(V1)
CLH65-50-9A 23.8 17.6 2.4 65 1.76 2950 2.2Y90L-2H(V1)
CLH65-65-5.5 30 45 4 55 6.7 2950 7.5Y132S2-2H(V1)
CLH65-65-5.5A 23.4 44 3 58 4.83 2950 5.5Y132S1-2H(V1)
CLH65-65-5.5B 21 35.3 3 56 3.6 2950 4Y112M-2H(V1)
CLH80-50-3.5 50 125 3.2 52 32.7 2950 37Y200L2-2H(V1)
CLH80-50-3.5A 47.7 114 3.2 51 29 2950 37Y200L2-2H(V1)
CLH80-50-3.5B 45.4 103 3.2 50 25.46 2950 30Y200L1-2H(V1)
CLH80-50-3.5C 42 88.5 3.2 50 20.24 2950 22Y180M-2H(V1)
CLH80-50-4 60 85 4 56 24.8 2950 30Y200L1-2H(V1)
CLH80-50-4.5 50 80 3 61 17.9 2950 22Y180M-2H(V1)
CLH80-50-4.5A 46.8 70 3 60 14.9 2950 18.5Y160L-2H(V1)
CLH80-50-5 50 65 4 63 14 2950 18.5Y160L-2H(V1)
CLH80-50-5A 46.5 56 4 62 11.44 2950 15Y160M2-2H(V1)
CLH80-50-6.5 50 50 2.7 66 10.3 2950 15Y160M2-2H(V1)
CLH80-50-6.5A 46.8 44 2.7 66 8.5 2950 11Y160M1-2H(V1)
CLH80-50-6.5B 43.3 38 2.7 66 6.8 2950 7.5Y132S2-2H(V1)
CLH80-50-7 50 45 3.5 57 10.75 2950 15Y160M2-2H(V1)
CLH80-50-7A 46.5 39 3.5 57 8.66 2950 11Y160M1-2H(V1)
CLH80-65-5.5 50 60 3.5 63 13 2950 18.5Y160L-2H(V1)
CLH80-65-5.5A 46.5 51.5 4 62 10.5 2950 15Y160M2-2H(V1)
CLH80-65-9 50 32 2.8 70 6.22 2950 7.5Y132S2-2H(V1)
CLH80-65-9A 46.8 28 2.8 70 5.1 2950 7.5Y132S2-2H(V1)
CLH80-65-9B 42 22 2.8 69 3.6 2950 4Y112M-2H(V1)
CLH80-65-11 50 25 3.5 70 4.9 2950 7.5Y132S2-2H(V1)
CLH80-65-13 50 20 3 73 3.8 2950 5.5Y132S1-2H(V1)
CLH80-65-13A 46.7 16.6 3 70 3 2950 4Y112M-2H(V1)
CLH100-65-5 100 125 5 63 54 2950 75Y280S-2H(V1)
CLH100-65-5A 95.5 114 5 63 47.04 2950 55Y250M-2H(V1)
CLH100-65-5B 90.8 103 5 63 40.4 2950 45Y225M-2H(V1)
CLH100-65-5C 85.8 92 5 62 34.7 2950 45Y225M-2H(V1)
CLH100-65-5.5 100 100 4.8 63 43.2 2950 55Y250M-2H(V1)
CLH100-65-7 70 60 4 65 17.59 2950 22Y180M-2H(V1)
CLH100-65-7A 65 52 4 64 14.4 2950 18.5Y160L-2H(V1)
CLH100-65-8 100 60 4.8 70 23.4 2950 30Y200L1-2H(V1)
CLH100-65-10 100 45 4.8 72 17 2950 22Y180M-2H(V1)
CLH100-65-10A 86 38 4.8 71 12.53 2950 15Y160M2-2H(V1)
CLH100-80-5 120 125 5 63 64.8 2950 75Y280S-2H(V1)
CLH100-80-5.5 114 112 5 63 55.2 2950 75Y280S-2H(V1)
CLH100-80-5.8 108 100 5 62 47.4 2950 55Y250M-2H(V1)
CLH100-80-6 100 90 5 70 35 2950 45Y225M-2H(V1)
CLH100-80-6.5 100 80 4.5 70 31.1 2950 37Y200L2-2H(V1)
CLH100-80-13.5 70 25 4 71 6.7 2950 11Y160M1-2H(V1)
CLH100-80-13 100 32 4 74 11.8 2950 15Y160M2-2H(V1)
CLH100-80-13A 93.5 28 4 74 9.63 2950 11Y160M1-2H(V1)
CLH100-80-13B 82.4 21.7 4 73 6.67 2950 11Y160M1-2H(V1)
CLH100-80-19 100 20 4 75 7.26 2950 11Y160M1-2H(V1)
CLH100-80-19A 93 17 4.5 74 5.8 2950 7.5Y132S2-2H(V1)
CLH100-80-8.5 70 45 4 71 12.1 2950 15Y160M2-2H(V1)
CLH100-80-8.5A 66 40 4 70 10.3 2950 15Y160M2-2H(V1)
CLH125-80-6 160 125 5.8 65 83.8 2950 90Y280M-2H(V1)
CLH125-80-7 160 100 5.2 66 66 2950 75Y280S-2H(V1)
CLH125-80-8 160 80 4.8 73 47.8 2950 55Y250M-2H(V1)
CLH125-80-8A 105 70 4.8 72 39.7 2950 55Y250M-2H(V1)
CLH125-80-8B 140 60 4.8 71 32.2 2950 45Y225M-2H(V1)
CLH125-80-10 160 65 4.2 71 40 2950 45Y225M-2H(V1)
CLH125-100-6.5 150 110 5 65 69.1 2950 75Y280S-2H(V1)
CLH125-100-6.5A 142 99 5 65 58.9 2950 75Y280S-2H(V1)
CLH125-100-10 125 20 4.5 74 9.2 1450 11Y160M-4H(V1)
CLH125-100-12.5 150 45 5.5 76 24.5 2950 30Y200L1-2H(V1)
CLH125-100-12 160 50 4 76 28.7 2950 37Y200L2-2H(V1)
CLH125-100-13 200 50 4.5 77 35.4 2950 45Y225M-2H(V1)
CLH125-100-17.5 120 25 5.5 78 10.5 2950 15Y160M2-2H(V1)
CLH125-100-17.5A 114 22 5.5 77 8.9 2950 11Y160M1-2H(V1)
CLH125-100-17 160 32 5 77 18.1 2950 22Y180M-2H(V1)
CLH125-100-17A 150 28 5 75 15.25 2950 18.5Y160L-2H(V1)
CLH125-100-19 200 32 3.5 75 23.23 2950 30Y200L1-2H(V1)
CLH125-125-23 160 20 3.5 78 11.7 2950 15Y160M2-2H(V1)
CLH150-125-10 265 86 4.5 74 83.84 1450 110Y315S-2H(V1)
CLH150-125-10A 251 77 4.5 73 72.1 1450 90Y280M-2H(V1)
CLH150-125-22 200 25 7 80 17 1450 22Y180M-2H(V1)
CLH150-125-10.5 250 32 7.5 78 28 1450 37Y225S-4H(V1)
CLH150-125-13 200 20 3.5 79 13.5 1450 18.5Y180M-4H(V1)
CLH150-125-13A 190 18 3.5 77 12.1 1450 15Y160L-4H(V1)
CLH150-125-7 220 50 4 71 42.2 1450 45Y225M-4H(V1)
CLH150-125-7A 206 44 4 72 34.3 1450 37Y225S-4H(V1)
CLH150-125-7B 193 38.5 4 71 28.5 1450 37Y225S-4H(V1)
CLH200-150-6 300 70 3 75 76.3 1450 90Y280M-4H(V1)
CLH200-150-6A 280 65 3 74 67 1450 75Y280S-4H(V1)
CLH200-150-9.5 400 50 4.2 78 69.8 1450 90Y280M-4H(V1)
CLH200-150-10 380 45 4.2 76 61.25 1450 75Y280S-4H(V1)
CLH200-150-11 340 36 4.2 76 43.84 1450 55Y250M-4H(V1)
CLH200-150-12 320 32 5 75 37.2 1450 45Y225M-4H(V1)
CLH250-200-21 500 20 4 79 34.5 1450 45Y225M-4H(V1)
CLH250-200-21A 475 18 4 78 29.85 1450 37Y225S-4H(V1)
CLH250-200-15 500 32 4 77 56.6 1450 75Y280S-4H(V1)
CLH250-200-15A 470 28 4 76 47.14 1450 55Y250M-4H(V1)
CLH300-250-11 600 32 4.5 78 67 1450 75Y280S-4H(V1)
CLH300-250-11A 600 25 4.5 76 53.73 1450 75Y280S-4H(V1)
CLH300-250-11B 560 25 4.5 76 50.15 1450 55Y250M-4H(V1)
CLH300-250-12 700 32 4.5 79 77.2 1450 90Y280M-4H(V1)
CLH300-250-12A 680 29 4.5 77 69.72 1450 75Y280S-4H(V1)
CLH300-250-19 850 20 4.5 78 59.33 1450 75Y280S-4H(V1)
CLH300-250-19A 824 18 4.5 76 53.13 1450 75Y280S-4H(V1)
CLH125-25-6.5 3.6 11.5 4.3 45 0.26 3360 0.37AO2-711-2H(V1)
CLH125-25-6.5A 3.24 9.4 4.3 45 0.19 3360 0.37AO2-711-2H(V1)
CLH140-32-2 6 64.8 4.3 29 3.65 3540 5.5Y132S1-2H(V1)
CLH140-32-2.5 12 86.4 4.3 38 7.43 3540 11Y160M1-2H(V1)
CLH140-32-3 12 64.8 4.3 44 4.84 3540 5.5Y132S1-2H(V1)
CLH140-32-3.5 6 36 4.3 48 1.23 3540 2.2Y90L-2H(V1)
CLH140-32-5 12 36 4.3 40 2.94 3540 4Y112M-2H(V1)
CLH150-32-2 15 115.2 3 36 13.13 3540 15Y160M2-2H(V1)
CLH150-32-2A 14.04 100.8 3 35 11.01 3540 15Y160M2-2H(V1)
CLH150-32-2B 12.96 86.4 3 35 8.71 3540 11Y160M1-2H(V1)
CLH150-32-3 15 93.6 3 37 10.37 3540 15Y160M2-2H(V1)
CLH150-32-3.5 15 72 3.5 45 6.57 3540 7.5Y132S2-2H(V1)
CLH150-32-3.5A 12 64.8 3.5 44 4.84 3540 5.5Y132S1-2H(V1)
CLH150-32-4.5 15 46.1 3.5 52 3.63 3540 5.5Y132S1-2H(V1)
CLH150-32-4.5A 12 40.3 3.5 52 2.54 3540 3Y100L-2H(V1)
CLH150-32-6.5 15 28.8 3 56 2.07 3540 3Y100L-2H(V1)
CLH150-40-7 24 36 4.5 58 3.97 3540 5.5Y132S1-2H(V1)
CLH150-50-4.5 24 64.8 5.2 56 7.6 3540 11Y160M1-2H(V1)
CLH150-50-4.5A 22.32 55.4 5.2 55 6.13 3540 7.5Y132S2-2H(V1)
CLH165-40-2.5 30 180 3.5 38 38.71 3540 45Y225M-2H(V1)
CLH165-40-2.5A 28.68 164.2 3.5 38 33.7 3540 45Y225M-2H(V1)
CLH165-40-2.5B 27.24 148.3 3.5 38 29.72 3540 37Y200L2-2H(V1)
CLH165-40-2.5C 25.68 132.5 3.5 38 25.06 3540 30Y200L1-2H(V1)
CLH165-40-3 30 115.2 3.5 49 19.18 3540 22Y180M-2H(V1)
CLH165-40-3A 27.6 100.8 3.5 49 15.47 3540 18.5Y160L-2H(V1)
CLH165-40-4 30 93.6 3 48 15.9 3540 18.5Y160L-2H(V1)
CLH165-40-4.5 30 72 3.5 56 10.54 3540 15Y160M2-2H(V1)
CLH165-40-4.5A 27.6 64.8 3.5 55 8.99 3540 11Y160M1-2H(V1)
CLH165-50-6.5 30 46.1 2.5 62 6.05 3540 7.5Y132S2-2H(V1)
CLH165-50-6.5A 28.08 40.3 2.8 61 5.01 3540 7.5Y132S2-2H(V1)
CLH165-50-6.5B 26.04 34.6 2.8 61 3.97 3540 5.5Y132S1-2H(V1)
CLH165-50-8.5 36 43.2 4.2 56 7.43 3540 11Y160M1-2H(V1)
CLH165-50-9 30 28.8 2.5 66 3.63 3540 5.5Y132S1-2H(V1)
CLH165-50-9A 28.56 25.3 2.5 65 3.04 3540 4Y112M-2H(V1)
CLH165-65-5.5 36 64.8 4.2 55 11.58 3540 15Y160M2-2H(V1)
CLH165-65-5.5A 28.08 63.4 3.5 57 8.35 3540 11Y160M1-2H(V1)
CLH165-65-5.5B 25.2 50.8 3.5 56 6.22 3540 7.5Y132S2-2H(V1)
CLH180-50-3.5 60 180 3.7 52 56.51 3540 75Y280S-2H(V1)
CLH180-50-3.5A 57.24 164.2 3.7 51 50.11 3540 75Y280S-2H(V1)
CLH180-50-3.5B 54.48 148.3 3.7 50 43.99 3540 30Y200L1-2H(V1)
CLH180-50-3.5C 50.4 127.4 3.7 50 34.97 3540 22Y180M-2H(V1)
CLH180-50-4 72 122.4 4.5 55 42.85 3540 30Y200L1-2H(V1)
CLH180-50-4.5 60 115.2 3.5 60 30.93 3540 22Y180M-2H(V1)
CLH180-50-4.5A 56.16 100.8 3.5 60 25.75 3540 18.5Y160L-2H(V1)
CLH180-50-5 60 93.6 4.3 62 24.19 3540 18.5Y160L-2H(V1)
CLH180-50-5A 55.8 80.6 4.3 61 19.77 3540 15Y160M2-2H(V1)
CLH180-50-6.5 60 72 3 65 17.8 3540 15Y160M2-2H(V1)
CLH180-50-6.5A 56.16 63.4 3 65 14.69 3540 11Y160M1-2H(V1)
CLH180-50-6.5B 51.96 54.7 3 65 11.75 3540 7.5Y132S2-2H(V1)
CLH180-50-7 60 64.8 4 56 18.58 3540 15Y160M2-2H(V1)
CLH180-50-7A 55.8 56.2 4 56 14.96 3540 11Y160M1-2H(V1)
CLH180-65-5.5 60 86.4 4 62 22.46 3540 18.5Y160L-2H(V1)
CLH180-65-5.5A 55.8 74.2 4.2 62 18.14 3540 15Y160M2-2H(V1)
CLH180-65-9 60 46.1 3 68 10.75 3540 7.5Y132S2-2H(V1)
CLH180-65-9A 56.16 40.3 3 68 8.81 3540 7.5Y132S2-2H(V1)
CLH180-65-9B 50.4 31.7 3 68 6.22 3540 4Y112M-2H(V1)
CLH180-65-11 60 36 3.8 68 8.47 3540 7.5Y132S2-2H(V1)
CLH180-65-13 60 28.8 3.5 71 6.57 3540 5.5Y132S1-2H(V1)
CLH180-65-13A 56.04 23.9 3.5 69 5.18 3540 4Y112M-2H(V1)
CLH1100-65-5 120 180 5.3 62 93.31 3540 75Y280S-2H(V1)
CLH1100-65-5A 114.6 164.2 5.3 62 81.29 3540 55Y250M-2H(V1)
CLH1100-65-5B 108.96 148.3 5.3 62 69.81 3540 45Y225M-2H(V1)
CLH1100-65-5C 102.96 132.5 5.3 61 59.96 3540 45Y225M-2H(V1)
CLH1100-65-5.5 120 144 5.2 62 74.65 3540 55Y250M-2H(V1)
CLH1100-65-7 84 86.4 4.5 63 30.4 3540 22Y180M-2H(V1)
CLH1100-65-7A 78 74.9 4.5 62 24.88 3540 18.5Y160L-2H(V1)
CLH1100-65-8 120 86.4 5.2 68 40.44 3540 30Y200L1-2H(V1)
CLH1100-65-10 120 64.8 5.2 70 29.38 3540 22Y180M-2H(V1)
CLH1100-65-10A 103.2 54.7 5.2 70 21.65 3540 15Y160M2-2H(V1)
CLH1100-80-5 144 180 4.2 62 111.97 3540 75Y280S-2H(V1)
CLH1100-80-5.5 136.8 161.3 4.2 62 95.39 3540 75Y280S-2H(V1)
CLH1100-80-5.8 129.6 144 4.2 61 81.91 3540 55Y250M-2H(V1)
CLH1100-80-6 120 129.6 5.5 68 60.48 3540 45Y225M-2H(V1)
CLH1100-80-6.5 120 115.2 4.7 68 53.74 3540 37Y200L2-2H(V1)
CLH1100-80-13.5 84 36 4.5 69 11.58 3540 11Y160M1-2H(V1)
CLH1100-80-13 120 46.1 4.5 72 20.39 3540 15Y160M2-2H(V1)
CLH1100-80-13A 112.2 40.3 4.5 72 16.64 3540 11Y160M1-2H(V1)
CLH1100-80-13B 98.88 31.2 4.5 71 11.53 3540 11Y160M1-2H(V1)
CLH1100-80-19 120 28.8 3.5 73 12.55 3540 15Y160M2-2H(V1)
CLH1100-80-19A 111.6 24.5 3.5 73 10.02 3540 15Y160M2-2H(V1)
CLH1100-80-8.5 84 64.8 4.5 69 20.91 3540 30Y200L1-2H(V1)
CLH1100-80-8.5A 79.2 57.6 4.5 69 17.8 3540 22Y180M-2H(V1)
CLH1125-80-6 192 180 6 61 144.81 3540 160Y315L1-2H(V1)
CLH1125-80-7 192 144 5.5 65 114.05 3540 132Y315M-2H(V1)
CLH1125-80-8 192 115.2 5 71 82.6 3540 110Y315S-2H(V1)
CLH1125-80-8A 126 100.8 5 70 68.6 3540 90Y280M-2H(V1)
CLH1125-80-8B 168 86.4 5 69 55.64 3540 75Y280S-2H(V1)
CLH1125-80-10 192 93.6 4.5 69 69.12 3540 90Y280M-2H(V1)
CLH1125-100-6.5 180 158.4 5.2 63 119.4 3540 160Y315L1-2H(V1)
CLH1125-100-6.5A 170.4 142.6 5.2 63 101.78 3540 132Y315M-2H(V1)
CLH1125-100-10 150 28.8 5 72 15.9 1750 22Y180L-4H(V1)
CLH1125-100-12.5 180 64.8 5.8 74 42.34 3540 55Y250M-2H(V1)
CLH1125-100-12 192 72 4.5 74 49.59 3540 55Y250M-2H(V1)
CLH1125-100-13 240 72 5 75 61.17 3540 75Y280S-2H(V1)
CLH1125-100-17.5 144 36 6 76 18.14 3540 22Y180M-2H(V1)
CLH1125-100-17.5A 136.8 31.7 6 75 15.38 3540 18.5Y160L-2H(V1)
CLH1125-100-17 192 46.1 5.5 75 31.28 3540 37Y200L2-2H(V1)
CLH1125-100-17A 180 40.3 5.5 73 26.35 3540 30Y200L1-2H(V1)
CLH1125-100-19 240 46.1 4 73 40.14 3540 45Y225M-2H(V1)
CLH1125-125-23 192 28.8 4 76 20.22 3540 22Y180M-2H(V1)
CLH1150-125-10 318 123.8 4.5 72 144.88 3540 160Y315L1-2H(V1)
CLH1150-125-10A 301.2 110.9 4.5 72 124.59 3540 160Y315L1-2H(V1)
CLH1150-125-22 240 36 7 78 29.38 3540 37Y200L2-2H(V1)
CLH1150-125-10.5 300 46.1 7.5 76 48.38 1750 55Y250M-4H(V1)
CLH1150-125-13 240 28.8 4 77 23.33 1750 30Y200L-4H(V1)
CLH1150-125-13A 228 25.9 4 77 20.91 1750 30Y200L-4H(V1)
CLH1150-125-7 264 72 4.5 71 72.92 1750 90Y280M-4H(V1)
CLH1150-125-7A 247.2 63.4 4.5 71 59.27 1750 75Y280S-4H(V1)
CLH1150-125-7B 231.6 55.4 4.5 71 49.25 1750 55Y250M-4H(V1)
CLH1200-150-6 360 100.8 3.5 73 131.85 1750 160Y315L1-4H(V1)
CLH1200-150-6A 336 93.6 3.5 72 115.78 1750 132Y315M-4H(V1)
CLH1200-150-9.5 480 72 4.5 76 120.61 1750 160Y315L1-4H(V1)
CLH1200-150-10 456 64.8 4.5 74 105.84 1750 132Y315M-4H(V1)
CLH1200-150-11 408 51.8 4.5 74 75.76 1750 90Y280M-4H(V1)
CLH1200-150-12 384 46.1 5.5 73 64.28 1750 75Y280S-4H(V1)
CLH1250-200-21 600 28.8 4.5 77 59.62 1750 75Y280S-4H(V1)
CLH1250-200-21A 570 25.9 4.5 76 51.58 1750 75Y280S-4H(V1)
CLH1250-200-15 600 46.1 4.5 75 97.8 1750 132Y315M-4H(V1)
CLH1250-200-15A 564 40.3 4.5 74 81.46 1750 110Y315S-4H(V1)
CLH1300-250-11 720 46.1 5 76 115.78 1750 132Y315M-4H(V1)
CLH1300-250-11A 720 36 5 74 92.85 1750 110Y315S-4H(V1)
CLH1300-250-11B 672 36 5 74 86.66 1750 110Y315S-4H(V1)
CLH1300-250-12 840 46.1 5 77 133.4 1750 160Y315L1-4H(V1)
CLH1300-250-12A 816 41.8 5 75 120.48 1750 160Y315L1-4H(V1)
CLH1300-250-19 1020 28.8 5 76 102.52 1750 132Y315M-4H(V1)
CLH1300-250-19A 988.8 25.9 5 74 91.81 1750 110Y315S-4H(V1)

Inquiry/Feedback to our sales office

The easy and safe way to contact us

verifyImg

More way to contact us

Tel: 86-23-68428875,68428422,68838417

Fax: 86-4008266163-88928

Email: sales@jinbomarine.com

You Have Visited
