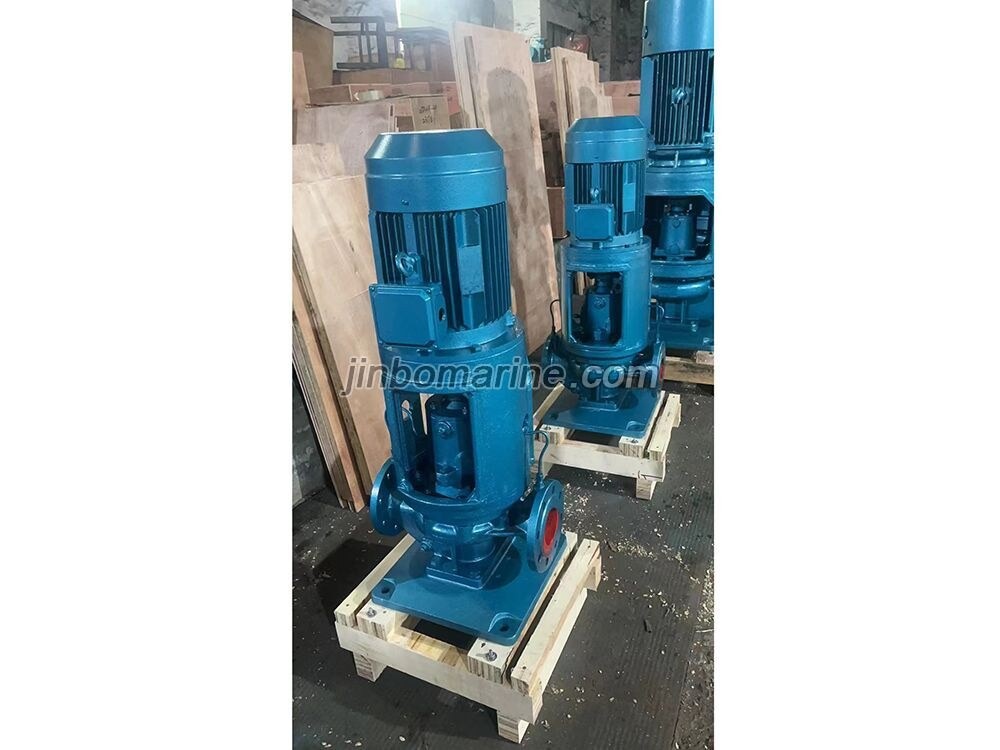

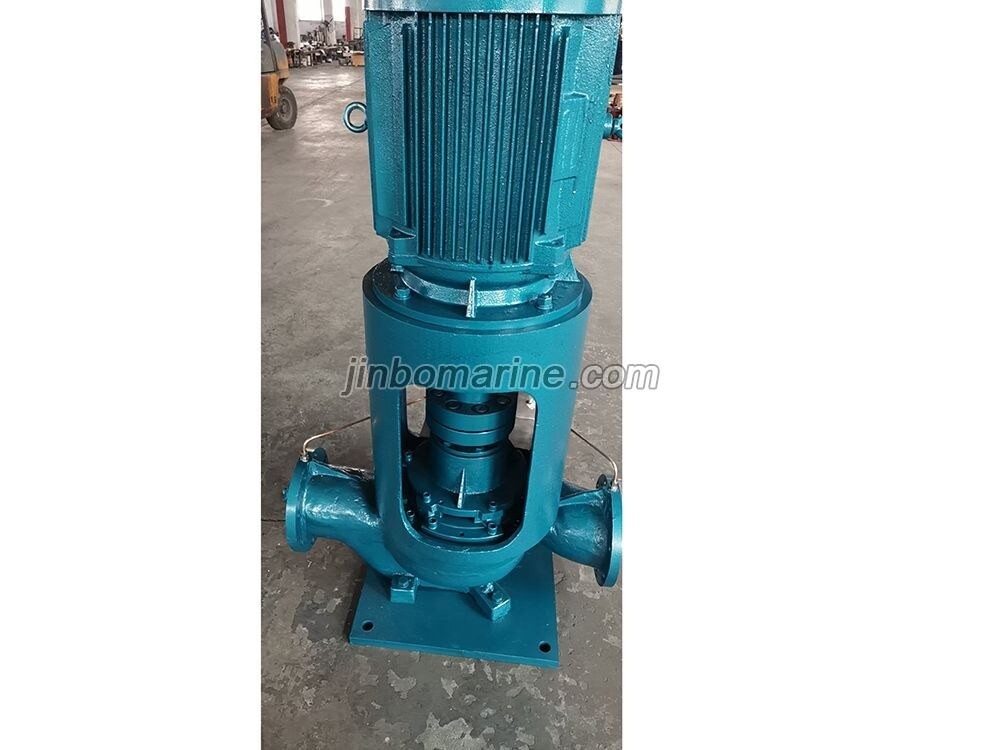

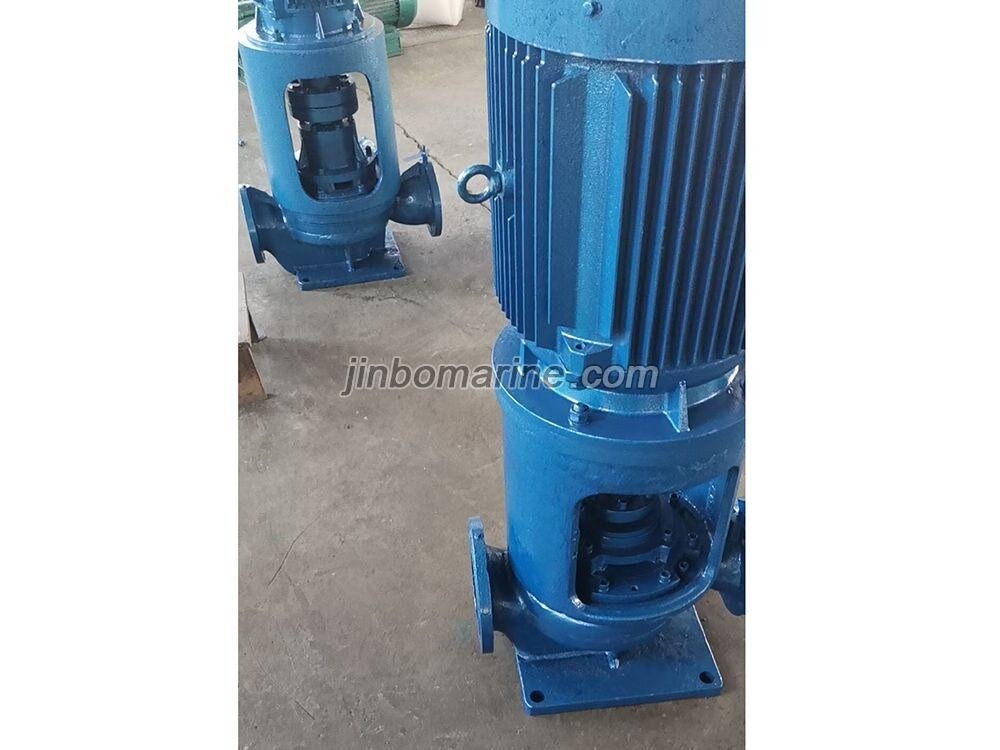

CLH80-160 Vertical Centrifugal Sea Water Marine Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

CLH80-160 Vertical Centrifugal Sea Water Marine Pump

1、 Product Overview:

The CLH and PVH series single-stage single suction pipeline centrifugal pumps are designed by our unit's scientific and technological personnel in collaboration with domestic pump experts, using excellent hydraulic models and the performance parameters of IS centrifugal pumps. They are cleverly combined and designed on the basis of general vertical pumps. At the same time, ISG pumps and oil pumps suitable for hot water, high temperature, and corrosive chemicals are derived based on different operating temperatures, media, and other ISG types. This series of products has advantages such as high efficiency, energy conservation, low noise, and reliable performance. Complies with the latest JB/T53058-93 standard requirements of the Ministry of Machinery of China. The product is designed and manufactured according to the international ISO2858 standard.

2、 Features:

1. The pump is a vertical structure with the same inlet and outlet diameters and located on the same centerline. It can be installed in pipelines like a valve, with a compact and beautiful appearance, small footprint, and low building investment. If a protective cover is added, it can be used outdoors.

2. The impeller is directly installed on the extended shaft of the motor, with a short axial size and a compact structure. The pump and motor bearings are configured reasonably, which can effectively balance the radial and axial loads generated during pump operation, ensuring smooth pump operation and low vibration noise.

3. The shaft seal adopts mechanical seals or a combination of mechanical seals, using imported titanium alloy sealing rings, medium high temperature resistant mechanical seals, and hard alloy materials for wear-resistant seals, which can effectively increase the service life of mechanical seals.

4. Easy installation and maintenance, no need to dismantle the pipeline system, as long as the pump coupling seat nut is removed, all rotor components can be extracted.

5. The pump can be operated in series or parallel according to the requirements of flow rate and head.

6. According to the requirements of pipeline layout, pumps can be installed vertically and horizontally.

3、 Usage:

1. CLH and PVH vertical pipeline centrifugal pumps are used for conveying clean water and other liquids with physical and chemical properties similar to clean water. They are suitable for industrial and urban water supply and drainage, pressurized water supply in high-rise buildings, garden sprinkler irrigation, fire pressurization, long-distance transportation, and HVAC refrigeration cycles. Bathroom and other cold and warm water circulation pressurization and equipment matching, with a usage temperature of T ＜ 80 ℃.

2. CLH and PVH (RG) vertical hot water (high temperature) circulation pumps are widely used in energy, metallurgy, chemical, textile, papermaking, as well as boiler high-temperature hot water booster circulation transportation and urban heating system circulation pumps in hotels and restaurants. The IRG type uses a temperature T ＜ 120 ℃, and the GRG type uses a temperature T ＜ 240 ℃.

Techincal data:

Model FlowQ Head Efficiency Speed Motor Power(KW) (NPSH) Weight(Kg)
(m3/h) (1/s) (m) (%) (r/min)
15-80 1.1 0.3 8.5 26 2800 0.18 2.3 17
1.5 0.42 8 34
2 0.55 7 34
20-110 1.8 0.5 16 25 2800 0.37 2.3 25
2.5 0.69 15 34
3.3 0.91 13.5 35
20-160 1.8 0.5 33 19 2900 0.75 2.3 29
2.5 0.69 32 25
3.3 0.91 30 23
25-110 2.8 0.78 16 34 2900 0.55 2.3 26
4 1.11 15 42
5.2 1.44 13.5 41
25-125 2.8 0.78 20.6 28 2900 0.75 2.3 28
4 1.11 20 36
5.2 1.44 18 35
25-125A 2.5 0.69 17 35 2900 0.55 2.3 27
3.6 1 16
4.6 1.28 14.4
25-160 2.8 0.78 33 24 2900 1.5 2.3 39
4 1.11 32 32
5.2 1.44 30 33
25-160A 2.6 0.12 29 31 2900 1.1 2.3 34
3.7 1.03 28
4.9 1.36 26
32-100(I) 4.4 1.22 13.2 48 2900 0.75 2 32
6.3 1.75 12.5 54
8.3 2.32 11.3 53
32-125 3.5 0.97 22 40 2900 0.75 2.3 28
5 1.39 20 44
6.5 1.8 18 42
32-125A 3.1 0.86 17.6 43 2900 0.55 2.3 28
4.5 1.25 16
5.8 1.61 14.4
32-160(I) 4.4 1.22 33.2 34 2900 2.2 2 47
6.3 1.75 32 40
8.3 2.32 30.2 42
32-200(I) 4.4 1.22 50.5 26 2900 4 2 43
6.3 1.75 50 33
8.3 2.32 48 35
32-200A 2.8 0.78 44.6 34 2900 2.2 2 74
4 1.11 44 40
5.2 1.44 42.7 42
40-100 4.4 1.22 13.2 48 2900 0.55 2.3 32
6.3 1.75 12.5 54
8.3 2.31 11.3 53
40-100A 3.9 1.08 10.6 52 2900 0.37 2.3 32
5.6 1.56 10
7.4 2.06 9
40-125 4.4 1.22 21 41 2900 1.1 2.3 34
6.3 1.75 20 46
8.3 2.31 18 43
40-125A 3.9 1.08 17.6 40 2900 0.75 2.3 33
5.6 1.56 16 45
7.4 2.06 14.4 41
40-160 4.4 1.22 33 35 2900 2.2 2.3 47
6.3 1.75 32 40
8.3 2.31 30 40
40-160A 4.1 1.14 29 34 2900 1.5 2.3 43
5.9 1.64 28 39
7.8 2.17 26.3 39
40-160B 3.8 1.06 25.5 34 2900 1.1 2.3 38
5.5 1.53 24 38
7.2 2 22.5 37
40-200 4.4 1.22 51 26 2900 4 2.3 74
6.3 1.75 50 33
8.3 2.31 48 32
40-200A 4.1 1.14 45 26 2900 3 2.3 62
5.9 1.64 44 31
7.8 2.17 42 30
40-200B 3.7 1.03 38 29 2900 2.2 2.3 52
5.3 1.47 36
7 1.94 34.5
40-250 4.4 1.22 82 24 2900 7.5 2.3 105
6.3 1.75 80 28
8.3 2.31 74 28
40-250A 4.1 1.14 72 24 2900 5.5 2.3 98
5.9 1.64 70 28
7.8 2.17 65 27
40-250B 3.8 1.06 61.5 23 2900 4 2.3 77
5.5 1.53 60 27
7 1.94 56 26
40-100(I) 8.8 2.44 13.2 55 2900 1.1 2.3 34
12.5 3.47 12.5 62
16.3 4.53 11.3 60
40-100(I)A 8 2.22 10.6 60 2900 0.75 2.3 32
11 3.05 10
14.5 4.03 9
40-125(I) 8.8 2.44 21.2 49 2900 1.5 2.3 38
12.5 3.47 20 58
16.3 4.53 17.8 57
40-125(I)A 8 2.22 17 57 2900 1.1 2.3 33
11 3.05 16
14.5 4.03 14
40-160(I) 8.8 2.44 33 45 2900 3 2.3 56
12.5 3.47 32 52
16.3 4.53 30 51
40-160(I)A 8.2 2.28 29 44 2900 2.2 2.3 47
11.7 3.25 28 51
15.2 4.22 26 50
Model FlowQ Head Efficiency Speed Motor Power(KW) (NPSH) Weight(Kg)
(m3/h) (1/s) (m) (%) (r/min)
40-160(I)B 7.3 2.38 23 50 2900 1.5 2.3 43
10.4 2.89 22
13.5 3.75 20.5
40-200(I) 8.8 2.44 51.2 38 2900 5.5 2.3 85
12.5 3.47 50 46
16.3 4.53 48 46
40-200(I)A 8.3 2.31 45 37 2900 4 2.3 75
11.7 3.25 44 45
15.3 4.25 42 45
40-200(I)B 7.5 2.08 37 44 2900 3 2.3 63
10.6 2.94 36
13.8 3.83 34
40-250(I) 8.8 2.44 81.2 31 2900 11 2.3 145
12.5 3.47 80 38
16.3 4.53 77.5 40
40-250(I)A 8.2 2.28 71 38 2900 7.5 2.3 95
11.6 3.22 70
15.2 4.22 68
40-250(I)B 7.6 2.11 61.4 37 2900 7.5 2.3 94
10.8 3 60
14 3.89 58
40-250(I)C 7.1 1.97 53.2 36 2900 5.5 2.3 88
10 2.78 52
13.1 3.64 50.4
50-100 8.8 2.44 13.6 55 2900 1.1 2.3 36
12.5 3.47 12.5 62
16.3 4.53 11.3 60
50-100A 8 2.22 11 60 2900 0.75 2.3 35
11 3.05 10
14.5 4.03 9
50-125 8.8 2.44 21.5 49 2900 1.5 2.3 43
12.5 3.47 20 58
16.3 4.53 17.8 57
50-125A 8 2.22 17 57 2900 1.1 2.3 38
11 3.05 16
14.5 4.03 14
50-160 8.8 2.44 33 45 2900 3 2.3 59
12.5 3.47 32 52
16.3 4.53 30 51
50-160A 8.2 2.82 29 44 2900 2.2 2.3 51
11.7 3.25 28 51
15.2 4.22 26 50
50-160B 7.3 2.38 23 50 2900 1.5 2.3 47
10.4 2.89 22
13.5 3.75 20.5
50-200 8.8 2.44 52 38 2900 5.5 2.3 101
12.5 3.47 50 46
16.3 4.53 48 46
50-200A 8.3 2.31 45.8 37 2900 4 2.3 80
11.7 3.25 44 45
15.3 4.25 42 45
50-200B 7.5 2.08 37 44 2900 3 2.3 68
10.6 2.94 36
13.8 3.83 34
50-250 8.8 2.44 82 29 2900 11 2.3 160
12.5 3.47 80 38
16.3 4.53 77.5 40
50-250A 8.2 2.28 71.5 38 2900 7.5 2.3 115
11.6 3.22 70
15.2 4.22 68
50-250B 7.6 2.11 61.4 37 2900 7.5 2.3 114
10.8 3 60
14 3.89 58
50-250C 7.1 1.97 53.2 36 2900 5.5 2.3 108
10 2.78 52
13.1 3.64 50.4
50-100(I) 17.5 4.86 13.7 67 2900 1.5 2.5 41
25 6.94 12.5 69
32.5 9.03 10.5 69
50-100(I)A 15.6 4.3 11 65 2900 1.1 2.5 36
22.3 6.19 10 67
29 8.1 8.4 68
50-125(I) 17.5 4.86 21.5 60 2900 3 2.5 56
25 6.94 20 68
32.5 9.03 18 67
50-125(I)A 15.6 4.33 17 58 2900 2.2 2.5 48
22.3 6.19 16 66
29 8.1 13.6 65
50-160(I) 17.5 4.68 34.4 54 2900 4 2.5 72
25 6.94 32 63
32.5 9.03 27.5 60
50-160(I)A 16.4 4.56 30 54 2900 4 2.5 71
23.4 6.5 28 62
30.4 8.44 24 59
50-160(I)B 15 4.17 26 58 2900 3 2.5 59
21.6 6 24
28 7.78 20.6
50-200(I) 17.5 4.86 52.7 49 2900 7.5 2.5 108
25 6.94 50 58
32.5 9.03 45.5 59
50-200(I)A 16.4 4.56 46.4 48 2900 7.5 2.5 107
23.5 6.53 44 57
30.5 8.47 40 58
50-200(I)B 15.2 4.22 40 55 2900 5.5 2.5 100
21.8 6.06 38
28.3 7.86 34.5
50-250(I) 17.5 4.86 82 39 2900 15 2.5 175
25 6.94 80 50
32.5 9.03 76.5 52
Model FlowQ Head Efficiency Speed Motor Power(KW) (NPSH) Weight(Kg)
(m3/h) (1/s) (m) (%) (r/min)
50-250(I)A 16.4 4.56 71.5 39 2900 11 2.5 165
23.4 6.5 70 50
30.5 8.47 67 52
50-250(I)B 15 4.17 61 38 2900 11 2.5 165
21.6 6 60 49
28 7.78 57.4 54
50-315(I) 17.5 4.86 128 30 2900 30 2.5 310
25 6.94 125 40
32.5 9.03 122 44
50-315(I)A 16.6 4.61 115 30 2900 22 2.5 245
23.7 6.58 113 40
31 8.6 110 44
50-315(I)B 15.7 4.36 103 39 2900 18.5 2.5 215
22.5 6.25 101
29.2 8 98
50-315(I)C 14.4 4 86 38 2900 15 2.5 195
20.6 5.72 85
26.8 7.44 83
65-100 17.5 4.86 13.7 67 2900 1.5 2.5 46
25 6.94 12.5 69
32.5 9.03 10.5 69
65-100A 15.6 4.3 11 65 2900 1.1 2.5 41
22.3 6.19 10 67
29 8.1 8.4 68
65-125 17.5 4.86 21.5 60 2900 3 2.5 58
25 6.94 20 68
32.5 9.03 18 67
65-125A 15.6 4.33 17 58 2900 2.2 2.5 49
22.3 6.19 16 66
29 8.1 14.4 65
65-160 17.5 4.86 34.4 54 2900 4 2.5 75
25 6.94 32 63
32.5 9.03 27.5 60
65-160A 16.4 4.56 30 54 2900 4 2.5 75
23.4 6.5 28 62
30.4 8.44 24 59
65-160B 15 4.17 26 58 2900 3 2.5 63
21.6 6 24
28 7.78 20.6
65-200 17.5 4.86 52.7 49 2900 7.5 2.5 107
25 6.94 50 58
32.5 9.03 45.5 59
65-200A 16.4 4.56 46.6 48 2900 7.5 2.5 107
23.5 6.53 44 57
30.5 8.47 40 58
65-200B 15.2 4.22 40 55 2900 5.5 2.5 100
21.8 6.06 38
28.3 7.86 34.5
65-250 17.5 4.86 82 39 2900 15 2.5 180
25 6.94 80 50
32.5 9.03 76.5 52
65-250A 16.4 4.56 71.5 39 2900 11 2.5 170
23.4 6.5 70 50
30.5 8.47 67 52
65-250B 15 4.17 61 38 2900 11 2.5 170
21.6 6 60 49
28 7.78 57.4 54
65-315 17.5 4.86 127 32 2900 30 2.5 320
25 6.94 125 40
32.5 9.03 122 44
65-315A 16.6 4.61 115 32 2900 22 2.5 255
23.7 6.58 113 40
31 8.6 110 44
65-315B 15.7 4.36 103 39 2900 18.5 2.5 255
22.5 6.25 101
29.2 8 98
65-315C 14.4 4 86 38 2900 15 2.5 205
20.6 5.72 85
26.8 7.44 83
65-100(I) 35 9.72 13.8 67 2900 3 3 63
50 13.9 12.5 73
65 18.1 10 70
65-100(I)A 31.3 8.7 11 66 2900 2.2 3 53
44.7 12.4 10 72
58 16.1 8 69
65-125(I) 35 9.72 22 67 2900 5.5 3 99
50 13.9 20 72.5
65 18.1 17 70
65-125(I)A 31.3 8.7 17.5 66 2900 4 3 78
45 12.5 16 71
58 16.1 13.6 69
65-160(I) 35 9.72 35 63 2900 7.5 3 103
50 13.9 32 71
65 18.1 28 70
65-160(I)A 32.7 9.1 30.6 62 2900 7.5 3 103
46.7 13 28 70
61 16.9 24 69
65-160(I)B 30.3 8.4 26 69 2900 5.5 3 97
43.3 12 24
56.3 15.6 21
65-200(I) 35 9.72 53.5 55 2900 15 3 176
50 13.9 50 67
65 18.1 46 68
65-200(I)A 32.8 9.1 47 54 2900 11 3 166
47 13.1 44 66
61 16.9 40 67
65-200(I)B 30.5 8.5 40.6 65 2900 7.5 3 114
43.5 12.1 38
56.6 15.7 33.4
Model FlowQ Head Efficiency Speed Motor Power(KW) (NPSH) Weight(Kg)
(m3/h) (1/s) (m) (%) (r/min)
65-250(I) 35 9.72 83 52 2900 22 3 235
50 13.9 80 59
65 18.1 72 60
65-250(I)A 32.5 9 73 52 2900 18.5 3 205
46.7 13 70 59
61 16.9 63 60
65-250(I)B 30 8.3 62 58 2900 15 3 180
43.3 12 60
56 15.6 54
65-315(I) 35 9.72 128 44 2900 37 3 350
50 13.9 125 54
65 18.1 121 57
65-315(I)A 32.5 9 112.6 43 2900 30 3 335
46.5 12.9 110 54
60.5 16.8 106.4 57
65-315(I)B 31 8.6 102.5 53 2900 30 3 335
44.5 12.4 100
58 16.1 98
65-315(I)C 29 8.1 87 51 2900 22 3 270
41 11.4 85
53.6 14.9 83
80-100 35 9.72 13.8 67 2900 3 3 63
50 13.9 12.5 73
65 18.1 10 70
80-100A 31.3 8.7 11 66 2900 2.2 3 54
44.7 12.5 10 72
58 16.1 8 69
80-125 35 9.72 22 67 2900 5.5 3 99
50 13.9 20 72.5
65 18.1 17 70
80-125A 31.3 8.7 17.5 66 2900 4 3 79
45 12.5 16 71
58 16.1 13.6 69
80-160 35 9.72 35 63 2900 7.5 3 105
50 13.9 32 71
65 18.1 28 70
80-160A 32.7 9.1 30.6 62 2900 7.5 3 105
46.7 13 28 70
61 16.9 24 69
80-160B 30.3 8.4 26 69 2900 5.5 3 98
43.3 12 24
56.3 15.6 21
80-200 35 9.72 53.5 55 2900 15 3 175
50 13.9 50 67
65 18.1 46 68
80-200A 32.8 9.1 47 54 2900 11 3 165
47 13.1 44 66
61 16.9 40 67
80-200B 30.5 8.5 40.6 65 2900 7.5 3 115
43.5 12.1 38
56.6 15.7 33.4
80-250 35 9.72 83 52 2900 22 3 240
50 13.9 80 59
65 18.1 72 60
80-250A 32.5 9 73 52 2900 18.5 3 210
46.7 13 70 59
61 16.9 63 60
80-250B 30 8.3 62 58 2900 15 3 185
43.3 12 60
56 15.6 54
80-315 35 9.72 128 43 2900 37 3 355
50 13.9 125 54
65 18.1 122 57
80-315A 32.5 9 112.6 43 2900 30 3 340
46.5 12.9 110 54
60.5 16.8 107.4 57
80-315B 31 8.6 102.5 53 2900 30 3 340
44.5 12.4 100
58 16.1 98
80-315C 29 8.1 98 51 2900 22 3 275
41 11.4 85
53.6 14.9 83
80-350 35 9.72 146 55 2900 55 3 570
50 13.9 150 66
65 18.1 142 67
80-350A 31 8.6 138.4 65 2900 45 3 470
44.5 12.4 142
58 16.1 134.8
80-350B 29 8.1 131.4 63 2900 37 3 440
41 11.4 135
53.6 14.9 127.8
80-100(I) 70 19.4 13.6 66 2900 5.5 4.5 108
100 27.8 12.5 76
130 36.1 11 75
80-100(I)A 62.6 17.4 11 64 2900 4 4.5 87
89 24.7 10 74
116 32.2 8.8 74
80-125(I) 70 19.4 23.5 70 2900 11 4.5 163
100 27.8 20 76
130 36.1 14 65
80-125(I)A 62.6 17.4 19 68 2900 7.5 4.5 113
89 24.7 16 74
116 32.2 11 65
80-160(I) 70 19.4 36.5 70 2900 15 4.5 184
100 27.8 32 76
130 36.1 24 65
80-160(I)A 65.4 18.2 32 68 2900 11 4.5 174
93.5 26 28 74
121.6 33.8 21 67
Model FlowQ Head Efficiency Speed Motor Power(KW) (NPSH) Weight(Kg)
(m3/h) (1/s) (m) (%) (r/min)
80-160(I)B 60.6 16.8 72 72 2900 11 4.5 174
86.6 24.1 24
112.5 31.3 18
80-200(I) 70 19.4 54 65 2900 22 4 251
100 24.1 50 74
130 31.3 42 73
80-200(I)A 65.4 18.2 47.5 64 2900 18.5 4 220
93.5 26 44 73
121.6 33.8 37 72
80-200(I)B 61 16.9 41 71 2900 15 4 198
87 24.2 38
113 31.4 32
80-250(I) 70 19.4 87 62 2900 37 4 330
100 27.8 80 69
130 36.1 68 68
80-250(I)A 65.4 18.2 76 61 2900 30 4 315
93.5 26 70 68
121.6 33.8 59.5 67
80-250(I)B 61 16.9 65 66 2900 30 4 315
87 24.2 60
113 31.4 51
80-315(I) 70 19.4 132 55 2900 75 4 675
100 27.8 125 66
130 36.1 114 67
80-315(I)A 66.5 18.5 119 55 2900 55 4 535
95 26.4 113 66
123.6 34.3 103 67
80-315(I)B 63 17.5 106.6 65 2900 45 4 420
90 25 101
117 32.5 92
80-315(I)C 58 16.1 90 63 2900 37 4 366
82 22.8 85
107 29.7 76
100-100 70 19.4 13.6 66 2900 5.5 4.5 113
100 27.8 12.5 76
130 36.1 11 75
100-100A 62.6 17.4 11 64 2900 4 4.5 91
89 47 10 74
116 32.2 8.8 74
100-125 70 19.4 23.5 70 2900 11 4.5 169
100 27.8 20 76
130 36.1 14 65
100-125A 62.6 17.4 19 68 2900 7.5 4.5 118
89 24.7 16 74
116 32.2 11 63
100-160 70 19.4 36.5 70 2900 15 4.5 191
100 27.8 32 76
130 36.1 24 65
100-160A 65.4 18.2 32 68 2900 11 4.5 181
93.5 26 28 74
121.6 33.8 21 67
100-160B 60.6 16.8 27 72 2900 11 4.5 181
86.6 24.1 24
112.5 31.3 18
100-200 70 19.4 54 65 2900 22 4 245
100 27.8 50 74
130 36.1 42 73
100-200A 65.4 18.2 47.5 64 2900 18.5 4 215
93.5 26 44 73
121.6 33.8 37 72
100-200B 61 16.9 41 71 2900 15 4 193
87 24.2 38
113 31.4 32
100-250 70 19.4 37 62 2900 37 4 345
100 27.8 80 69
130 36.1 68 68
100-250A 65.4 18.2 76 61 2900 30 4 330
93.5 26 70 68
121.6 33.8 59.5 67
100-250B 61 16.9 65 66 2900 30 4 330
87 24.2 60
113 31.4 51
100-315 70 19.4 132 55 2900 75 4 689
100 27.8 125 66
130 36.1 114 67
100-315A 66.5 18.5 119 65 2900 55 4 549
95 26.4 113 66
123.6 34.3 103 67
100-315B 63 17.5 106.6 65 2900 45 4 439
90 25 101
117 32.5 92
100-315C 58 16.1 90 63 2900 37 4 385
82 22.8 85
107 29.7 76
100-100(I) 96 26.7 14 64 2900 11 4.5 115
160 44.4 12.5 73
192 53.3 10 70
100-125(I) 96 26.7 24 62 2900 15 4.5 168
160 44.4 20 74
192 53.3 14 69
100-125(I)A 84 23.3 20 64 2900 11 4.5 168
140 39 17 72
168 46.7 12 68
100-160(I) 96 26.7 36 69 2900 22 5.6 210
160 44.4 32 79
192 53.3 27 75
100-160(I)A 84 23.3 32 66 2900 18.5 5 210
140 39 28 76
168 46.7 23.5 72
Model FlowQ Head Efficiency Speed Motor Power(KW) (NPSH) Weight(Kg)
(m3/h) (1/s) (m) (%) (r/min)
100-200(I) 96 26.7 53 69 2900 37 5.2 402
160 44.4 50 79
192 53.3 45 78
100-200(I)A 84 23.3 48 64 2900 30 4.5 395
140 39 45 74
168 46.7 40 73
100-200(I)B 60 16.7 43 72 2900 22 4.5 360
100 27.8 40
120 33.3 36
100-250(I) 96 26.7 83 65 2900 55 4.8 560
160 44.4 80 77
192 53.3 72 74
100-250(I)A 84 23.3 75 60 2900 45 4.5 420
140 39 72 72
168 46.7 65 69
100-250(I)B 60 16.7 68 70 2900 37 4.5 400
100 27.8 65
120 33.3 58
100-350 60 16.7 153.6 72 2900 90 4 950
100 27.8 150 57
120 33.3 142 74
100-350A 61 16.9 145.6 75 2900 75 4 830
87 24.2 142
113 31.4 134
100-350B 58 16.1 138.6 75 2900 55 4 600
82 22.8 135
107 29.7 127
125-100 96 26.7 13 82 2900 11 4 180
160 44.4 12.5
192 53.3 12
125-100A 86 23.9 10.4 77 2900 7.5 4 125
143 39.7 10
172 47.8 9.6
125-125 96 26.7 22.6 80 2900 15 4 220
160 44.4 20
192 53.3 17
125-125A 86 23.9 18 77 2900 11 4 210
143 39.7 16
172 47.8 13.6
125-160 96 26.7 36 78 2900 22 4 265
160 44.4 32
192 53.3 28
125-160A 90 25 31.5 76 2900 18.5 4 230
150 41.7 28
180 50 24.5
125-160B 83 21.7 27 73 2900 15 4 215
138 38.3 24
166 46.1 21
125-200 96 26.7 55 77 2900 37 5.5 395
160 44.4 50
192 53.3 46
125-200A 90 25 48.4 76 2900 30 5.5 380
150 41.7 44
180 50 40.5
125-200B 83 21.7 41.3 75 2900 22 5.5 320
138 38.3 37.5
166 46.1 34.5
125-250 96 26.7 87 75 2900 55 5 580
160 44.4 80
192 53.3 73
125-250A 90 25 76 74 2900 45 5.5 490
150 41.7 70
180 50 84
125-250B 83 21.7 65 73 2900 37 5.5 430
138 38.3 60
166 46.1 55
125-315 96 26.7 133 70 2900 90 5 790
160 44.7 125
192 53.3 119
125-315A 90 25 117 70 2900 75 5 710
150 41.7 110
180 50 104.6
125-315B 86 23.9 106.4 69 2900 75 5 705
143 39.7 100
172 47.8 95.2
125-315C 80.5 22.4 96 67 2900 55 5 585
134 37.2 88
161 44.7 86
150-125 96 26.7 22.6 66 2900 11 4 210
160 44.4 24 76
192 53.3 17 76
150-125A 90 25 18 77 2900 7.5 4 130
150 41.7 16
180 50 13.6
150-160 96 26.7 36 75 2900 22 4 270
160 44.4 32
192 53.3 27
150-160A 90 25 32 76 2900 18.5 4 230
150 41.7 28
180 50 23.5
150-160B 84 23.3 27 73 2900 15 4 220
140 39 24
168 46.7 21
150-200 140 38.9 13.8 68 1450 15 3 265
200 55.6 12.5 78
260 72.2 10.6 78
150-200A 125 34.7 11 66 1450 11 3 244
176 49.7 10 76
232.5 64.6 8.5 76
Model FlowQ Head Efficiency Speed Motor Power(KW) (NPSH) Weight(Kg)
(m3/h) (1/s) (m) (%) (r/min)
150-200B 84 23.3 41 75 2900 22 4 275
140 39 38
168 46.7 34
150-250 140 38.9 21.8 73 1450 18.5 3 300
200 55.6 20 79
260 72.2 17 77
150-250A 129 35.8 18.5 72 1450 15 3 262
184.4 51.2 17 78
240 66.7 14.4 76
150-250B 117 32.5 15.2 76 1450 11 3 241
167 46.4 14
217.5 60.4 12
150-315 140 38.9 33.8 70 1450 30 2.5 410
200 55.6 32 78
260 72.2 28 73
150-315A 131 36.4 29.5 69 1450 22 3.5 335
187 51.9 28 77
243 67.5 24.5 77
150-315B 121 33.5 25 76 1450 18.5 3.5 315
173 48.1 24
225 62.5 21
150-350 96 26.7 153.6 80 2900 110 5.5 970
160 44.4 150
192 53.3 142.8
150-350A 90 25 145.6 70 2900 90 5.2 790
150 41.7 142
180 50 134.8
150-350B 84 23.3 138.6 65 2900 75 5.5 705
140 39 135 76
168 46.7 127.8 74
150-400 140 38.9 53 68 1450 45 3.5 490
200 55.6 50 75
260 72.2 44 71
150-400A 131 36.4 46.6 67 1450 37 3.5 454
187 51.9 44 74
243 67.5 38.3 70
150-400B 122 33.9 40 73 1450 30 3.5 435
174 48.3 38
226.5 62.9 33
150-400C 112 31.1 34 71 1450 22 3.5 365
160 44.4 32
208 57.8 28
150-250(I) 120 33.3 87 65 2900 75 4.5 702
200 55.6 80 76
240 66.7 72 74
150-250(I)A 112 31.1 76 64 2900 55 4.5 561
187 51.9 70 75
224 62.2 63 73
150-250(I)B 104 28.9 65 63 2900 45 4.5 460
173 48.1 60 74
208 57.8 54 72
150-315(I) 120 33.3 133 58 2900 110 4.5 980
200 55.6 125 73
240 66.7 120 75
150-315(I)A 112 31.1 116 57 2900 90 4.5 800
187 51.9 110 72
224 62.2 105 74
150-315(I)B 104 28.9 100 55 2900 75 4.5 724
173 48.1 95 70
208 57.8 91 72
200-200 140 38.9 13.8 68 1450 15 3 265
200 55.6 12.5 78
260 72.2 10.5 78
200-200A 125 34.7 11 66 1450 11 3 244
179 49.7 10 76
232.5 64.6 8.5 76
200-250 140 38.9 21.8 73 1450 18.5 3 305
200 55.6 20 79
260 72.2 17 77
200-250A 129 35.8 18.5 72 1450 15 3 267
184.4 51.2 17 78
240 66.7 14.4 76
200-250B 117 32.5 15.2 76 1450 11 3 246
167 46.4 14
217.5 60.4 12
200-315 140 38.9 33.8 70 1450 30 3.5 417
200 55.6 32 78
260 72.2 28 78
200-315A 131 36.4 29.5 69 1450 22 3.5 342
189 51.9 28 77
243 67.5 24.5 77
200-315B 121 33.6 25 76 1450 18.5 3.5 322
173 48.1 24
225 62.5 21
200-400 140 38.9 53 68 1450 45 3.5 498
200 55.6 50 75
260 72.2 44 71
200-400A 131 36.4 46.6 67 1450 37 3.5 462
187 51.9 44 74
243 67.5 38.3 70
200-400B 122 33.9 40 73 1450 30 3.5 443
174 48.6 38
226.5 62.9 33
200-400C 112 31.3 34 71 1450 22 3.5 373
160 44.4 32
208 57.8 28
Model FlowQ Head Efficiency Speed Motor Power(KW) (NPSH) Weight(Kg)
(m3/h) (1/s) (m) (%) (r/min)
200-200(I) 280 77.8 13.4 70 1450 22 4 382
400 111.1 12.5 80
520 144 10.5 79
200-200(I)A 250 69.4 10.7 68 1450 18.5 4 346
358 90.4 10 73
465 129.2 8.5 77
200-250(I) 280 77.8 22.2 75 1450 30 4 475
400 111.1 20 80
520 144 14 72
200-250(I)A 250 69.4 18 73 1450 20 4 405
358 99.4 16 78
465 129.2 11.2 70
200-250(I)B 226 62.8 14.4 70 1450 18.5 4 387
322 89.4 13 75
419 116.4 7.3 67
200-315(I) 280 77.8 36 73 1450 55 4 675
400 111.4 32 80
520 144 26 75
200-315(I)A 262 72.8 31.5 72 1450 45 4 560
374 103.9 28 79
486 135 23 74
200-315(I)B 242 67.3 27 78 1450 37 4 535
346 96.1 24
450 125 19.5
200-400(I) 280 77.8 54.5 75 1450 75 4 830
400 111.4 50 81
520 144 39 77
200-400(I)A 262 72.8 48 80 1450 75 4 830
374 103.9 44
486 135 34
200-400(I)B 242 67.2 41.4 78 1450 55 5 685
346 96.1 38
450 125 29.6
200-400(I)C 224 62.2 34.9 76 1450 45 5 580
320 88.9 32
416 115.6 25
250-250 350 97.2 22 78 1450 45 5 620
550 152.8 20 82
650 180.5 16 81
250-250A 300 83.3 18.3 76 1450 37 5 550
500 139 17 80
600 166.7 14 80
250-235 300 83.3 14 73 1480 22 4.5 410
500 139 12.5 78
600 166.7 11 70
250-300 300 83.3 22 78 1480 37 4.5 550
500 139 20
600 166.7 16
250-315 350 97.2 34 76 1450 75 5.5 890
550 152.8 32 80
650 180.5 28 79
250-315A 300 83.3 29.5 74 1450 55 5.5 690
500 139 28 78
600 166.7 24 77
250-315B 260 72.2 25 70 1450 45 5.5 620
450 125 24 74
520 144.4 20 72
250-400 300 83.3 54.5 72 1480 90 4.5 1530
500 139 50
600 166.7 39
300-235 480 133.3 20 77 970 55 5 1120
720 200 18 81
900 250 15.5 74
300-235A 438 121.7 16.5 75 970 45 5 1030
607 182.5 15 79
821 228.1 13 72
300-235B 400 111.1 14 73 970 37 5 890
600 167 12.5 77
750 208.3 11 70
300-300 480 133.3 31 77 970 75 5 1350
720 200 28 81
900 250 25 77
300-300A 444 123.3 26.5 76 970 75 5 1350
666 185 24 80
833 231.4 21.5 76
300-300B 415 115.3 23 79 970 55 5 1170
623 173.1 21
779 261.4 18.5
300-380 480 133.3 48 84 970 132 5 1900
720 200 44
900 250 34
300-380A 444 123.3 41.4 80 970 110 5 1700
666 185 38
833 231.4 30
300-380B 409 113.6 35 78 970 90 5 1530
614 170.6 32
767 213.1 25
300-235(I) 718 199.4 44.6 82 1450 160 5.5 1680
1080 300 40
1345 373.6 34.6
300-235(I)A 642 178.3 35.7 80 1450 132 5.5 1440
965 268.1 32
1203 334.2 27.7
350-320 1200 333.3 20 80 1450 110 6 /
350-320A 1080 300 17 78 1450 75 6 /
350-390 1200 333.3 32 78 1450 160 6 /
350-390A 1080 300 28 76 1450 132 6 /
350-460 1200 333.3 50 74 1450 250 6 /
350-460A 1080 308 44 72 1450 200 6 /
500-470 2000 555.5 20 80 980 160 6 /
500-470A 1800 500 17 78 980 132 6 /

Inquiry/Feedback to our sales office

The easy and safe way to contact us

verifyImg

More way to contact us

Tel: 86-23-68428875,68428422,68838417

Fax: 86-4008266163-88928

Email: sales@jinbomarine.com

You Have Visited
