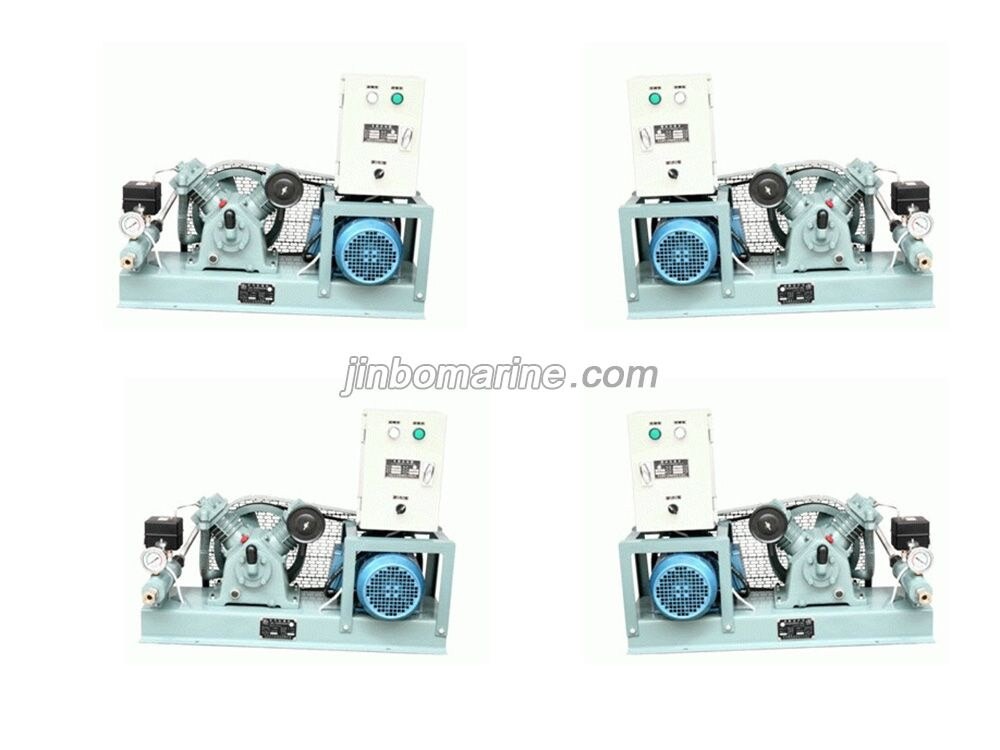

CZF-6/1 Type Marine Low Pressure Air Compressor
- Category:Low Pressure Air Cooled Marine Air Compressor
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China CZF-6/1 Type Marine Low Pressure Air Compressor:
Model: CZF-6/1
Type: single, air-cooled, piston
Displacement: 6.0 m3 / h
Rated pressure: 1.0 MPa
Product features
The product has a simple structure, small volume, low energy consumption, low noise, and long service life.
Type has a single row, V, W, the secondary compression piston.
Low energy consumption, low noise, long service life.
Products with manual/automatic stop, start, and unloading relief function.
Apply to ship whistle, oil and gas stove and ancillary equipment required for air.
Easy to maintenance.
Specification
| Model | Displacement Capacity（m3/h） | Specified | Rotating | Motor Power | Dimension（L×W×H）mm | Weight（kg） | |
| Pressure（MPa） | Speed（r/min） | kW | HP | ||||
| CZF—6/1 | 6 | 1 | 930 | 1.1 | 1.5 | 800×390×630 | 75 |
