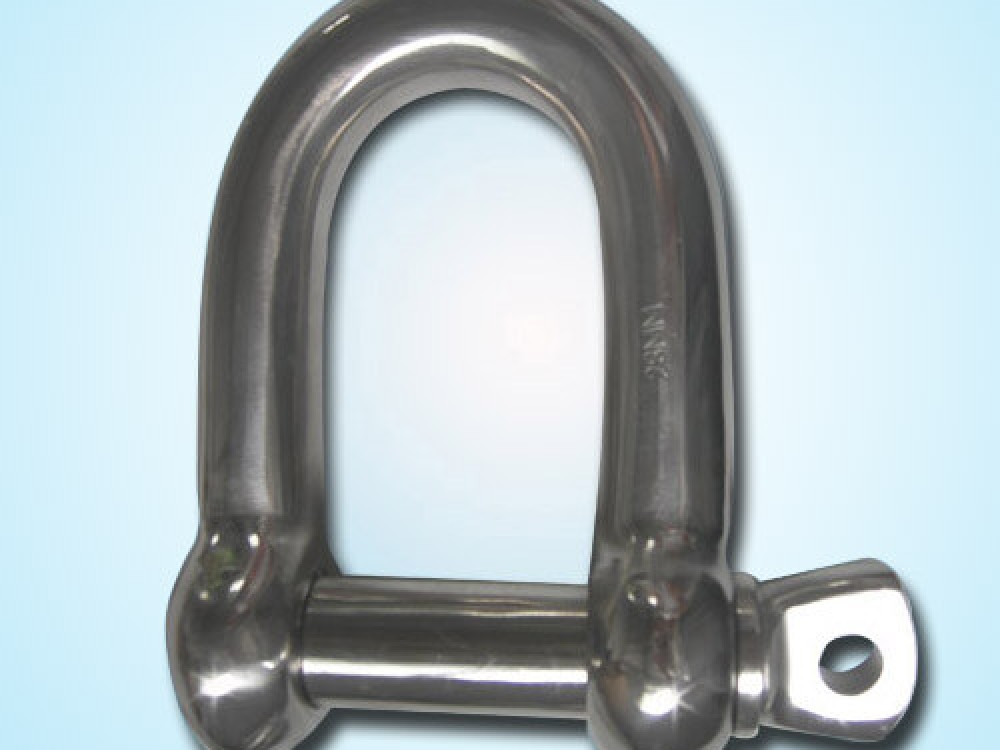

D-Shackle (With Square Head Pin),SS304 OR SS316
- Category:Shackle
- Material:Stainless steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China D-Shackle (With Square Head Pin),SS304 OR SS316:
,SS304-OR-SS316-3.jpg)
|
SIZE mm |
A mm |
B mm |
L mm |
SWL kgs |
BL kgs |
| 4 | 4 | 8 | 14 | 137.5 | 550 |
| 5 | 5 | 10 | 17.5 | 250 | 1000 |
| 6 | 6 | 12 | 21 | 425 | 1700 |
| 8 | 8 | 16 | 28 | 625 | 2500 |
| 10 | 10 | 20 | 35 | 1025 | 4100 |
| 12 | 12 | 24 | 42 | 1350 | 5400 |
| 16 | 16 | 32 | 56 | 2200 | 8800 |
| 19 | 19 | 38 | 66 | 4000 | 16000 |
| 22 | 22 | 44 | 77 | 4750 | 19000 |
| 25 | 25 | 50 | 87.5 | 5250 | 21000 |
