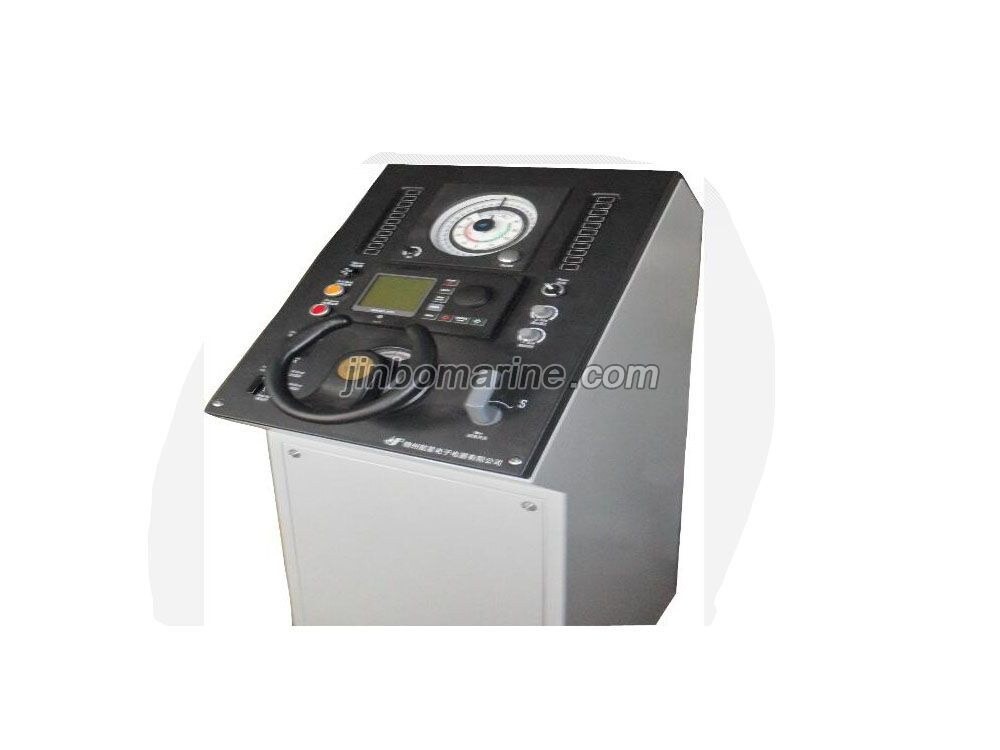

DD102-ZT Automatic Pilot

The main steering instrument in the cab has alarm display, steering gear start control, steering control, and rudder angle indication.
1. Power supply: AC380V 50Hz; AC220V 50Hz; DC24V;
A: Three-phase 380V ±5%
B: AC220V ±5%
C: DC24V 3A +30% ~ -10%
2. Steering mode: automatic, follow-up, manual;
3. Steering range: ±35 º;
4. Steering accuracy: ≤1 º;
5. Dead zone: 0.5 º~2 º adjustable;
6. Double pumps can work in manual operation mode;
7. Alarm range: power loss, overload, phase failure, control loss, low oil level, high oil temperature, oil filter blockage, pressure difference; and has alarm test function and automatic reset function after silence. At the same time, it can provide passive extended normally open alarm contacts.
8. Solenoid valve parameters: DC24V, rated current ≤ 3A;
