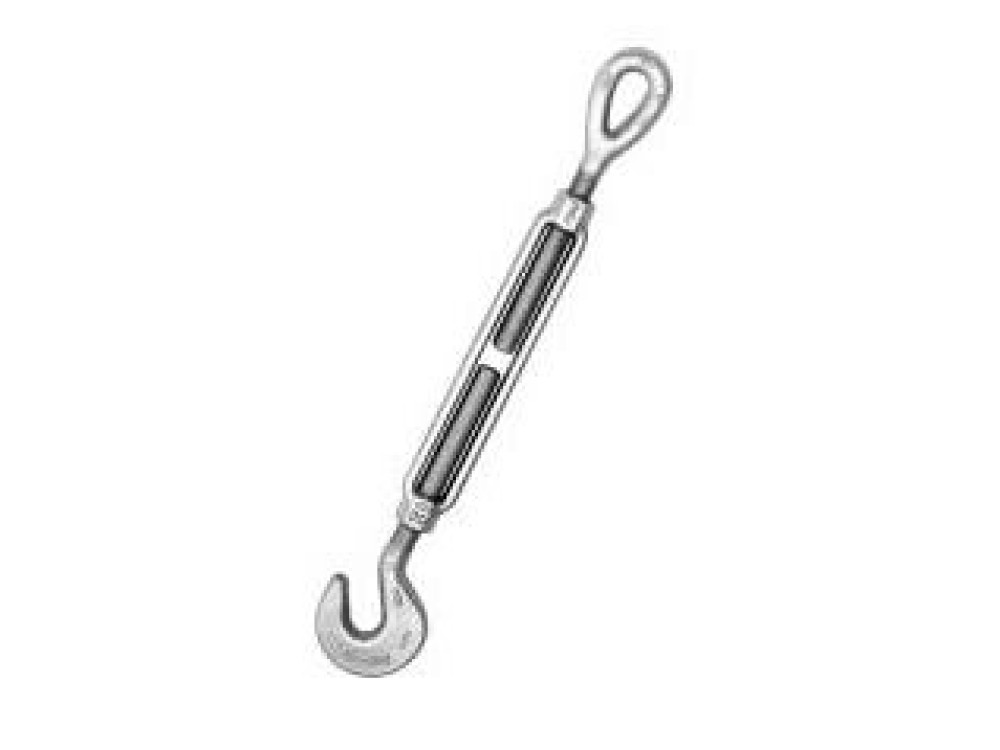

Hook & Eye Turnbuckles HG-225 ,SS304 ORSS316

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Hook & Eye Turnbuckles HG-225 ,SS304 ORSS316:

THREAD
DIAMETER &TAKE UP (mm) 		WEIGHT
EACH (kg) 		DIMENSIONS
A D E
CLOSED 		F J
OPEN 		K
CLOSED 		M
OPEN 		N
CLOSED 		R S X
CLOSED 		BB
6.35x102 0.14 6.35 11.2 42.3 32.3 296 195 312 211 20.6 8.86 44.6 103
7.94x114 0.23 7.94 12.7 50.7 38.1 343 229 363 248 24.1 11.2 55.8 116
9.53x152 0.36 9.53 14.2 57.8 44.7 434 282 458 306 28.7 13.5 62.9 155
12.7x 152 0.82 12.7 16.5 89.7 57.9 497 345 528 376 35.8 18 90.4 153
12.7x305 1.22 12.7 16.5 89.2 57.9 809 504 840 535 35.8 18 89.9 314
15.9x152 1.35 15.9 22.9 108 71.4 536 384 574 422 45.7 22.4 110 153
15.9x305 1.97 15.9 22.9 107 71.4 850 545 888 583 45.7 22.4 110 315
19.1 x 152 1.91 19.1 24.9 129 84.6 574 422 621 469 53.1 25.4 130 156
19.1 x305 2.96 19.1 24.9 128 84.6 889 584 936 631 53.1 25.4 129 320
19.1 x 457 3.74 19.1 24.9 129 84.6 1194 737 1241 784 53.1 25.4 130 471
22.2x305 4.24 22.2 28.7 148 96 917 612 971 666 60.5 31.8 147 309
25.4x305 6.29 25.4 31.8 167 108 956 652 1018 713 76.2 36.3 165 309
