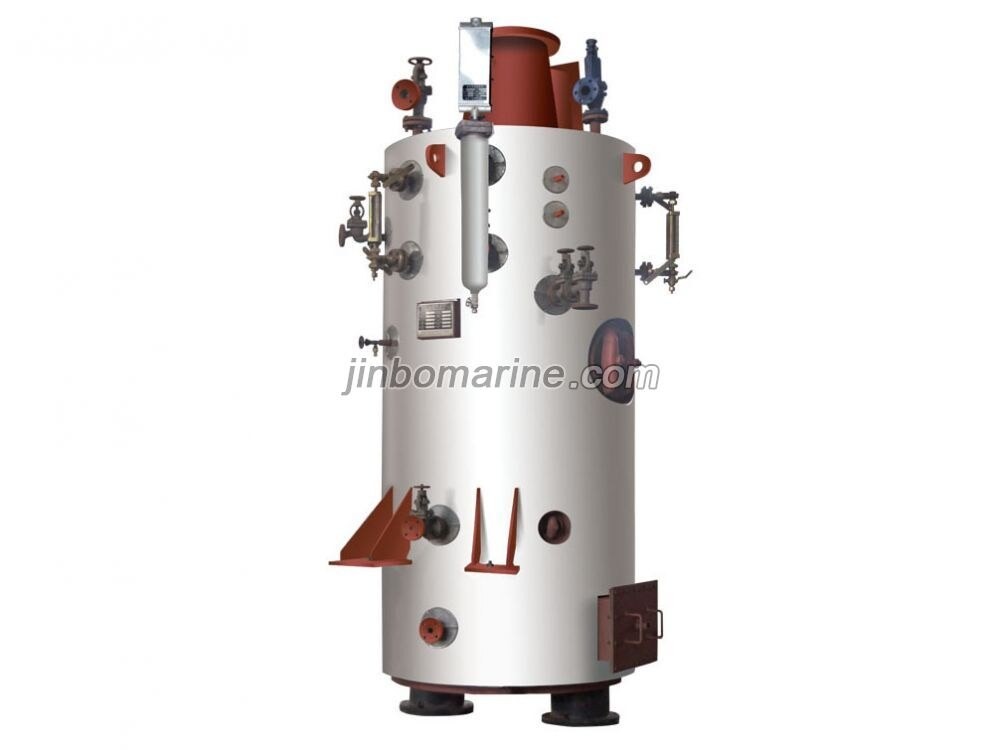

LFL Marine Exhaust Gas Boiler

Request a Quote Not what you need, please send your RFQs via Email.

Details

China LFL Marine Exhaust Gas Boiler:

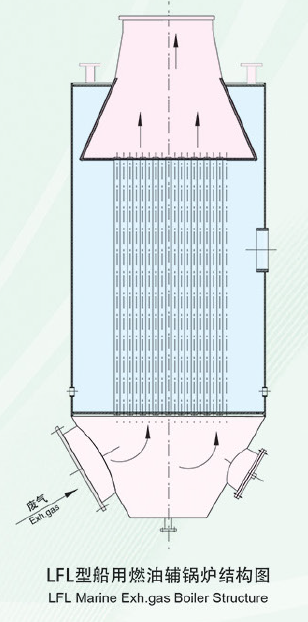

LFL vertical exhaust gas boiler, flue gas pipe is below the normal water level, avoiding oxygen corrosion and stress corrosion caused by temperature change at the steam-water interface, and improving the reliability and service life of the boiler.

Product characteristics:

1. The flue gas pipe is below the normal water level, which avoids the oxidation corrosion caused by humidity near the water level and the corrosion caused by the change of temperature and stress during operation.

2. The boiler has a cleaning door and a lower ash-water discharge pipe, which makes the boiler easy to maintain.

3. Dry operation in case of emergency.

Product advantages:

1. LYF vertical flue gas boiler can be designed according to the data of main engine exhaust gas and evaporation requirement.

2. The specific size and orifice of the boiler can be designed according to the actual needs of the users.

Technical data:

Modle Exhaust Gas
Heating Are(m2)
Working Pressure
(Mpa)

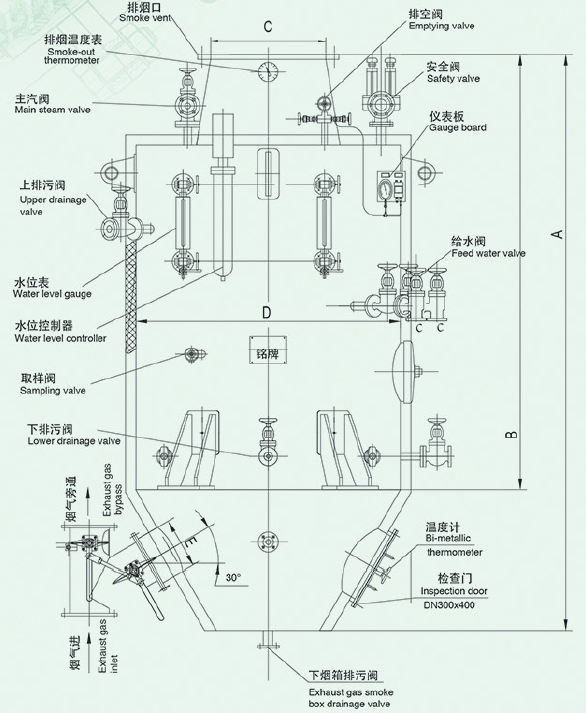

Dimension(mm) Steam Vaporation
(kg/h)
A B E C D
LFL20-0.7 20 0.7 2870 2270 DN400 DN400 Φ1120 150
LFL25-0.7 25 3170 2570 DN400 DN400 Φ1120 200
LFL36-0.7 36 3440 2840 DN400 DN400 Φ1236 300
LFL50-0.7 50 3700 3000 DN500 DN500 Φ1336 350
LFL55-0.7 55 3900 3200 DN500 DN500 Φ1336 370
LFL67-0.7 67 3750 3000 DN700 DN700 Φ1600 450
LFL70-0.7 70 3850 3100 DN700 DN700 Φ1600 470
LFL80-0.7 80 4120 3370 DN700 DN700 Φ1600 550
LFL90-0.7 90 4000 3100 DN800 DN800 Φ1800 600
LFL100-0.7 100 4210 3310 DN800 DN800 Φ1800 700
LFL120-0.7 120 4210 3310 DN800 DN800 Φ1900 800
LFL130-0.7 130 4210 3310 DN800 DN800 Φ1900 900
LFL140-0.7 140 4380 3480 DN800 DN800 Φ2000 1000
LFL160-0.7 160 4350 3350 DN900 DN900 Φ2200 1100
LFL180-0.7 180 4950 3950 DN1000 DN1000 Φ2200 1200
LFL200-0.7 200 4950 3950 DN1000 DN1000 Φ2300 1300
LFL240-0.7 240 5250 3950 DN1100 DN1100 Φ2600 1600
LFL260-0.7 260 5250 3950 DN1200 DN1200 Φ2600 1700
LFL280-0.7 280 5450 4150 DN1200 DN1200 Φ2600 1900
