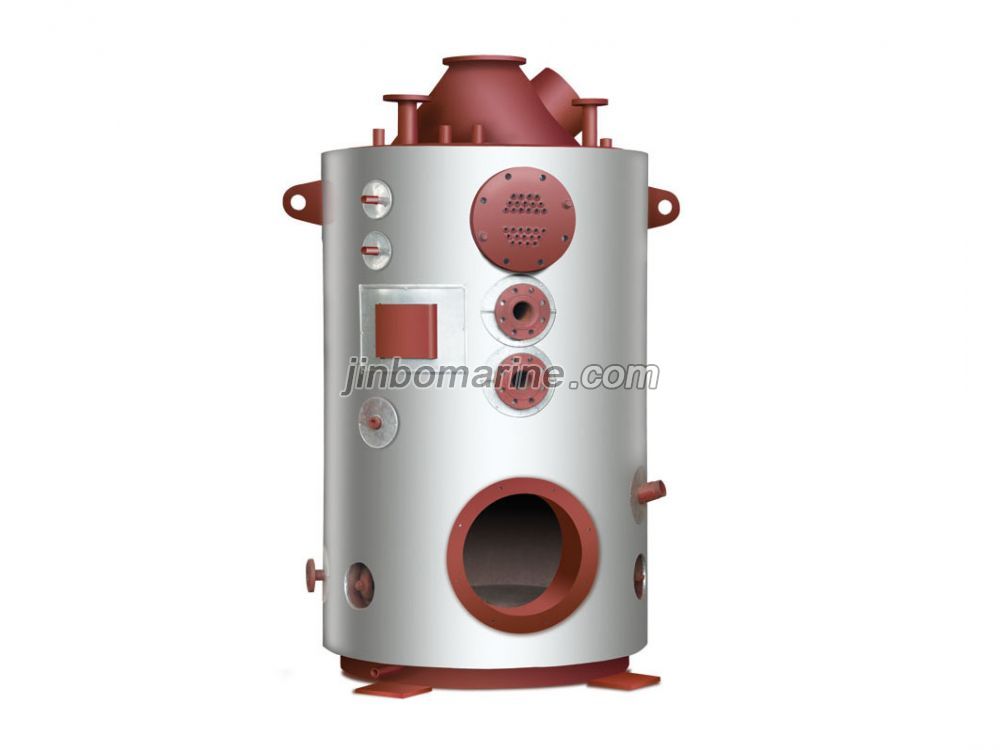

LRS Marine Oil Fired Hot Water Boiler
- Category:Marine Boiler
- Certificate:CCS, GL, LR, BV, DNV, ABS, NK, KR, RMRS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
LRS Marine Oil-Fired Hot Water Bolier
Characteristic:
Vertical type
Convection heating surface is of pin tube structure
Compact construction and higher heat exchange efficiency
Applicable for heating for marine fuel, chemicals and living
Technical data:
| Modle |
Rated Heat Supply
Capacity KW (30x10Kcal) |
Working Pressure (Mpa) |

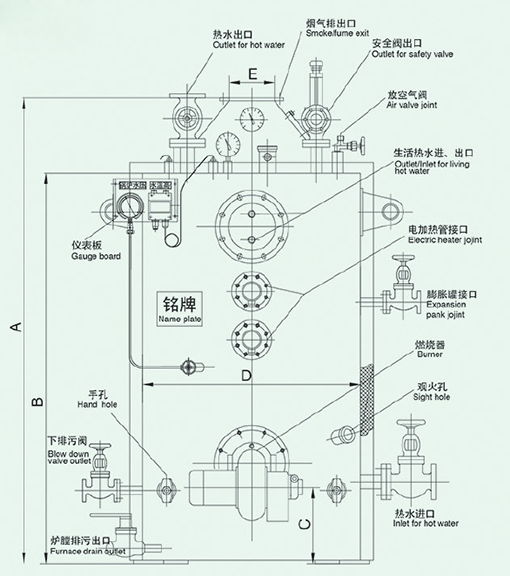

Dimension(mm) | ||||
| A | B | C | D | E | |||
| LRS150-0.5 | 20 | 0.5 | 2400 | 2100 | 420 | Φ1050 | DN150 |
| LRS210-0.5 | 30 | 2580 | 2230 | 470 | Φ1250 | DN200 | |
| LRS250-0.5 | 36 | 2600 | 2300 | 470 | Φ1250 | DN200 | |
| LRS350-0.5 | 55 | 2740 | 2390 | 520 | Φ1400 | DN250 | |
| LRS700-0.5 | 80 | 3560 | 3160 | 600 | Φ1450 | DN300 | |
