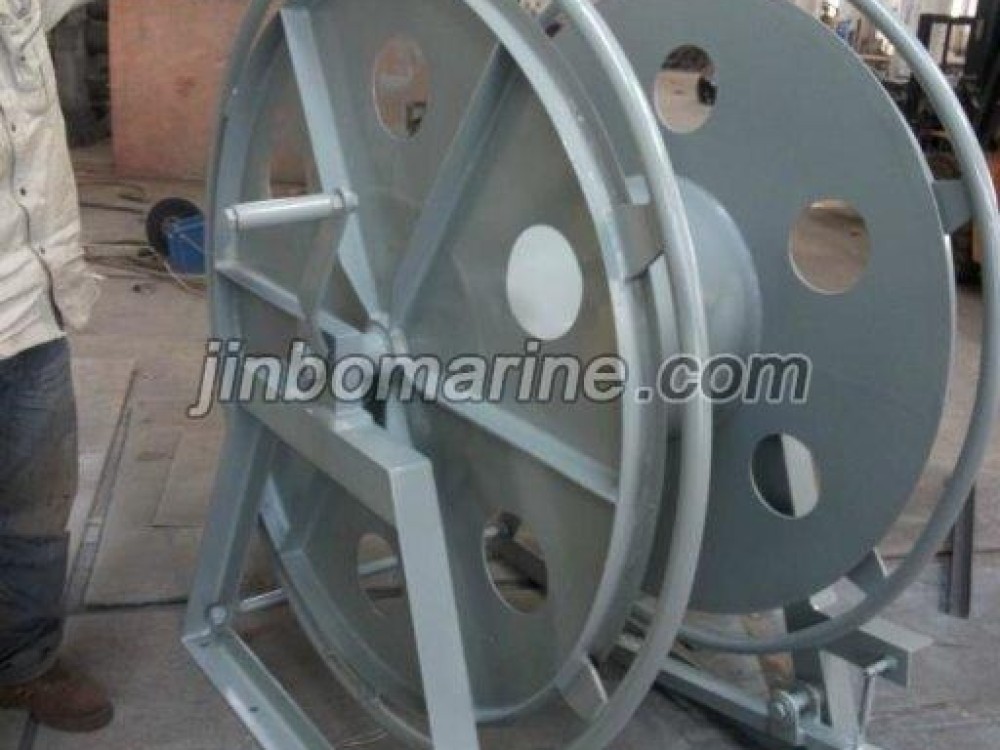

Manual Winch

General description

Manual Winch is designed simple and functional. Pull capacity from 1-160kn.Mounted on the manual winch handle of rotary actuator stop (ratchet wheel and pawl), can keep the weight in the location of the need. Assembly or ascension weight with manual winch should also set up the handle and brake. Manual winch generally used in the small weight, establishment conditions with poor or no power.

Technical parameter

Type

Pull

Ratio

Hand length(MM)

Drum diam(MM)

Wire diam(MM)

1T

10KN

3.23

210

120

6

3T

30KN

3.83

230

150

8

5T

50KN

4.84

320

180

10

8T

80KN

4.83

350

250

14

10T

100KN

4.83

360

280

14

12T

120KN

4.86

360

300

15

16T

160KN

5.11

380

350

16
