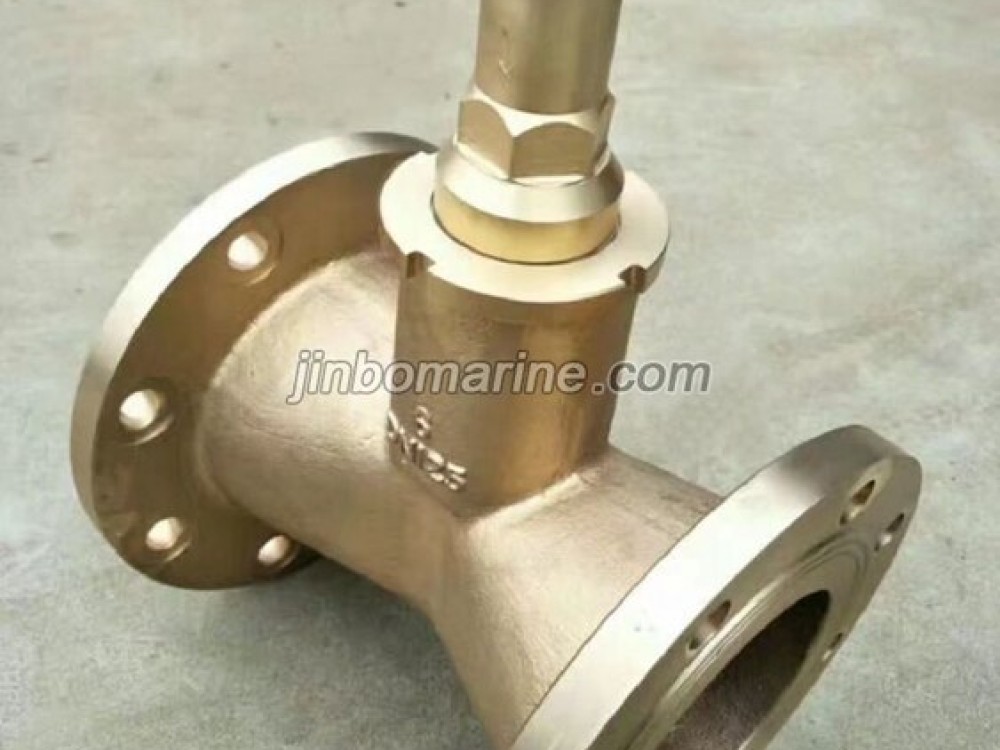

Marine Bronze Throttle Valve CB/T314-1994

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Throttle Valve CB/T314-1994:

Marine Flanged Bronze Throttle Valve is the throttle valve used on the marine sea water, fresh water and oil pipe system, controls the flow rate by changing the throttle section.

Specification:

Design Standard: CB/T314-1994

Flange Standard: GB569 (Type A/B), GB2501(Type AS/BS)

Test Standard: GB600

Nominal Pressure: 0.6Mpa

Nominal Size: DN32~100

Material: Bronze

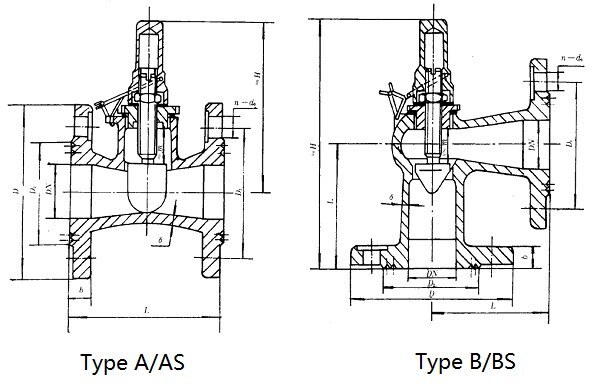

Maine Size(mm):

Type A/B:

DN L H Flange Size Bolt
Type A Type B Type A Type B D D1 D2 d0 b n(pcs) Th.
32 105 85 117 178 115 83 64 15 13 6 M14
40 115 90 125 182 125 93 74 15 14 6 M14
50 130 95 161 215 135 103 84 15 14 6 M14
65 150 105 179 230 155 123 104 15 14 6 M14
80 180 115 199 252 170 138 118 15 14 8 M14
100 200 125 234 307 190 158 138 15 14 8 M14

Type AS/BS:

DN L H Flange Size Bolt
Type AS Type BS Type AS Type BS D D1 D2 d0 b n(pcs) Th.
32 109 87 117 180 120 90 70 14 15 4 M12
40 119 92 125 184 130 100 80 14 16 4 M12
50 136 98 161 218 140 110 90 14 17 4 M12
65 156 108 179 233 160 130 110 14 17 4 M12
80 190 120 199 257 190 150 128 18 19 4 M16
100 212 131 234 313 210 170 148 18 20 4 M16
