Marine CV-6/10F Marine Low Pressure Air Cooled Air Compressor
Description: 1. It adopts two-stage compression, small volume and low noise; 2. Automatic control, high and low pressure automatic start and stop, automatic unloading and sewage ...
Loading product images...

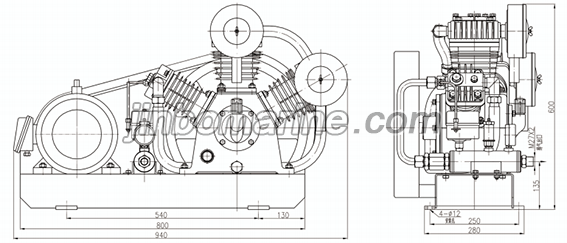

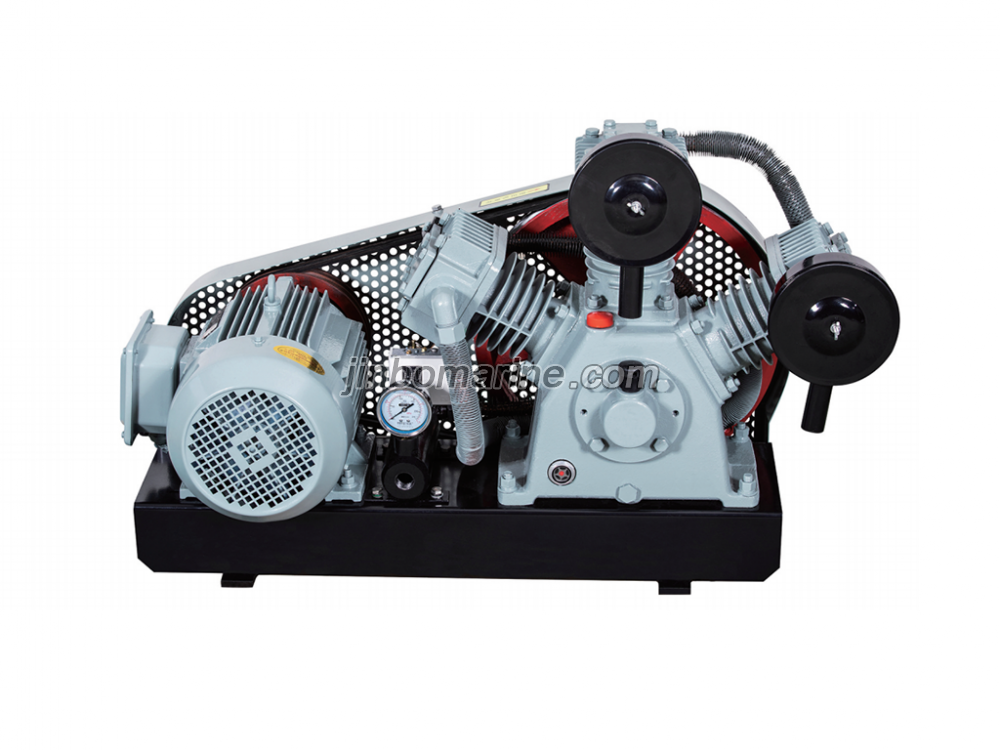

Marine CV-6/10F Marine Low Pressure Air Cooled Air Compressor
PDF Datasheet
We can supply according to your requirement.
Description:
1. It adopts two-stage compression, small volume and low noise;
2. Automatic control, high and low pressure automatic start and stop, automatic unloading and sewage discharge;
3. Obtain the factory type approval of classification society and provide the certification certificate of classification society;
4. Customized according to customer requirements.
Data sheet:
| Model | Volume flow m3/min | Exhaust pressure MPa | Power kW | Frequency Hz | Rated speed r/min | Weight kg | L x W x H mm |
| CV-6/10F | 6 | 1 | 1.5 | 50/60 | 930 | 70 | 740x350x380 |
