Marine Fish Finder

Request a Quote Not what you need, please send your RFQs via Email.

Details

Marine Fish finder

General description

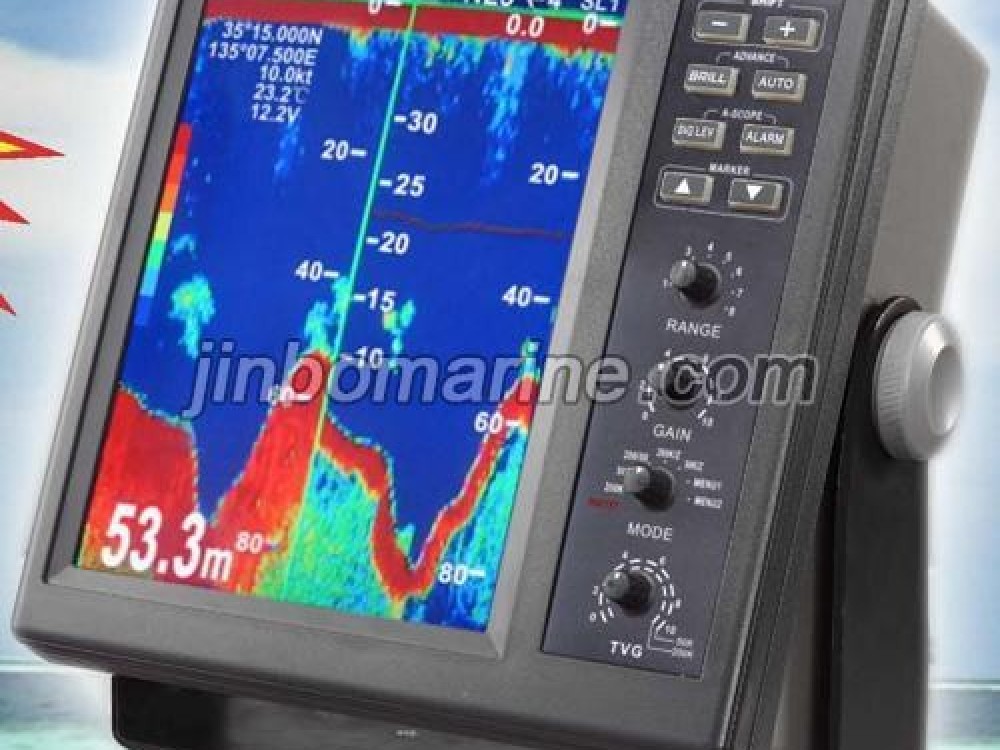

The KF-1067 is one of the many developments in the field of echo sounding. The compact, lightweight but rugged unit is easy to install and operate and is suitable for both fresh and saltwater application.

Advantages

  • Choice of frequency 50KHz, 200KHz or 50 &200Khz(Dual frequency)
  • Choice of output power 1kw or 2kw
  • 10.4” TFT LCD display with 8-color or multi-level amber presentation
  • Auto Mode for hands-off operation
  • Variety of display modes A-scope, bottom-lock expansion, marker zoom and unique bottom zoom displays
  • Compound temperature sensor option
  • Digital and Analog displays of navigational data
  • Five pulse lengths for excellent performance on both shallow and deep ranges
  • Universal 12-24 VDC power supply drawing 50w of power at maximum
  • Water temperature sensor optionally available

Specifications

  • Display: 10.4” color TFT LCD
  • Basic range: 5/10/20/40/80/150/300/600 meters, 15/30/60/120/200/400/1000/2000 feet, 3/5/10/20/40/80/150/300 Fathoms, 3/5/10/30/50/100/200/350 Passi
  • Range shift up to 300 meters
  • Bottom lock expansion range 5/10 meters
  • Interfere Rejecter: Rejects unwanted signals by comparing last and present echoes in strength
  • Input/output data: NMEA0183
  • Environmental condition: Ambient temperature 0-50c, relative humidity: 85% at +40c, water proofing: display unit IPX4
