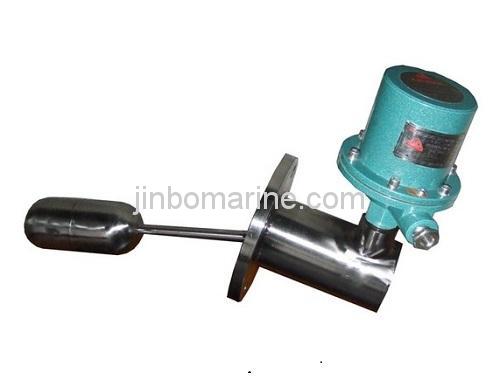

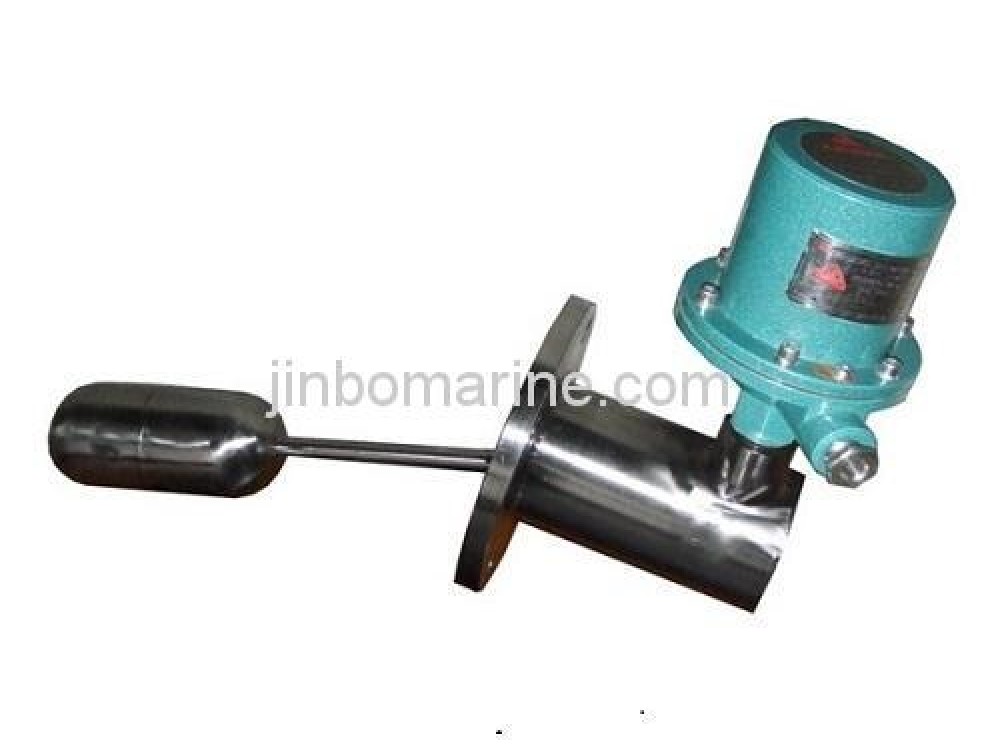

Marine Level Switch UQK-651
TECHNICAL SPECIFICATION: Model UQK-651-C UQK-651-C/B Mounting type Horizontal mo...
Loading product images...
Marine Level Switch UQK-651
PDF Datasheet
We can supply according to your requirement.
China Marine Level Switch UQK-651:
TECHNICAL SPECIFICATION:
| Model | UQK-651-C | UQK-651-C/B |
|---|---|---|
| Mounting type | Horizontal mounting | |
| Switch type | SPDT | |
| Contact capacity | SPDT AC 220/10A DC125V/0.6A | |
| Switching error | 20～70（mm） | |
| Medium gravity | ≥0.85 | |
| Medium temp | ≤200℃ | |
| Working pressure | 1.0MPa | |
| Protection | EXdIIBT3～T5 | |
| Protection | IP68 | |
| Flange standard | GB2506-89 | GB573-65 |
| Float dia D mm | Φ60 | |
