Permanent Magnet Generator
- Category:Marine Generator
- Standards:Standard
- Packing Details:Standard packing
- Delivery Time:7 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

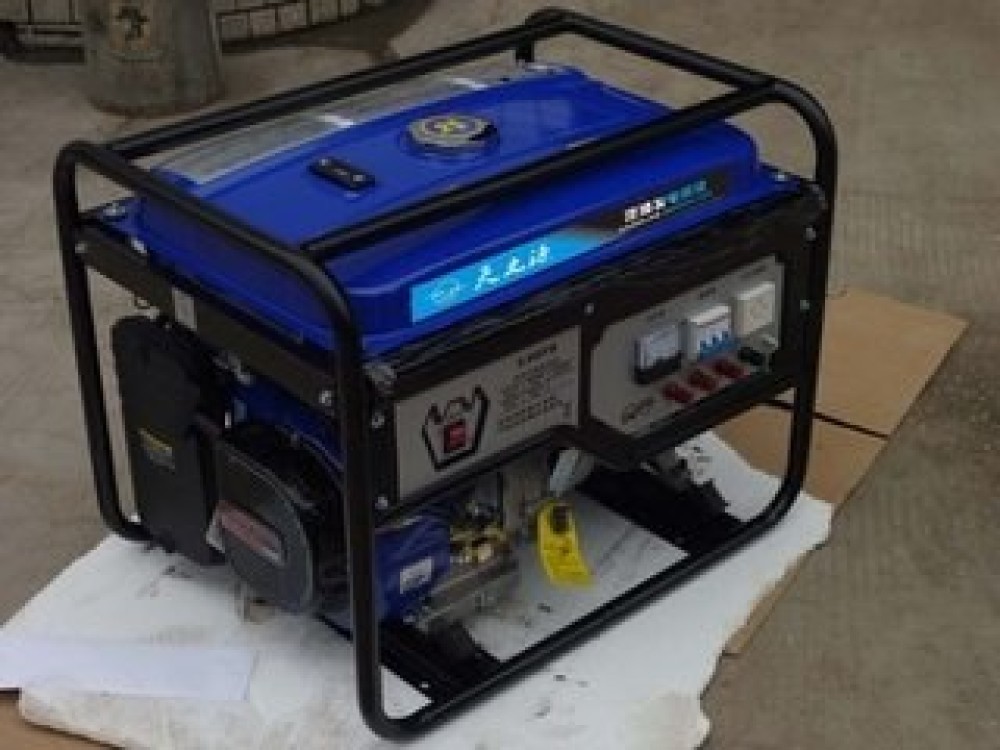

Permanent Magnet Generator
Parameter
| Permanent Magnet Generator | |||
| Generator | Model | 9500YC | 10000YC |
| Rated output power(KW) | 7 | 8 | |
| Max.power(KW) | 7.5 | 8.7 | |
| Rated frequency(Hz) | 50 | 50 | |
| AC voltage | 380/220 | 380/220 | |
| Power factor(cosā®) | 0.95 | 0.95 | |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 | |
| Noise level | 72 | 72 | |
| Fuel tank capacity(L) | 25 | 25 | |
| Structure type | Open Frame type | ||
| Engine | Engine Model | 190F | 190F |
| Type | Single cylinder,4-stroke,air-cooled OHV,gasoline engine | ||
| Displacement(ml) | 420 | 420 | |
| Max.output power(hp)/Speed(Rpm) | 15/3600 | 15/3600 | |
| Oil capacity(L) | 1.1 | 1.1 | |
| Ignition method | Transistor electric, inductive firing | ||
| starting method | Recoil start | ||
| Continuous work time(Hour) | 8 | 8 | |
| Options | Electric start system | Available | Available |
| 4-wheel vehicle set | Available | Available | |
| 2-Wheel and handle | Available | Available | |
| Side panel | Available | Available | |
| Pack | Packing size(mm) | 700x570x580 | 700x570x580 |
| Net weight(Kgs) | 85 | 85 | |
| Gross weight(Kgs) | 88 | 88 | |
| 20FT Qty | 136 | 136 | |
