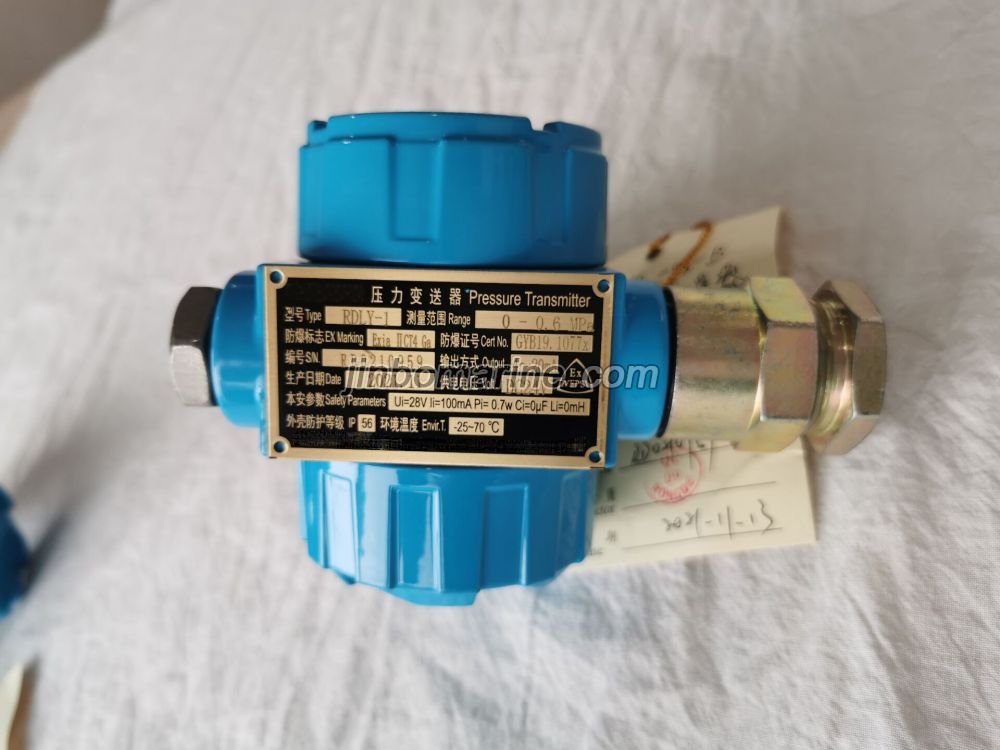

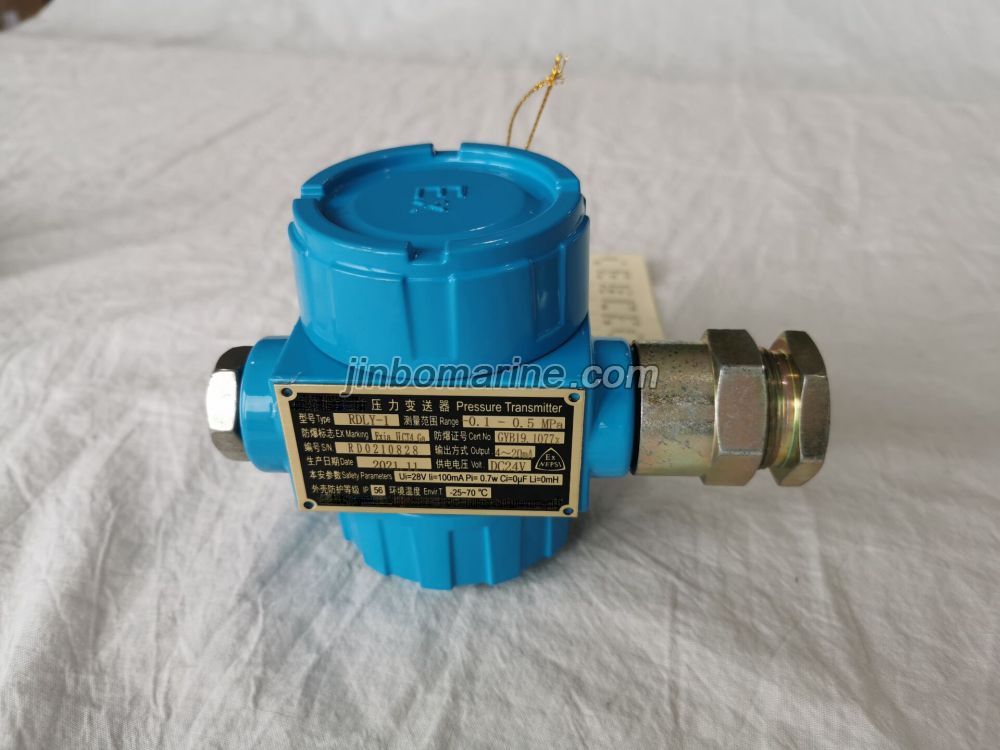

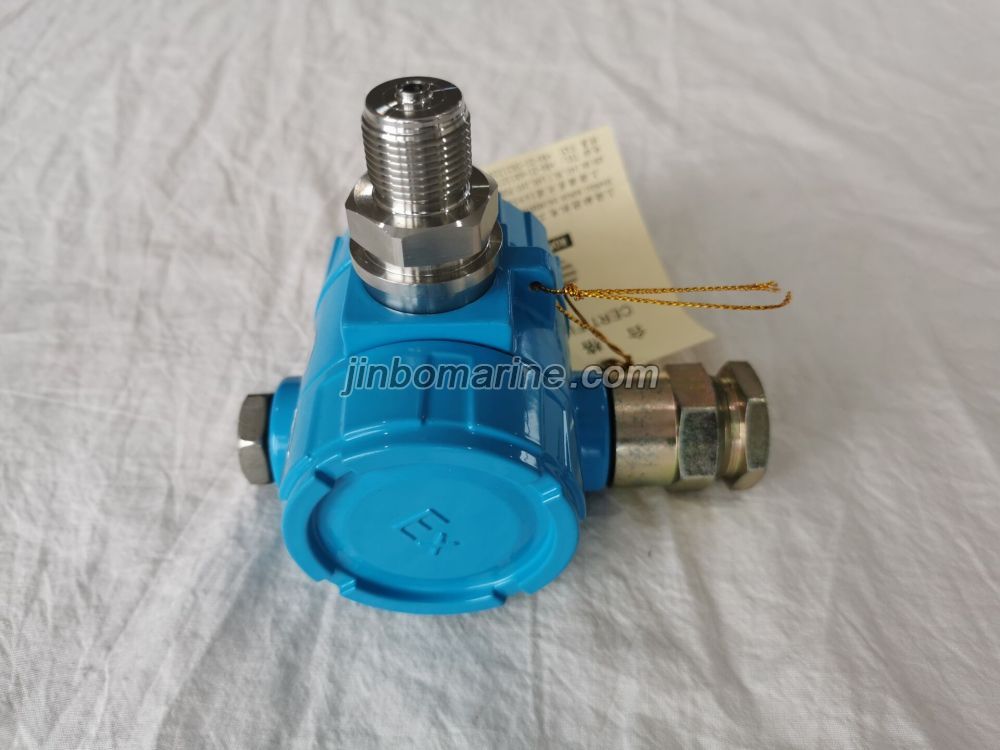

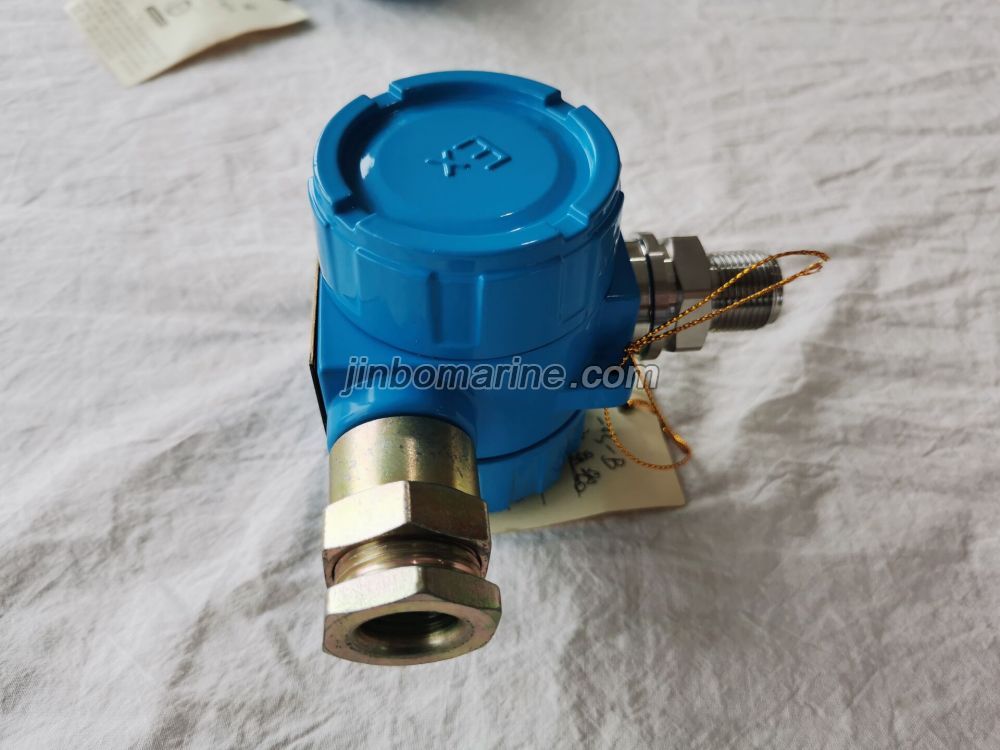

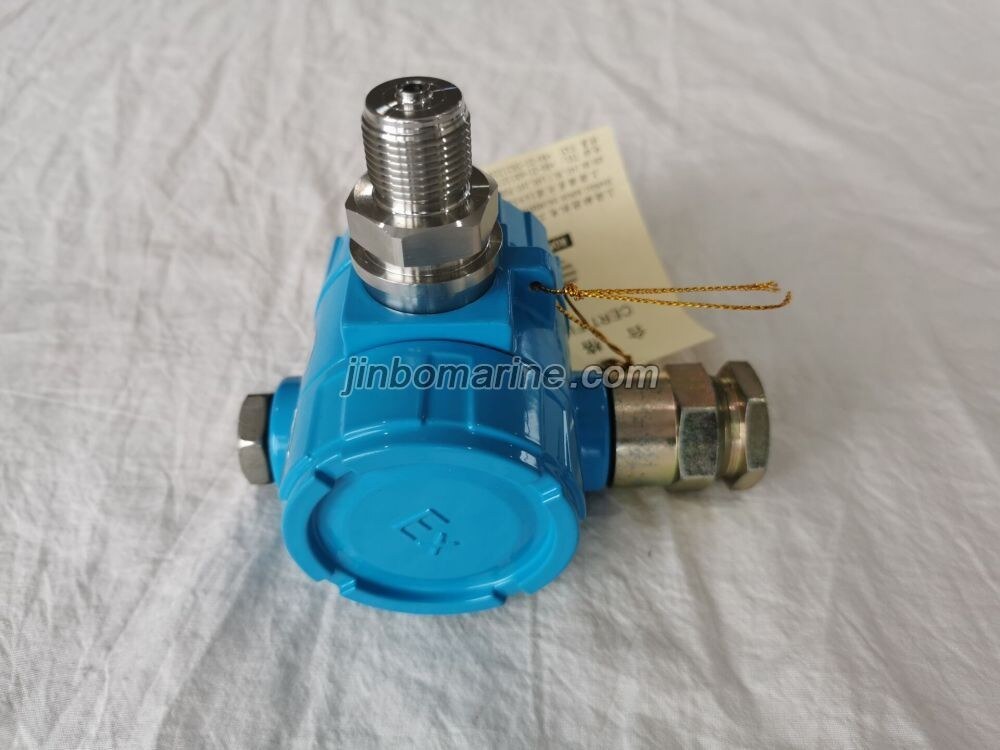

RDLY-1 Pressure Transmitter

Request a Quote Not what you need, please send your RFQs via Email.

Details

China RDLY-1 Pressure Transmitter:

RDLY series pressure transmitter is used to monitor pressure for liquied and air. Its electric wire is 2-wire. The transmitter can be widely used for oil tankers, oil field.

Power: DC24V -25% +30% Output signal: 4 20mA Ambient temperature: -25 +70 Ex marking: Exia CT6
Shell material: stainless steel, aluminum alloy
Accurancy class: 0.5
Working: 2wires
Accuracy: 0.5%FS
Overloading capacity: 2times range
Shell protection class: IP56 (RDLY-1/1a/1d/2a/2b/3a)
IP68 (RDLY-S/S-3/S-3HT/S-4HT) Enviromental temp.: -25 +70
Relative humidity: (10 95)
