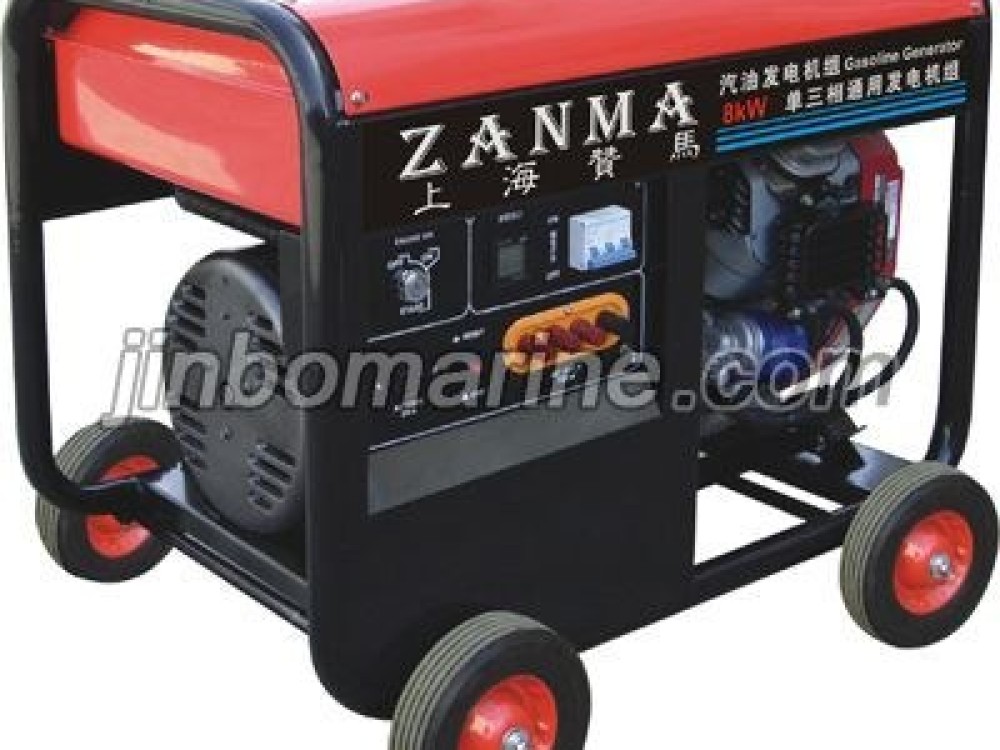

Two-cylinder gasoline generator
- Category:Marine Generator
- Standards:Standard
- Packing Details:Standard packing
- Delivery Time:7 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Two-cylinder gasoline generator
Parameter
| Two-cylinder gasoline generator | |||||
| Generator | Model | 10000D | 12000D | 11000CXE | 13000CXE |
| Rated output power(KVA) | 10 | 12 | 11 | 13 | |
| Max.power(KVA) | 11 | 13 | 13 | 14 | |
| Rated frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | |
| 1-Phase AC voltage | 110/220 | 110/220 | 110/220 | 110/220 | |
| DC output | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A | |
| Power factor(cosā®) | 1 | 1 | 1 | 1 | |
| Rated rotation speed(rpm) | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | |
| Fuel tank capacity(L) | 25.5 | 25.5 | 40 | 40 | |
| Structure type | Open Frame type | ||||
| Engine | Engine Model | 620E | 670E | 2V78 | 2V78 |
| Type | Two cylinder,4-stroke,air-cooled,gasoline engine | ||||
| Displacement(ml) | 620 | 670 | 780 | 780 | |
| Max.output power(hp)/Speed(Rpm) | 20/3600 | 24/3600 | 25/3600 | 25/3600 | |
| Oil capacity(L) | 1.4 | 1.4 | 1.6 | 1.6 | |
| starting method | Electric start | ||||
| Continuous work time(Hour) | 8 | 8 | 8 | 8 | |
| 3-Phase Ac voltage | Available | Available | Available | Available | |
| 4-wheel vehicle set | Available | Available | Available | Available | |
| Pack | Packing size(mm) | 970x665x770 | 970x665x770 | 900x590x665 | 900x590x665 |
| Net weight(Kgs) | 150 | 155 | 152 | 152 | |
| Gross weight(Kgs) | 158 | 168 | 160 | 160 | |
