YD092 Welded Lifting Lug

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China YD092 Welded Lifting Lug:

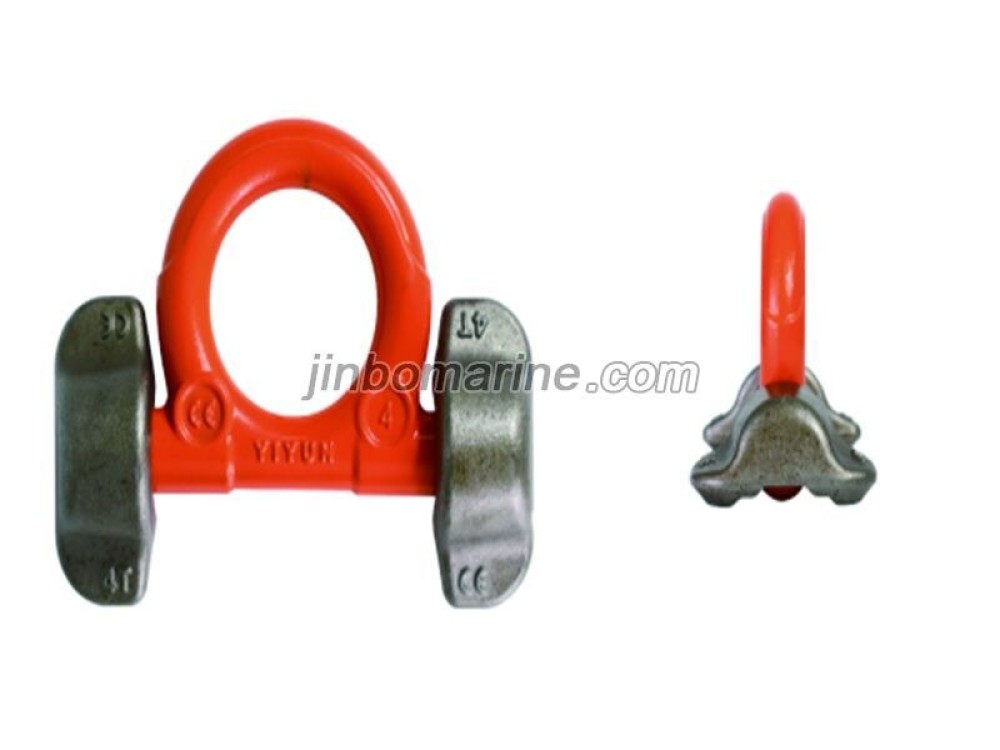

YD092 Welded Lifting Lug

Metric Thread:

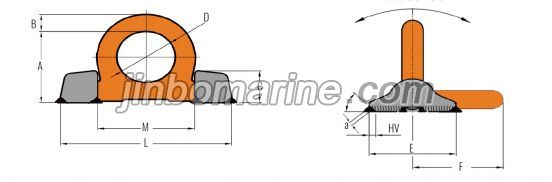

ITEM NO. WLL/T Dimensional Parameters/mm Kg
A B C D E F L M HV a
BLT092-04 4 66 14 30 48 65 70 135 76 5 3 1.1
BLT092-06 6.7 85 20 39 60 89 91 171 98 5 3 1.6
BLT092-10 10 95 21 46 65 100 100 196 106 7 4 2.6
BLT092-16 16 127 30 57 90 130 136 263 149 8 4 5.7
BLT092-30 31.5 178 42 78 130 160 160 375 213 15 4 15.6
