ZYG Series Combination Pressure Water Tank
- Category:Pressure Water Tank
- Certificate:CCS,EC,GL and BV certificate.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

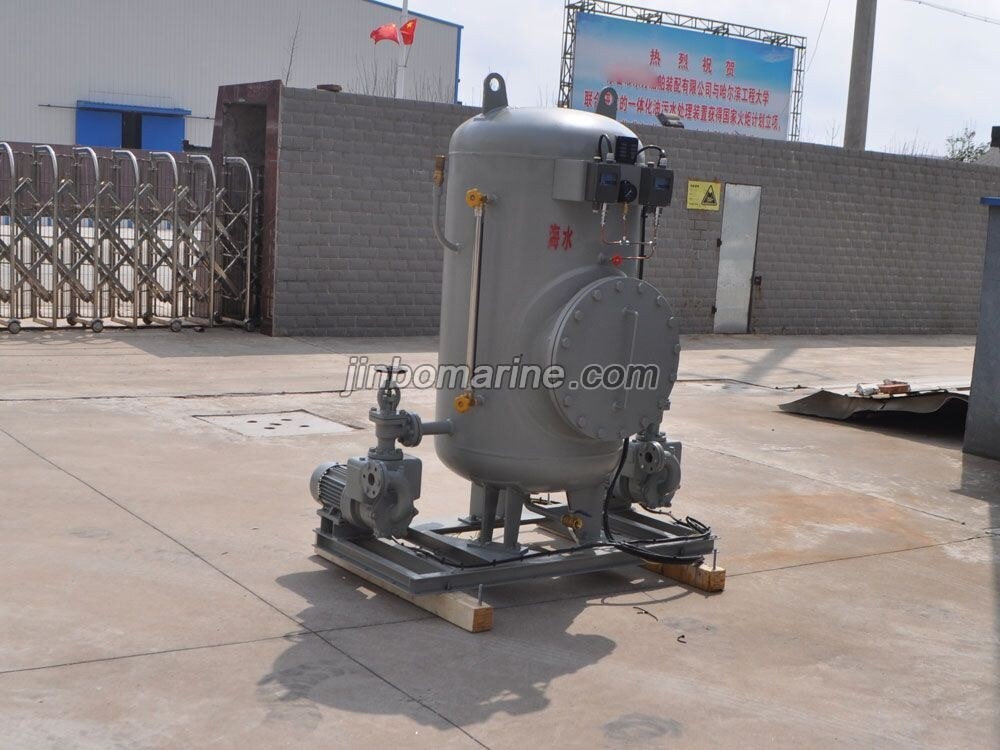

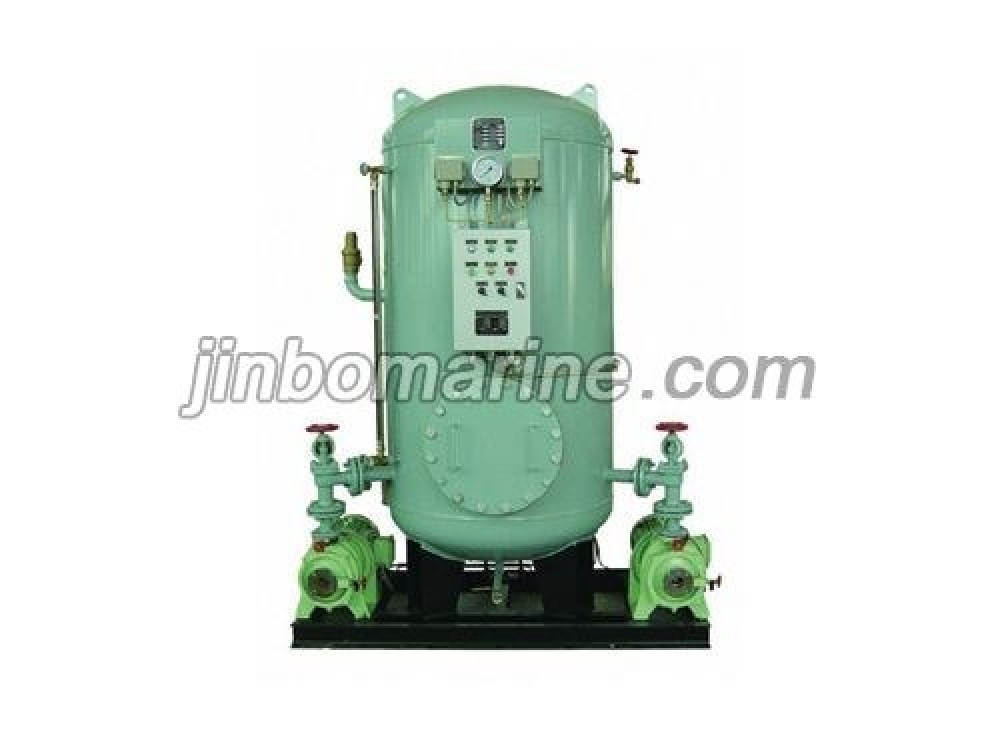

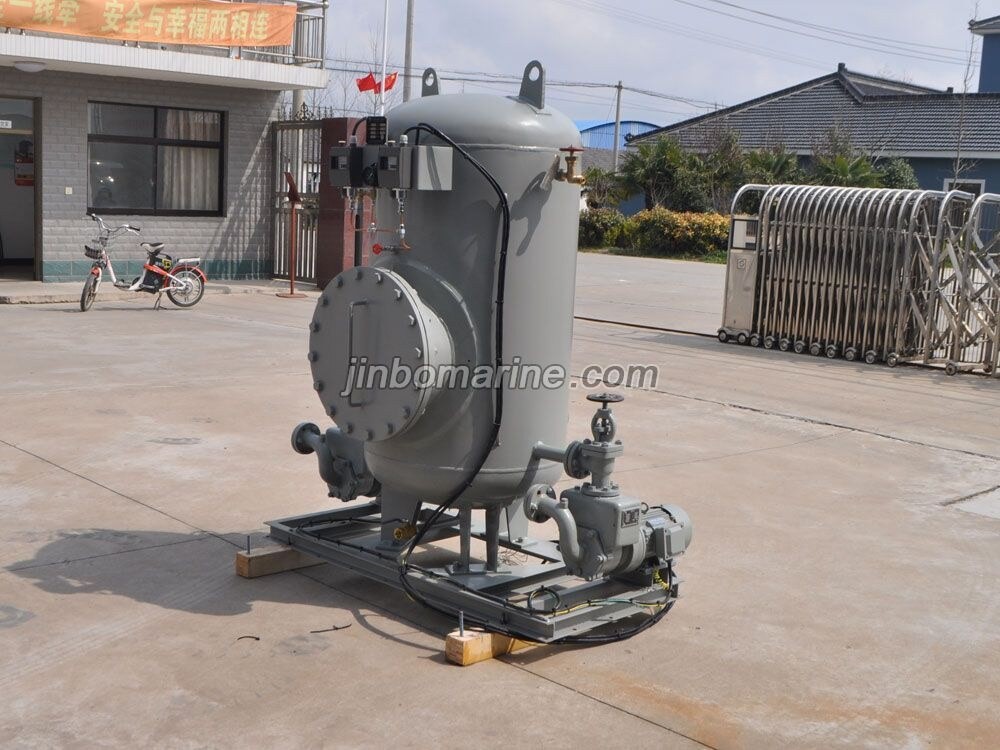

China ZYG Series Combination Pressure Water Tank:

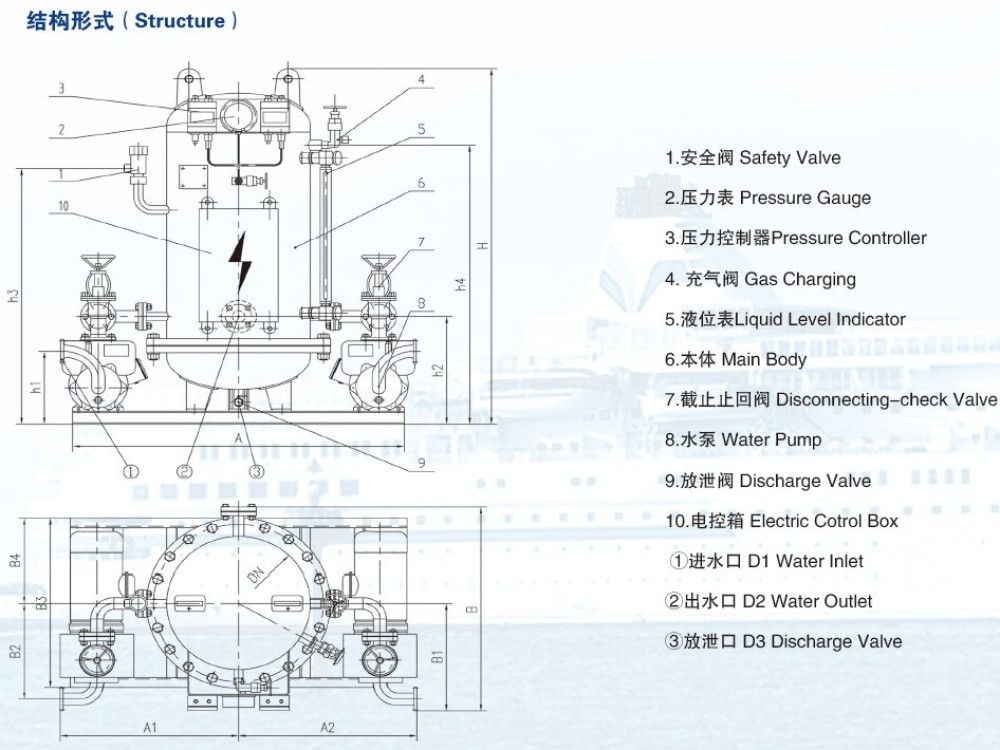

This series of pressure water tank is suitable for ship fresh water pipes and sea water pipes, pumps; pressure switch, electric control box and hydrophone are installed together. It is compact and beautiful appearance, easy to install and maintain, and it is an ideal unit for water supply system.
| Model | ZYG-0.12 | ZYG-0.2 | ZYG-0.3 | ZYG-0.5 | ZYG-1 | ZYG-1.5 | ZYG-2 | |
| Volume（m3） | 0.12 | 0.2 | 0.3 | 0.5 | 1 | 1.5 | 2 | |
| Working pressure（MPa） | 0.4 | |||||||
| Design pressure （MPa） | 0.44 | |||||||
| Test pressure （MPa） | 0.66 | |||||||
| Take-off pressure of safety valve（MPa） | 0.42 | |||||||
| Working temperature（℃） | 0~45 | |||||||
| Design temperature（℃） | 50 | |||||||
| Water pump | Model | 1.5CWX-1.5/1.5A | 1.5CWX-2/2A | 1.5CWX-3/3A | ||||
| Flow rate（m3/h） | 3 | 6.5 | 10 | |||||
| Pumping head (m) | 40 | 40 | 40 | |||||
| Power(kW) | 2.2 | 3 | 4 | |||||
