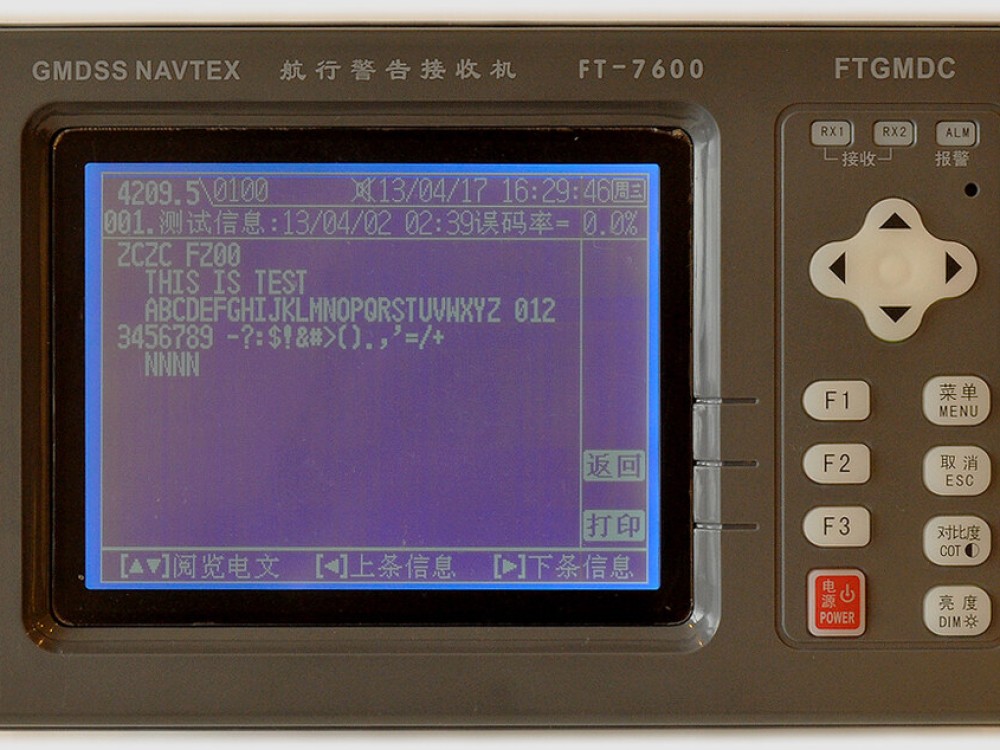

Navtex Receiver

Receiver unit : 3 FIB receiver

Receiver frequency :518kHz (International frequency) and 490kHz486kHz/4209.5kHz of (domestic frequency)

Receiving Mode : FIB

Receiver sensitivity : Below e.m.f 2uV (50 ohms), the error rate is less than 4%

Receiver selectivity : ≧ 300Hz (6dB bandwidth)

≦ 2kHz (60dB bandwidth)

Spurious emissions : ≦ 4nW (50 Ohm)

Power supply voltage :DC :9-16V / 3A or 9-38V/3A (option)

Protection class: IP45

Display Resolution :320 * 240 (6 inch LCD)

Data Interface port: INS, NMEA and printer interface

RF antenna connector: 50 Ohm

Audio output Power: ≤ 5W / 8 ohms (adjustable)

Project Name : FT-7600
Receiving unit : 3 FIB receiver
Receiving frequency :518kHz (International frequency) and 490kHz486kHz/4209.5kHz of (domestic frequency)
Receiving Mode : FIB
Receiver sensitivity : Below e.m.f 2uV (50 ohms), the error rate is less than 4%
Receiver selectivity : ≧ 300Hz (6dB bandwidth)
≦ 2kHz (60dB bandwidth)
Spurious emissions : ≦ 4nW (50 Ohm)
Power supply :DC :9-16V / 3A or 9-38V/3A (option)
Protection class: IP45
Display Resolution :320 * 240 (6 inch LCD)
Data Interface port: INS, NMEA and printer interface
RF antenna connector: 50 Ohm
Audio output Power: ≤ 5W / 8 ohms (adjustable)
Operating Temperature: -20 ° C to +60 ° C

Information received:
After the phasing signal synchronization, information began to receive;
If error rate of received was more than 33%, will refuse to received the information.
Information storage and the same text information rejected:
If the information received packet error rate is less than 33%, the information will be saved, after the same text
message will be rejected;
For example, two received error rate for the same information in a 4% -33%, save for the lower one.
Storage of information and the identification number (ID):
Information identifier (ID) can be stored up to 600;
If information identification number (ID) over 600, the oldest one (the first coming)will be delete ;
The ID storage period at least 60 hours, after 72 hours deleted automatically (including the power shutdown);
Lock information permanent preservation;
If information serial number B3B4 = 00, displayed and saved forever.

List of information selection: All, alarm, user select , complete list of information
Select coast station : allow or restrict all coast stations
Self-test function: Main unit provided many item of self-test function

Liquid crystal display (LCD):
All of the information received, work status and control menus are displayed on the LCD, easy to use;
Receiving station, type of information and various control menu via the LCD and keypad operation and control;
LCD display always shows real time information of received, synchronization, the receive status, character error,
stored status;
Displays date and time.

Interface port function:
Main unit provided INS and print port functions, Fully comply with requirements of IEC61162 standard

Received alarm sound(audio) and light(visual) function:
According to different alarm sound and light , easy to recognize emergency, or general information:
Emergency information alarm: received D type of information as well as search and rescue information;
General Information Alarm: Except received "D type information .

Note: Specifications are subject to change without notice.
