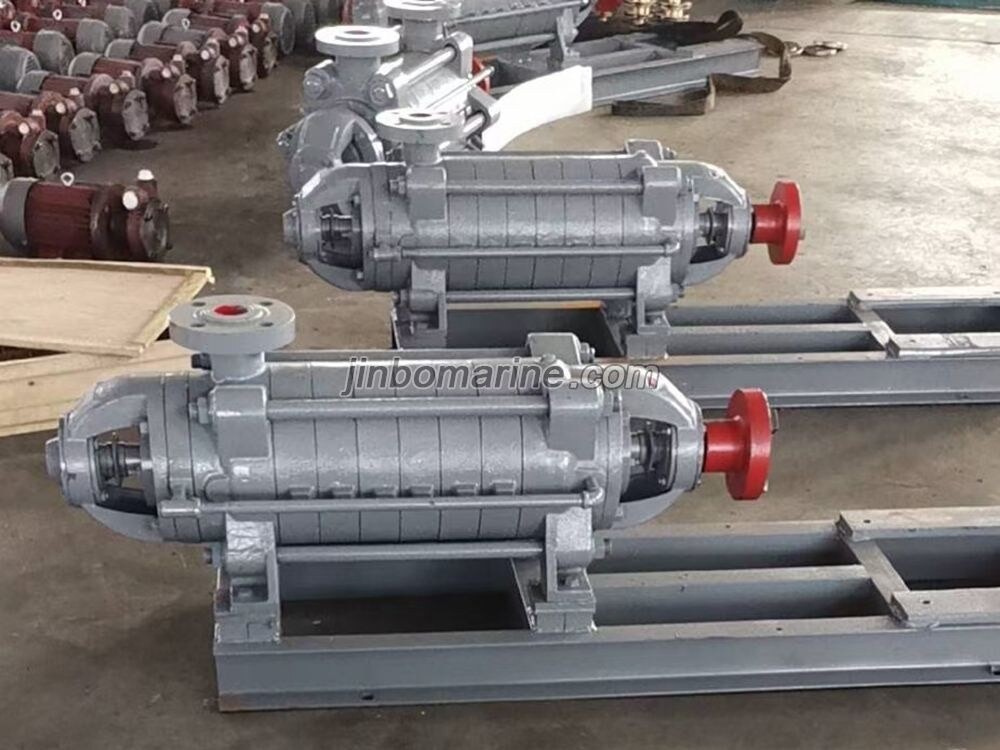

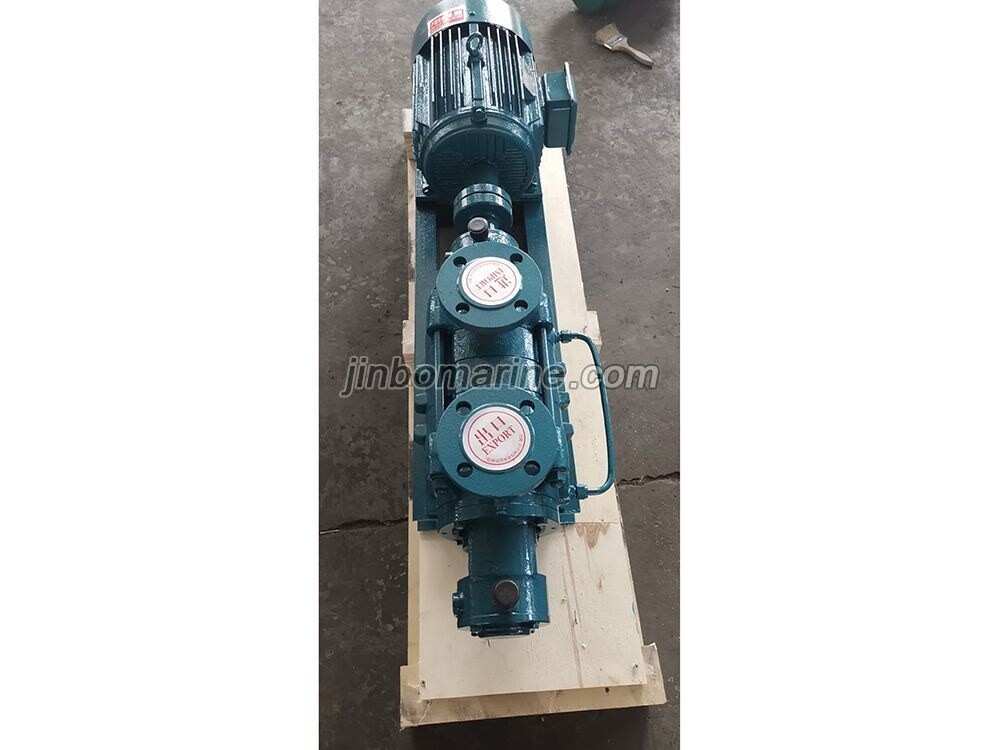

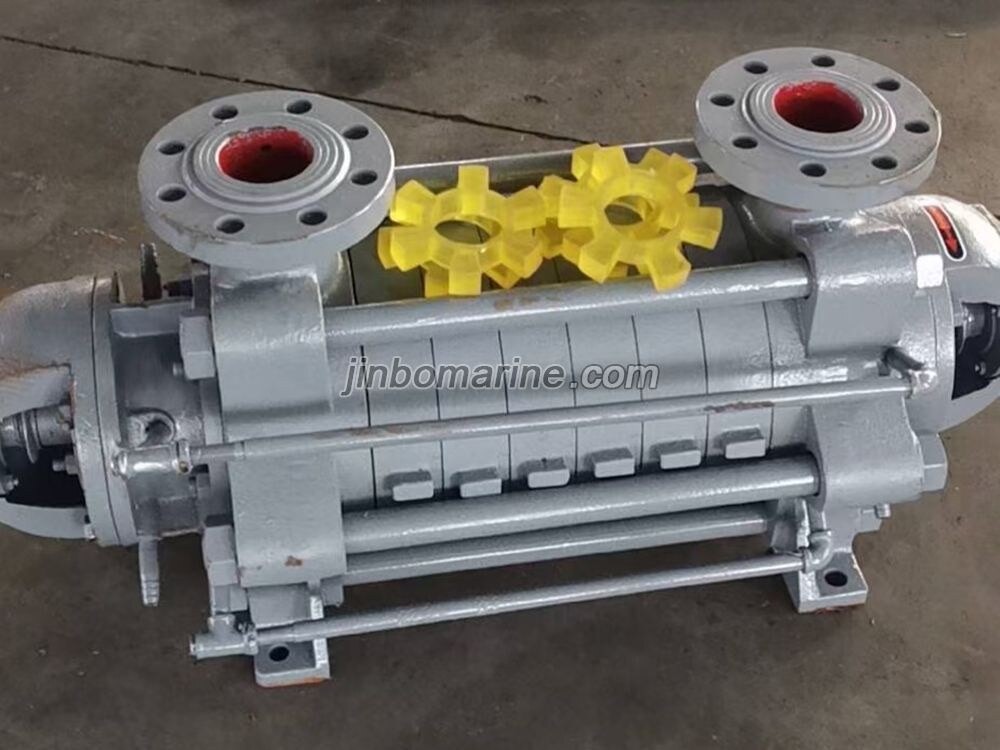

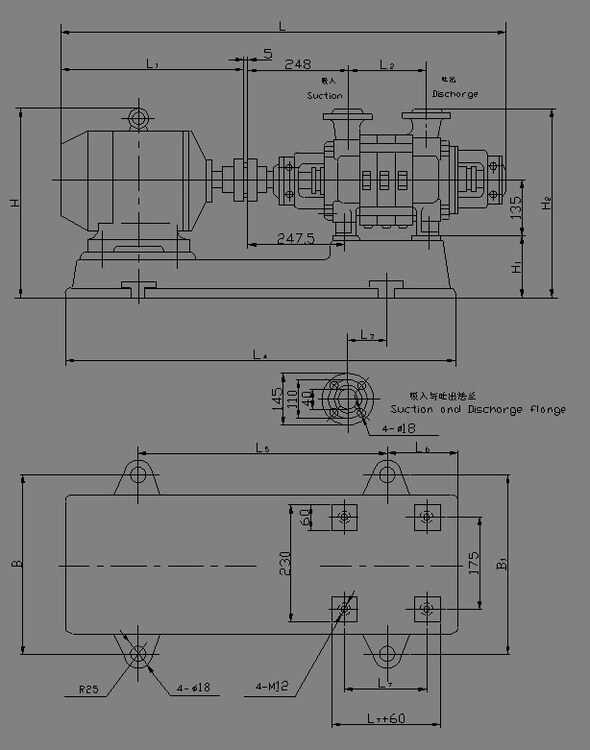

1.5GCJ-5 Single Suction Multi-stage Marine boiler feedwater pump
General Description Type 1.5GCJ pump is centrigugal pumps of single suction and multi-stage segmental type which can be used to transport clean water and liquids with physical and chemica...
1.5GCJ-5 Single Suction Multi-stage Marine boiler feedwater pump
PDF Datasheet
We can supply according to your requirement.
General Description
Designation of 1.5GCJ — 5 × 6
1.5 —— Suction diameter(mm)divided by 25 , and then change the Value into integer
G —— Boiler feed pump
C —— Indicating type of te pump
J —— Mechanical seals
5 —— Specific speed divided by 10 (i.e.the specific speed of the pump is 50)
6 —— Number of impellers

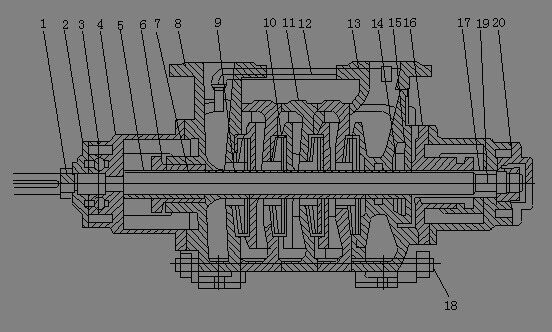

| 1 、 Sleeve nut | 2 、 Bearing Cover |
| 3 、 Bearing | 4 、 Bearing body |
| 5 、 Sleeve | 6 、 packing gland |
| 7 、 Sealing machine | 8 、 Suction casing |
| 9 、 Wearing ring | 10 、 Impeller |
| 11 、 Midsegment | 12 、 Balance pipe |
| 13 、 Discharge casing | 14 、 Balancing ring |
| 15 、 Balancing disk | 16 、 End cover |
| 17 、 Sleeve | 18 、 Tightening |
| 19 、 Pump shaft | 20 、 Round nut |
The directions of suction and discharge of the pump are all vertical and upward .with different stages selected according to the needed head.
Stator of the pump is composed of suction casing .mid-segment.discharge casing .end cover and bearing body.
Rotor of the pump is composed of shaft.impellers.sleeves,and balancing disk,The two ends are supported by the ball-bearings
Paper gaskets are used on the contacting surfaces between the suction casing.mid-segment and discharge casing of the pump.They are sealed by tightening the bolts. ○ -rings are mounted on the interfaces between the sleeves to prevent water from entering the bearnjngs. ○ ilimmersed machine is sealing at the two ends the pump.
There are water cooling jackets around the bearing housings.when the temperature of liquid is higher than 80 ℃ ,Cooling water should be turned on to cool the bernings.
Calcium grease lubricant is firled into the bearing thrugh oil-cups.
Viewing from the direction of the suction casing .the pump is rotating clockwise
| No.of stages | Q Rate of flow | Total Head H(m) | Rotating Speed r/min | Power(kw) | n(%) Eficiency n(%) | Permissble sution hed Hs(m) | OD.of Impeller (mm) | ||
| m3/hr | L/Sec | Shaft powe | Moterpower | ||||||
| 2 3 4 5 6 7 8 9 | 6 6 6 6 6 6 6 6 | 166 166 166 166 166 166 166 166 | 46 60 92 115 138 161 184 207 | 2950 2950 2950 2050 2950 2950 2950 2950 | 2 3 4 5 6 7 8 9 |  75 75 75 11 15 | 38 | 65 65 65 65 65 65 65 65 | 136 136 126 36 136 136 136 136 |
