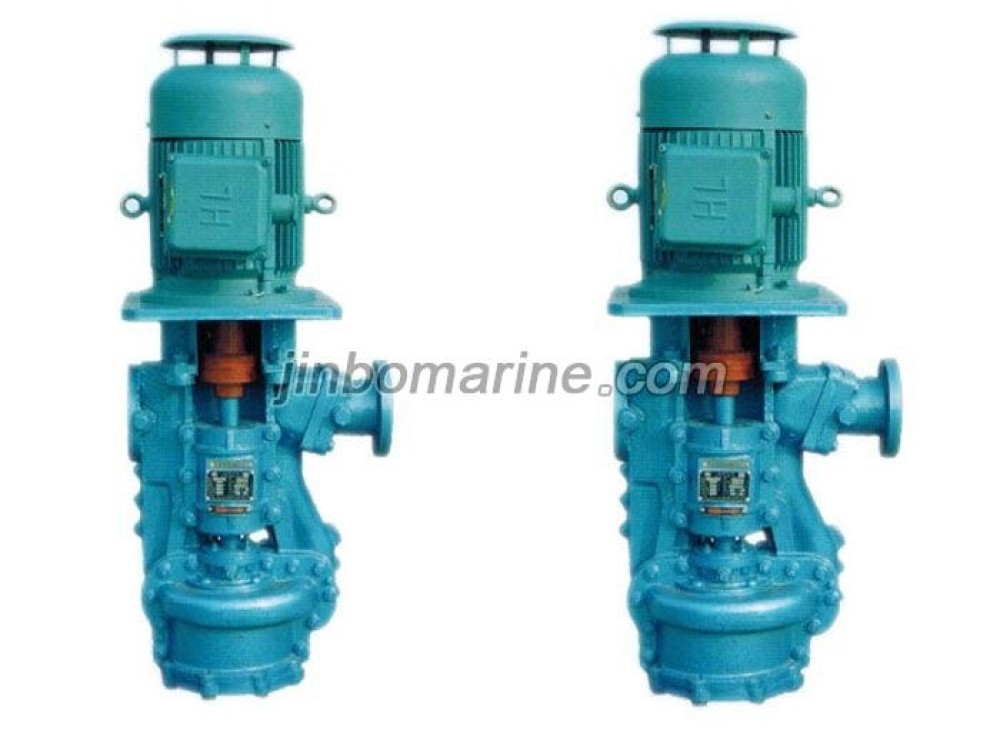

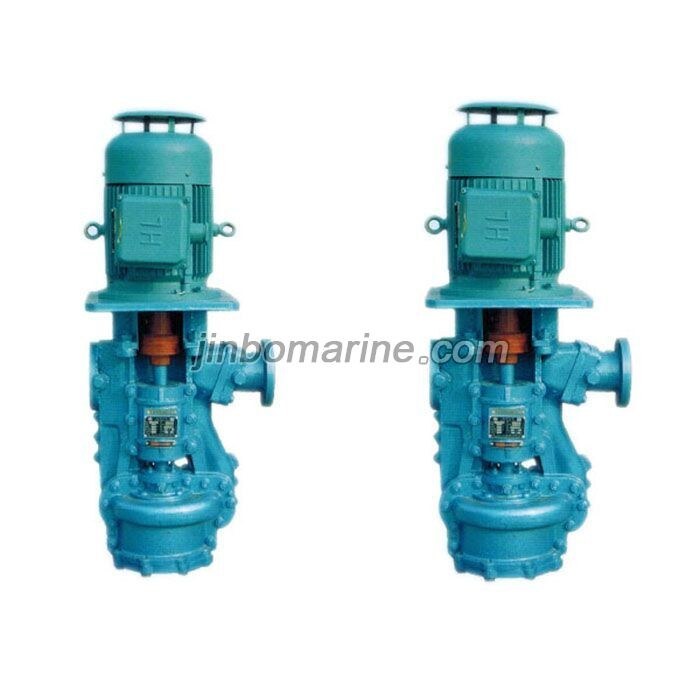

100CLZ-30 Marine Vertical Self-suction Centrifugal Pump
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China 100CLZ-30 Marine Vertical Self-suction Centrifugal Pump:
CLZ series marine vertical self-suction centrifugal pump can be used to convey shipping press carry cabin bottom water,deliver ballast tank water of the boats and ships serve the purpose of cooling,fire control,etc. It also can be used to convey sea water and fresh water,or other liquid that no exceed 70℃ in temperature.
| Main Technical Data | ||||
| 380V/50HZ | ||||
| Model |
Flow rate Q m³/h |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
| 50CLZ-30 | 20 | 30 | 2900 | 5.5 |
| 80CLZ-30 | 45 | 30 | 2900 | 11 |
| 80CLZ-40 | 40 | 40 | 2900 | 11 |
| 80CLZ-50 | 40 | 50 | 2900 | 15 |
| 100CLZ-30 | 90 | 30 | 2900 | 15 |
| 150CLZ-30 | 162 | 30 | 2900 | 30 |
| 200CLZ-30 | 288 | 30 | 2900 | 45 |
| 440V/60HZ | ||||
| Model |
Flow rate Q m³/h |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
| 50CLZ-30 | 24 | 42 | 3480 | 11 |
| 80CLZ-30 | 54 | 42 | 3480 | 15 |
| 80CLZ-40 | 48 | 57 | 3480 | 18.5 |
| 80CLZ-50 | 48 | 72 | 3480 | 22 |
| 100CLZ-30 | 108 | 42 | 3480 | 30 |
| 150CLZ-30 | 194 | 42 | 3480 | 45 |
| 200CLZ-30 | 345 | 42 | 3480 | 75 |
| Alao have bigger pumps, pls contact us for more information. | ||||
