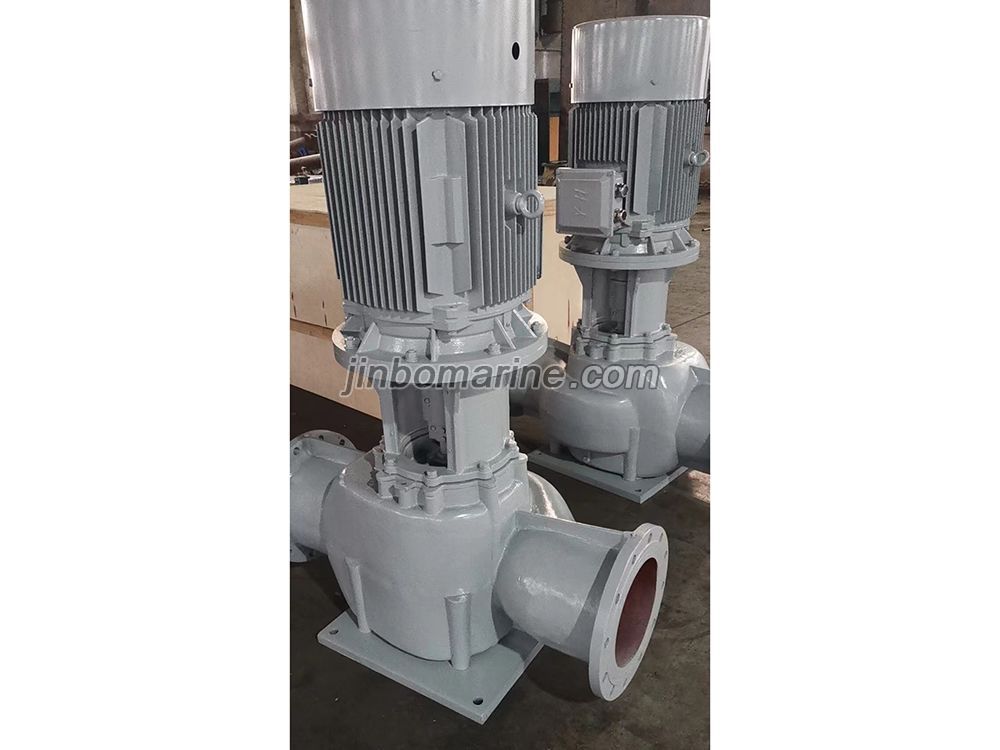

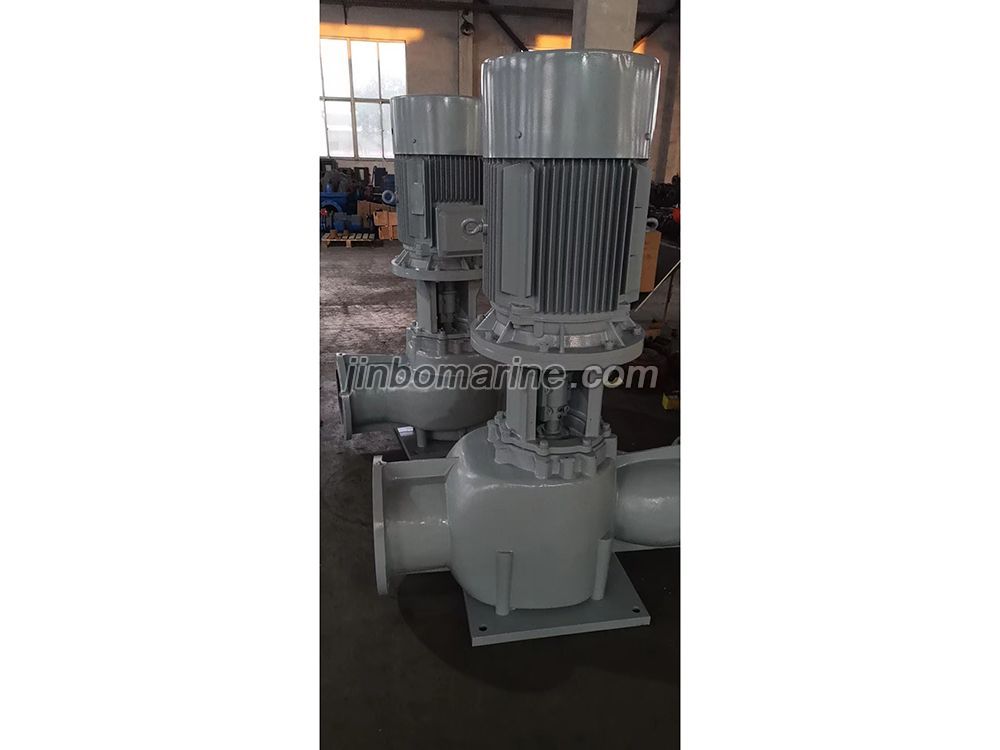

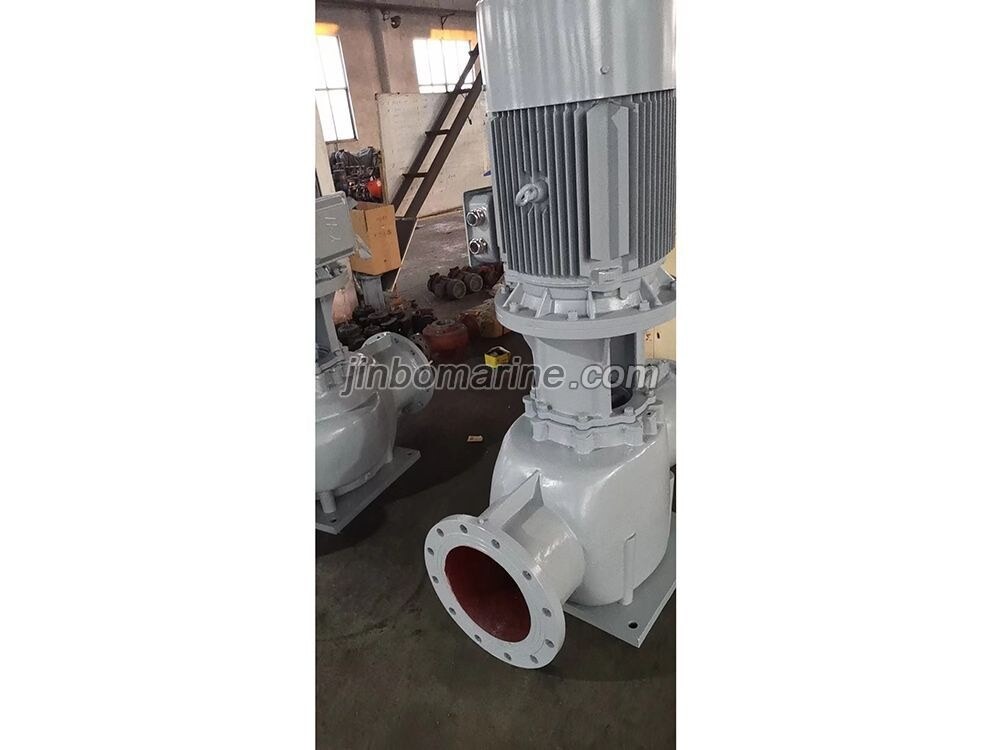

1200m3 PVHB300-20NF Marine Vertical Centrifugal Ballast Water Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

1200m3 PVHB300-20NFMarine Vertical Centrifugal Ballast Water Pump

Product Overview

CLHB PVHB detachable marine centrifugal pump is a newly developed and technologically advanced detachable vertical centrifugal pump based on the IS pump and ISG vertical pump, combined with advanced foreign technology and years of production experience of our company and valuable experience of our customers. This series of products has been tested and certified as qualified by the Zhenjiang Branch of the National Pump Product Testing Center. This series of products fills the domestic gap, and its comprehensive performance reaches the modern advanced level of similar international products. This series of products is designed and manufactured strictly in accordance with international ISO2858.

This series of products boldly breaks through the design as a whole. The pump shaft adopts an independent support body, solving the shortcomings of the original ISG and ISW pump extended shaft supported by motor bearings. The impeller and pump body are designed and manufactured using modern excellent hydraulic models, eliminating the axial and radial forces of vertical pumps. The bearings at the pump shaft and motor bearings are only subjected to weak axial and radial forces. The motor adopts the Y series standard motor, and the entire pump adopts a detachable structure, solving the problem of inconvenient replacement of vulnerable parts such as bearings, mechanical seals, and impellers for high-power pumps.

Compared with current domestic products, this series of pumps has irreplaceable advantages such as smoother operation, longer service life, more convenient matching, and easier maintenance. It is the most ideal product to replace conventional centrifugal pumps such as ISG vertical pumps, IS centrifugal pumps, and S-type double suction pumps.

Pump performance range:

Rated flow Qn=4.4m3/h~1450m3/h;

Rated pressure Pn=0.125MPa~1.25MPa (head 1.25m~125m);

Rotating speed n=2900r/min, 1450r/min, 970/min;

The maximum working pressure of the pump P ≤ 1.6MPa (P=P0+Pn)

(P0 is the pump inlet pressure)

Pump inlet and outlet diameter 40mm~350mm

Main uses

(1) The CLHB PVHB pump is used for non corrosive cold and hot water in heating, ships, chilled water systems, and irrigation systems.

(2) The CLHB PVHB pump is used in sectors such as petroleum, chemical, metallurgy, power, papermaking, food, pharmaceuticals, and synthetic fibers.

Working conditions

(1) Medium temperature: T=-20 ℃+120 ℃;

(2) Environmental temperature T ≤ 40 ℃, ambient temperature does not exceed 95%

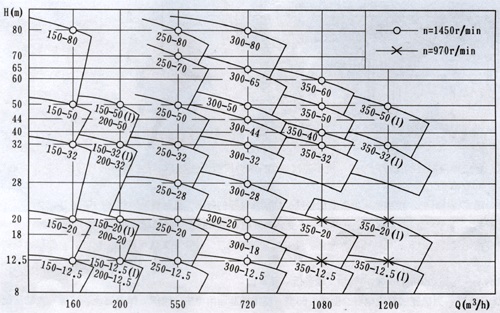

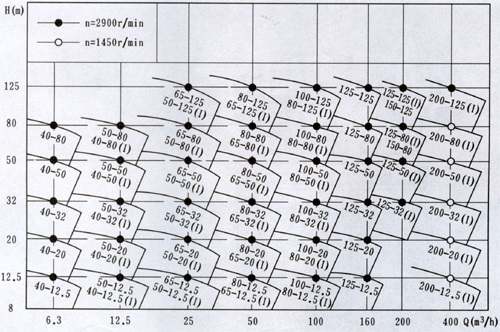

Curve chart：

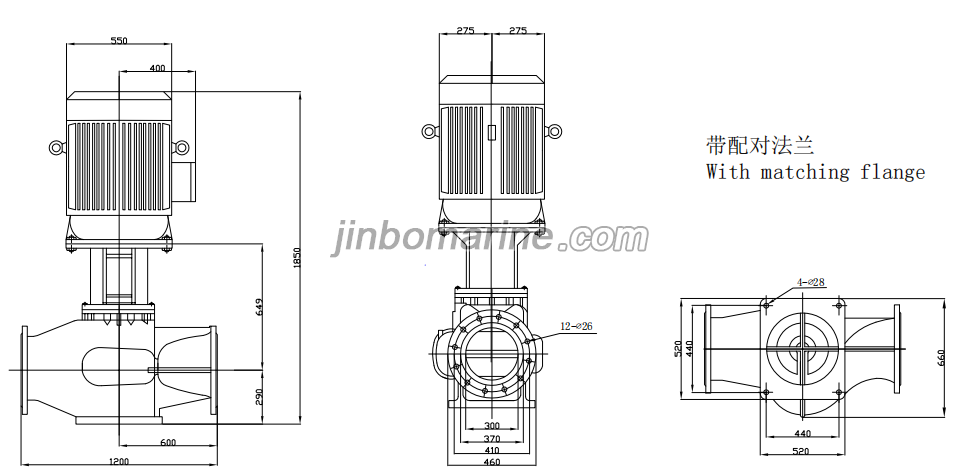

Drawing and Techincal data::

No. Model FlowQ Head Efficiency Speed Motor 必需汽 Weight
H η N Power 蚀余量 W
（m） (%) (r/min) P (NPSH)r （Kg）
(m3/n) (I/S) (KW) (m)
1 CLHB 40-12.5 4.4 1.22 13.2 48 2900 0.55 2.3 35
6.3 1.75 12.5 54
8.3 2.31 11.3 53
2 CLHB 3.9 1.08 10.6 52 2900 0.37 2.3 35
40-12.5A 5.6 1.56 10
7.4 2.06 9
3 CLHB 4.4 1.22 21 41 2900 1.1 2.3 35
40-20 6.3 1.75 20 46
8.3 2.31 18 43
4 CLHB 3.9 1.08 17.6 40 2900 0.75 2.3 33
40-20A 5.6 1.56 16 45
7.4 2.06 14.4 41
5 CLHB 4.4 1.22 23 35 2900 2.2 2.3 50
40-32 6.3 1.75 32 40
8.3 2.31 30 40
6 CLHB 4.1 1.14 29 34 2900 1.5 2.3 45
40-32A 5.9 1.64 28 39
7.8 2.17 26.3 39
7 CLHB 3.8 1.06 25.5 34 2900 1.1 2.3 40
40-32B 5.5 1.53 24 38
7.2 2 22.5 37
8 CLHB 4.4 1.22 51 26 2900 4 2.3 75
40-50 6.3 1.75 50 33
8.3 2.31 48 32
9 CLHB 4.1 1.14 45 20 2900 3 2.3 65
40-50A 5.9 1.64 44 31
7.8 2.17 42 30
10 CLHB 3.7 1.03 38 29 2900 2.2 2.3 55
40-50B 5.3 1.47 36
7 1.94 34.5
11 CLHB 4.4 1.22 82 24 2900 7.5 2.3 110
40-80 6.3 1.75 80 28
8.3 2.31 74 28
12 CLHB 4.1 1.14 72 24 2900 5.5 2.3 105
40-80A 5.9 1.64 70 28
7.8 2.17 65 27
13 CLHB 3.8 1.06 61 5 23 2900 5.5 2.3 80
40-80B 5.5 1.53 60 27
7.2 2 56 26
14 CLHB 8.8 2.44 13.2 55 2900 1.1 2.3 35
40-12.5(1) 12.5 3.47 12.5 62
16.3 4.53 11.3 60
15 CLHB 81114.5 2.22 10.6 60 2900 0.75 2.3 32
40-20(I)A 3.05 10
4.03 9
16 CLHB 8.812.516.3 2.44 21.5 49 2900 1.5 2.3 40
40-20(I) 3.47 20 58
4.53 17.8 57
17 CLHB 8 2.22 17 57 2900 1.1 2.3 35
40-20(I)A 11 3.05 16
14.5 4.03 14
18 CLHB 8.8 2.44 33 45 2900 3 2.3 60
40-32(I) 12.5 3.47 32 52
16.3 4.53 30 51
19 CLHB 8.2 2.28 29 44 2900 2.2 2.3 50
40-32(I)A 11.7 3.25 28 51
15.2 4.22 26 50
20 CLHB 7.3 2.38 26 50 2900 1.5 2.3 45
40-32(I)B 10.4 2.89 24
13.5 3.75 20
21 CLHB 8.8 2.44 51.2 38 2900 5.5 2.3 90
40-50(I) 12.5 3.47 50 46
16.3 4.53 48 46
22 CLHB 8.3 2.31 45 37 2900 4 2.3 80
40-50(I)A 11.7 3.25 44 46
15.3 4.25 42 45
23 CLHB 7.5 2.082.943.83 37 40 2900 3 2.3 70
40-50(I)B 10.6 36
13.8 34
24 CLHB 8.8 2.44 81.2 31 2900 11 2.3 150
40-80(I) 12.5 3.47 80 38
16.3 77.5 40
4.53
25 CLHB 8.2 2.28 71 38 2900 7.5 2.3 100
40-80(I)A 11.6 3.22 70
15.2 4.22 68
26 CLHB 7.6 2.11 61.4 37 2900 7.5 2.3 95
40-80(I)B 10.8 3 60
14 3.89 58
27 CLHB 7.1 1.97 53.2 36 2900 5.5 2.3 90
40-80(I)C 10.1 2.87 52
13.1 3.64 50.4
28 CLHB 8.8 2.44 13.6 55 2900 1.1 2.3 40
50-12.5 12.5 3.47 12.5 62
16.3 4.53 11.3 60
29 CLHB 8 2.22 11 60 2900 0.75 2.3 35
50-12.5A 11 3.05 10
14.5 4.03 9
30 CLHB 8.8 2.44 21.5 49 2900 1.5 2.3 45
50-20 12.5 3.47 20 58
16.3 4.53 17.8 57
31 CLHB 8 2.22 17 57 2900 1.1 2.3 40
50-20A 11 3.05 16
14.5 4.03 14
No. Model FlowQ Head Efficiency Speed Motor 必需汽 Weight
H η N Power 蚀余量 W
（m） (%) (r/min) P (NPSH)r （Kg）
(m3/n) (I/S) (KW) (m)
32 CLHB 8.8 2.44 33 45 2900 3 2.3 60
50-32 12.5 3.47 32 52
16.3 4.53 30 51
33 CLHB 8.2 2.28 29 44 2900 2.2 2.3 50
50-32A 11.7 3.25 28 51
15.2 4.22 26 50
34 CLHB 7.3 2.38 23 50 2900 1.5 2.3 46
50-32B 10.4 2.89 22
13.5 3.75 20.5
35 CLHB 8.8 2.44 52 38 2900 5.5 2.3 105
50-50 12.5 3.47 50 46
16.3 4.53 48 46
36 CLHB 8.3 2.31 45.8 37 2900 4 2.3 85
50-50A 11.7 3.25 44 45
15.3 4.25 42 45
37 CLHB 7.5 2.08 40 44 2900 3 2.3 70
50-50B 10.6 2.94 38
13.8 3.83 35
38 CLHB 8.8 2.44 82 29 2900 11 2.3 160
50-80 12.5 3.47 80 38
16.3 4.53 77.5 40
39 CLHB 8.2 2.28 71.5 29 2900 7.5 2.3 120
50-80A 11.6 3.22 70 38
15.2 4.22 68 41
40 CLHB 7.6 2.11 61.5 27.5 2900 7.5 2.3 115
50-80B 10.8 3 60 37
14 3.89 58 40
41 CLHB 7.1 1.97 53.2 27 2900 5.5 2.3 110
50-80C 10 2.78 52 36
13.1 3.64 50.4 39
42 CLHB 17.5 4.86 13.7 67 2900 1.5 2.5 45
50-12.5(I) 25 6.97 12.5 69
32.5 9.03 10.5 69
43 CLHB 15.6 4.3 11 65 2900 1.1 2.5 40
50-12.5(I)A 22.3 6.19 10 67
29 8.1 8.4 68
44 CLHB 17.5 4.86 21.5 60 2900 3 2.5 60
50-20(I) 25 6.94 20 68
32.5 9.03 18 67
45 CLHB 15.6 4.33 17.5 58 2900 2.2 2.5 50
50-20(I)A 22.3 6.19 16 66
29 8.12 13.6 65
46 CLHB 17.5 4.86 34.4 55 2900 4 2.5 75
50-32(I) 25 6.94 32 63
32.5 9.03 27.5 60
47 CLHB 16.4 4.566.58.44 30 54 2900 4 2.5 75
50-32(I)A 23.4 28 62
30.4 24 59
48 CLHB 15 4.17 26 61 2900 3 2.5 65
50-32(I)B 21.6 6 24
28 7.78 20.6
49 CLHB 17.5 4.86 52.7 49 2900 7.5 2.5 110
50-50(I) 25 6.94 50 58
32.5 9.03 45.5 59
50 CLHB 16.4 4.56 46.4 48 2900 7.5 2.5 110
50-50(I)A 23.5 6.53 44 57
30.5 8.47 40 58
51 CLHB 15.2 4.22 40.5 55 2900 5.5 2.5 100
50-50(I)B 21.8 6.06 38
28.3 7.86 34.5
52 CLHB 17.5 4.86 82 39 2900 15 2.5 175
50-80(I) 25 6.94 80 50
32.5 9.03 76.5 52
53 CLHB 16.4 4.56 71.5 39 2900 11 2.5 165
50-80(I)A 23.4 6.5 70 51
30.5 8.47 67 52
54 CLHB 15 4.17 61 38 2900 11 2.5 165
50-80(I)B 21.6 6 60 50
28 7.78 58 54
55 CLHB 17.3 4.6 128 31 2900 30 2.5 310
50-125(I) 25 6.94 125 40
32.5 9.03 122 44
56 CLHB 16.6 4.61 115 30 2900 22 2.5 250
50-125(I)A 23.7 6.58 113 40
31 8.6 110 44
57 CLHB 15.7 4.366.258.0 103 39 2900 18.5 2.5 215
50-125(I)B 22.5 101
29.2 98
58 CLHB 14.4 4 86 38 2900 15 2.5 195
50-125(I)C 20.6 5.72 85
26.8 7.44 83
59 CLHB 17.5 4.86 13.7 67 2900 1.5 2.5 45
65-12.5 25 6.94 12.5 69
32.5 9.03 10.5 69
60 CLHB 15.6 4.3 11 65 2900 1.1 2.5 40
65-12.5A 22.3 6.19 10 67
29 8.1 8.4 68
61 CLHB 17.5 4.86 22 60 2900 3 2.5 60
65-20 25 6.94 20 68
32.5 9.03 18 67
62 CLHB 15.6 4.33 17.5 58 2900 2.2 2.5 50
65-20A 22.3 6.19 16 66
29 8.1 14.4 65
No. Model FlowQ Head Efficiency Speed Motor 必需汽 Weight
H η N Power 蚀余量 W
（m） (%) (r/min) P (NPSH)r （Kg）
(m3/n) (I/S) (KW) (m)
63 CLHB 17.5 4.86 34.4 54 2900 4 2.5 75
65-32 25 6.94 32 63
32.5 9.03 27.5 60
64 CLHB 16.4 4.56 30 54 2900 4 2.5 75
65-32A 23.4 6.5 28 62
30.1 8.44 24.5 59
65 CLHB 15 4.17 26 51 2900 3 2.5 65
65-32B 21.6 6 24 61
28 8.44 21 60
66 CLHB 17.5 4.86 52.7 49 2900 7.5 2.5 110
65-50 25 6.94 50 58
32.5 9.03 45.5 59
67 CLHB 16.4 4.56 46.4 48 2900 7.5 2.5 110
65-50A 23.5 6.53 44 57
30.5 8.47 40 58
68 CLHB 15.2 4.22 40.5 55 2900 5.5 2.5 100
65-50B 21.8 6.06 38
28.3 7.86 34
69 CLHB 17.5 4.86 82 39 2900 15 2.5 185
65-80 25 6.94 80 50
32.5 9.03 76.5 52
70 CLHB 16.4 4.56 71.5 39 2900 11 2.5 170
65-80A 23.4 6.5 70 50
30.5 8.47 67 52
71 CLHB 15 4.17 61 38 2900 11 2.5 170
65-80B 21.6 6 60 49
28 7.78 58 54
72 CLHB 17.5 4.86 127 32 2900 30 2.5 320
65-125 25 6.94 125 40
32.5 9.03 122 44
73 CLHB 16.6 4.61 115 32 2900 22 2.5 260
65-125A 23.7 6.58 113 40
31 8.6 110 44
74 CLHB 15.7 4.36 103 39 2900 18.5 2.5 225
65-125B 22.5 6.25 101
29.2 8 98
75 CLHB 14.4 4 86 38 2900 15 2.5 210
65-125C 20.6 5.72 85
26.8 7.44 83
76 CLHB 35 9.72 13.8 67 2900 3 3 65
65-12.5(I) 50 13.9 12.5 73
65 18.1 10 70
77 CLHB 31.3 8.7 11 66 2900 2.2 3 55
65-12.5(I)A 44.7 12.4 10 72
58 16.1 8 69
78 CLHB 35 9.72 22 67 2900 5.5 3 100
65-20(I) 50 13.9 20 72.5
65 18.1 17 70
79 CLHB 31.3 8.7 17.5 60 2900 4 3 80
65-20(I)A 45 12.5 16 71
58 16.1 13.6 69
80 CLHB 35 9.72 35 63 2900 7.5 3 105
65-32(I) 50 13.9 32 71
65 18.1 28 70
81 CLHB 32.7 9.1 30.6 62 2900 7.5 3 105
65-32(I)A 46.7 13 28 70
61 16.9 25 69
82 CLHB 30 8.4 26 69 2900 5.5 3 95
65-32(I)B 43.3 12 24
56.3 15.6 21
83 CLHB 35 9.72 53.5 55 2900 15 3 180
65-50(I) 50 13.9 50 67
65 18.1 46 68
84 CLHB 32.8 9.1 47 54 2900 11 3 165
65-50(I)A 47 13.1 44 66
61 16.9 40 67
85 CLHB 30.5 8.5 40.6 65 2900 7.5 3 115
65-50(I)B 43.5 12.1 38
56.6 15.7 33.4
86 CLHB 35 9.7 83 52 2900 22 3 235
65-80(I) 50 13.9 80 59
65 18.1 72
60
87 CLHB 32.5 9 73 52 2900 18.5 3 205
65-80(I)A 46.7 13 70 59
61 16.9 63 60
88 CLHB 30 8.3 63 58 2900 15 3 180
65-80(I)B 43.3 12 60
56 15.6 54
89 CLHB 35 9.72 128 44 2900 37 3 350
65-125(I) 50 13.9 125 54
65 18.1 121 57
90 CLHB 32.5 9 116 43 2900 30 3 335
65-125(I)A 46.5 12.9 113 54
60.5 16.8 110 57
91 CLHB 31 8.6 103 40 2900 30 3 335
65-125(I)B 44.5 12.4 101 53
58 16.1 97 56
92 CLHB 29 8.1 87 39 2900 22 3 270
65-125(I)C 41 11.4 85 51
53.6 14.9 83 55
93 CLHB 35 9.72 13.8 67 2900 3 3 65
80-12.5 50 13.9 12.5 73
65 18.1 10 70
No. Model FlowQ Head Efficiency Speed Motor 必需汽 Weight
H η N Power 蚀余量 W
（m） (%) (r/min) P (NPSH)r （Kg）
(m3/n) (I/S) (KW) (m)
94 CLHB 31.3 8.7 11 66 2900 2.2 3 60
80-12.5A 44.7 12.5 10 72
58 16.1 8 69
95 CLHB 35 9.7 22 67 2900 5.5 3 100
80-20 50 213.9 20 72.5
65 18.1 17 70
96 CLHB 31.3 8.7 17.5 66 2900 4 3 80
80-20A 45 12.5 16 71
58 16.1 13.6 69
97 CLHB 35 9.72 35 63 2900 7.5 3 105
80-32 50 13.9 32 71
65 18.1 28 70
98 CLHB 32.7 9.1 30.6 62 2900 7.5 3 105
80-32A 46.7 13 28 70
61 16.9 25 69
99 CLHB 30.3 8.4 27 69 2900 5.5 3 100
80-32B 43.3 12 24
56.3 15.6 20
100 CLHB 35 9.72 53.3 55 2900 15 3 175
80-50 50 13.9 50 67
65 18.1 46 68
101 CLHB 32.8 9.1 47 54 2900 11 3 170
80-50A 47 13.1 44 66
61 16.9 40 67
102 CLHB 30.5 8.5 40.6 53 2900 7.5 3 120
80-50B 43.5 12.1 38 65
56.6 15.7 33.4 67
103 CLHB 35 9.72 83 52 2900 22 3 240
80-80 50 13.9 80 59
65 18.1 72 60
104 CLHB 32.5 9 73 52 2900 18.5 3 210
80-80A 46.7 13 70 59
61 16.9 64 60
105 CLHB 30 8.3 63 58 2900 15 3 190
80-80B 43.3 12 60
56 15.6 54
106 CLHB 35 9.72 128 43 2900 37 3 360
80-125 50 13.9 125 54
65 18.1 122 57
107 CLHB 32.5 9 116 42 2900 30 3 345
80-125A 46.5 12.9 113 53
60.5 16.8 110 56
108 CLHB 31 8.6 103 53 2900 30 3 340
80-125B 44.5 12.4 101
58 16.1 97
109 CLHB 29 8.1 98 51 2900 22 3 275
80-125C 41 11.4 85
53.6 14.9 83
110 CLHB 70 19.4 13.6 66 2900 5.5 4.5 110
80-12.5(I) 100 27.8 12.5 76
130 36.1 11 75
111 CLHB 62.6 17.4 11 64 2900 4 4.5 85
80-12.5(I)A 89 24.7 10 74
116 32.2 8.8 74
112 CLHB 70 19.4 23.5 70 2900 11 4.5 165
80-20(I) 100 27.8 20 76
130 36.1 14 72
113 CLHB 62.6 17.4 19 68 2900 7.5 4.5 130
80-20(I)A 89 24.7 16 74
116 32.2 11 65
114 CLHB 70 19.4 36.5 70 2900 15 4.5 185
80-32(I) 100 27.8 32 76
130 36.1 24 65
115 CLHB 65.4 18.2 32 68 2900 11 4.5 175
80-32(I)A 93.5 26 28 74
121.6 33.8 21 67
116 CLHB 60.6 16.8 27 72 2900 11 4.5 175
80-32(I)B 86.6 24.1 24
112.5 31.3 18
117 CLHB 70 19.4 54 65 2900 22 4 250
80-50(I) 100 27.8 50 74
130 36.1 42 73
118 CLHB 65.4 18.2 47.5 64 2900 18.5 4 220
80-50(I)A 93.5 26.4 44 73
121.6 33.8 39 72
119 CLHB 61 16.9 41 71 2900 15 4 200
80-50(I)B 87 24.2 38
113 31.4 32
120 CLHB 70 19.4 87 62 2900 37 4 330
80-80(I) 100 27.8 80 69
130 36.1 68 68
121 CLHB 65.4 18.2 76 61 2900 30 4 315
80-80(I)A 93.5 26 70 68
121.6 33.8 59.5 67
122 CLHB 61 16.9 65 66 2900 30 4 315
80-80(I) 87 24.2 60
113 31.4 51
123 CLHB 70 19.4 132 55 2900 75 4 675
80-125(I) 100 27.8 125 66
130 36.1 114 67
124 CLHB 66.5 18.5 119 55 2900 55 4 535
80-125(I)A 95 26.4 113 66
123.6 34.3 104 67
No. Model FlowQ Head Efficiency Speed Motor 必需汽 Weight
H η N Power 蚀余量 W
（m） (%) (r/min) P (NPSH)r （Kg）
(m3/n) (I/S) (KW) (m)
125 CLHB 63 17.5 106.6 65 2900 45 4 425
80-125(I)B 90 25 101
117 32.5 92
126 CLHB 58 16.1 90 63 2900 37 4 370
80-125(I)C 82 22.8 85
107 29.7 76
127 CLHB 70 19.4 13.6 66 2900 5.5 4.5 115
100-12.5 100 27.8 12.5 76
130 36.1 11 75
128 CLHB 62.6 17.4 11 64 2900 4 4.5 90
100-12.5A 89 24.7 10 74
116 32.2 8.8 74
129 CLHB 70 19.4 23.5 70 2900 11 4.5 170
100-20 100 27.8 20 76
130 36.1 14 65
130 CLHB 62.6 17.4 19 68 2900 7.5 4.5 120
100-20A 89 24.7 16 74
116 32.2 11 63
131 CLHB 700 19.4 36.5 70 2900 15 4.5 200
100-32 100 27.8 32 76
130 36.1 24 65
132 CLHB 65.4 18.2 32 68 2900 11 4.5 185
100-32A 93.5 26 28 74
121.6 33.8 21 67
133 CLHB 60.6 16.824.131.3 27 72 2900 11 4.5 180
100-32B 86.6 24
112.5 18
134 CLHB 70 19.4 54 65 2900 22 4 245
100-50 100 27.8 50 74
130 36.1 42 73
135 CLHB 65.4 18.2 47.5 64 2900 18.5 4 215
100-50A 93.5 26 44 73
121.6 33.8 37 72
136 CLHB 61 16.9 41 71 2900 15 4 195
100-50B 87 24.2 38
113 31.4 34
137 CLHB 70 19.4 87 62 2900 37 4 345
100-80 100 27.8 80 69
130 36.1 68 68
138 CLHB 65.4 18.2 76 61 2900 30 4 330
100-80A 93.5 26 70 68
121.6 33.8 59.5 67
139 CLHB 61 16.9 65 67 2900 30 4 330
100-80B 87 24.2 60
113 31.4 51
140 CLHB 70 19.4 132 55 2900 75 4 685
100-125 100 27.8 125 66
130 36.1 114 67
141 CLHB 66.5 18.5 119 55 2900 55 4 550
100-125A 95 26.4 113 66
123.6 34.3 104 67
142 CLHB 63 17.5 106.6 65 2900 45 4 440
100-125B 90 25 101
117 32.5 92
143 CLHB125-125C 58 16.1 90 63 2900 37 4 385
82 22.8 85
107 29.7 76
144 CLHB125-12.5 96 26.7 13 78 2900 11 4 180
60 44.4 12.5 82
192 53.3 12 84
145 CLHB 86 23.9 10.4 77 2900 7.5 4 130
125-12.5A 143 39.7 10
172 47.8 9.6
146 CLHB 96 26.7 22.6 76 2900 15 4 225
125-20 160 44.4 20 80
192 53.3 17 78
147 CLHB125-20A 86 23.9 18 73 2900 11 4 210
143 39.7 16 77
172 47.8 13.6 75
148 CLHB125-32 96 26.7 36 78 2900 22 4 265
160 44.4 32
192 53.3 28
149 CLHB 90 25 31.5 76 2900 18.5 4 230
125-32A 150 41.7 28
180 50 24.5
150 CLHB 83 21.7 27 73 2900 15 4 215
125-32B 138 38.3 24
166 46.1 21
151 CLHB 96 26.7 55 69 2900 37 5 400
125-50 160 44.4 50 79
192 53.3 46 78
152 CLHB125-50A 90 25 48.4 64 2900 30 5 380
150 41.7 44 74
180 50 40.5 73
153 CLHB 83 21.8 41.3 72 2900 22 5 325
125-50B 138 38.3 37.5
166 46.1 34.5
154 CLHB 96 26.7 87 65 2900 55 4.5 580
125-80 160 44.4 80 77
192 53.3 73 74
155 CLHB 90 25 76 74 2900 45 4.5 495
125-80A 150 41.7 70
180 50 64
序 Model FlowQ Head Efficiency Speed Motor 必需汽 Weight
号 H η N Power 蚀余量 W
（m） (%) (r/min) P (NPSH)r （Kg）
(m3/n) (I/S) (KW) (m)
156 CLHB 83 21.7 65 73 2900 37 4.5 430
125-80B 138 38.3 60
166 46.1 55
157 CLHB 96 26.7 133 70 2900 90 4.5 800
125-125 160 44.7 125 72
192 53.3 119 68
158 CLHB 90 25 117 65 2900 75 4.5 715
125-125A 150 41.7 110 70
180 50 104.6 71
159 CLHB 86 23.8 106.4 65 2900 75 4.5 710
125-125B 143 39.7 100 69
172 47.8 95.2 66
160 CLHB 80.5 22.4 96 68 2900 55 4.5 590
125-125C 134 37.2 88
161 44.7 86
161 CLHB 120 33.3 35 64 2900 30 4.5 325
125-32(I) 200 55.6 32 76
240 66.7 28 75
162 CLHB 112 31.1 31.5 63 2900 22 4.5 295
125-32(I)A 187 51.9 28 75
224 62.2 24 75
163 CLHB 120 33.3 55 63 2900 45 4.5 430
125-(I) 200 55.6 50 74
240 66.7 46 73
164 CLHB 112 31.1 48.4 62 2900 37 4.5 420
125-(I)A 187 51.9 44 73
224 62.2 40 73
165 CLHB 104 28.9 41 61 2900 30 4.5 410
125-(I)B 173 48.1 37 72
208 57.8 34.5 73
166 CLHB 120 33.3 87 65 2900 75 4.5 685
125-80(I) 200 55.6 80 76
240 66.7 72 74
167 CLHB125-80(I)A 112 31.1 76 64 2900 55 4.5 545
187 51.9 70 75
224 62.2 63 73
168 CLHB 104 28.9 65 63 2900 45 4.5 460
125-80(I)B 173 48.1 60 74
208 57.8 54 72
169 CLHB 120 33.3 133 58 2900 110 4.5 950
125-125(I) 200 55.6 125 73
240 66.7 120 75
170 CLHB 112 31.1 116 57 2900 90 4.5 785
125-125(I)A 187 51.9 110 72
224 62.2 105 74
171 CLHB125-125(I)B 104 28.9 100 55 2900 75 4.5 750
173 48.1 95 70
208 57.8 91 72
172 CLHB 112 31.1 13.5 60 1450 11 3.5 200
150-12.5 160 44.4 12.5 72
208 57.8 10 66
173 CLHB150-12.5A 98 27.2 11 68 1450 7.5 3.5 180
140 39 10 70
182 50.6 8.5 71
174 CLHB 112 31.1 23.5 66 1450 15 3.5 250
150-20 160 44.4 20 71
208 57.8 14 66
175 CLHB 98 27.2 19 65 1450 11 3.5 230
150-20A 140 39 17 70
182 50.6 11 66
176 CLHB 84 23.3 15.5 62 1450 7.5 3.5 200
150-20B 120 33.3 14 70
156 43.3 10 68
177 CLHB 112 31.1 33 62 1450 22 3.5 280
150-32 160 44.4 32 70
208 57.8 28 80
178 CLHB 98 27.2 29 60 1450 18.5 3.5 270
150-32A 140 39 28 71
182 50.6 26.6 80
179 CLHB 84 23.3 25 66 1450 15 3.5 250
150-32B 120 33.3 24 71
156 43.3 22.5 70
180 CLHB 112 31.1 52 60 1450 37 3.5 515
150-50 160 44.4 50 72
208 57.8 42 80
181 CLHB 98 27.2 46 60 1450 30 3.5 500
150-50A 140 39 44 70
182 50.6 39 80
182 CLHB 84 23.3 41 66 1450 22 3.5 480
150-50B 120 33.3 38 70
156 43.3 30 73
183 ISG 112 31.1 83 67 1450 55 3.5 900
B150-80 160 44.4 80 72
208 57.8 75 69
184 CLHB 98 27.2 73 65 1450 45 3.5 765
150-80A 140 39 70 70
182 50.6 66 67
185 CLHB 84 23.3 65 62 1450 37 3.5 660
150-80B 120 33.3 60 67
156 43.3 56 65
186 CLHB 120 33.3 87 65 2900 75 4.2 710
150-80 200 55.6 80 76
240 66.7 72 74
No. Model FlowQ Head Efficiency Speed Motor 必需汽 Weight
H η N Power 蚀余量 W
（m） (%) (r/min) P (NPSH)r （Kg）
(m3/n) (I/S) (KW) (m)
187 CLHB 112 31.1 76 64 2900 55 4.2 560
150-80A 187 51.9 70 75
224 62.2 63 73
188 CLHB 104 28.9 65 63 2900 45 4.2 465
150-80B 173 48.1 60 74
208 57.8 54 72
189 CLHB 120 33.3 133 58 2900 110 4.5 980
150-125 200 55.6 125 73
240 66.7 120 75
190 CLHB 112 31.1 116 57 2900 90 4.5 805
150-125A 187 51.9 110 72
224 62.2 105 74
191 CLHB 104 28.9 100 55 2900 75 4.5 725
150-125B 173 48.1 95 70
208 57.8 91 72
192 CLHB 140 38.9 13.8 68 1450 15 3 265
150-12.5(I) 200 55.6 12.5 78
260 72.2 10.6 78
193 CLHB 125 34.7 11 66 1450 11 3 245
150-12.5(I)A 179 49.7 10 76
233 64.6 8.5 76
194 CLHB 140 38.9 21.8 73 1450 18.5 3 300
150-20(I) 200 55.6 20 79
260 72.2 17 77
195 CLHB 129 35.8 18.5 72 1450 15 3 265
150-20(I)A 184 51.2 17 78
240 66.7 14.4 76
196 CLHB 117 32.5 15.2 71 1450 11 3 245
150-20(I)B 167 46.4 14 76
217.5 60.4 12 74
197 CLHB 140 38.9 33.8 70 1450 30 3.5 410
150-32(I) 200 55.6 32 78
260 72.2 28 73
198 CLHB 131 36.4 29.5 69 1450 22 3.5 335
150-32(I)A 187 51.9 28 77
243 67.5 24.5 77
199 CLHB 121 33.6 25 69 1450 18.5 3.5 310
150-32(I)B 173 48.1 24 76
225 62.5 21 74
200 CLHB 140 38.9 53 68 1450 45 3.5 500
150-50(I) 200 55.6 50 75
260 72.2 44 71
201 CLHB 131 36.4 46.4 67 1450 37 3.5 460
150-50(I)A 187 51.9 44 74
243 67.5 38.3 70
202 CLHB 122 33.9 40.5 66 1450 30 3.5 435
150-50II)B 174 48.3 38 73
226.5 62.9 33 69
203 CLHB150-50(I)C 112 31.1 34 71 1450 22 3.5 370
160 44.4 32
208 57.8 28
204 CLHB150-80(I) 140 38.9 84 62 1450 75 3.5 1050
200 55.6 80 69
260 72.2 75 67
205 CLHB 131 36.4 73 61 1450 75 3.5 900
150-80(I)A 187 51.9 70.5 68
243 67.5 66 66
206 CLHB 122 33.9 65 60 1450 55 3.5 780
150-80(I)B 174 48.3 62 66
226.5 62.9 58 64
207 CLHB 112 31.1 56.5 58 1450 45 3.5 650
150-80(I)C 160 44.4 54.5 64
208 57.8 51 62
208 CLHB200-12.5 140 38.9 13.8 68 1450 15 3 270
200 55.6 12.5 78
260 72.2 10.8 78
209 CLHB200-12.5A 125 34.7 11 66 1450 11 3 245
179 49.7 10 76
233 64.6 8.5 76
210 CLHB 140 38.9 21.8 73 1450 18.5 3 310
200-20 200 55.6 20 79
260 72.2 17 77
211 CLHB 129 35.8 18.5 72 1450 15 3 365
200-20A 184 51.2 17 78
240 66.7 14.4 76
212 CLHB 117 32.5 15.2 71 1450 11 3 245
200-200B 167 46.4 14 76
217.5 60.4 12 74
213 CLHB 140 38.9 33.8 70 1450 30 3.5 420
200-32 200 55.6 32 78
260 72.2 28 78
214 CLHB 131 36.4 29.5 69 1450 22 3.5 350
200-32A 187 51.9 27 77
243 67.5 24.5 78
215 CLHB 121 33.6 25 69 1450 18.5 3.5 320
200-32B 173 48.1 24 76
225 62.5 21 73
216 CLHB 140 38.9 53 68 1450 45 3.5 495
200-50 200 55.6 50 75
260 72.2 44 71
217 CLHB 131 36.4 46.6 67 1450 37 3.5 460
200-50A 187 51.9 44 74
243 67.5 38.3 70
No. Model FlowQ Head Efficiency Speed Motor 必需汽 Weight
H η N Power 蚀余量 W
（m） (%) (r/min) P (NPSH)r （Kg）
(m3/n) (I/S) (KW) (m)
218 CLHB 122 33.9 40.5 73 1450 30 3.5 445
200-50B 174 48.3 38
226.5 62.9 33
219 CLHB 112 31.1 34 71 1450 22 3.5 380
200-50C 160 44.4 32
208 57.8 28
220 CLHB 280 77.8 13.4 70 1450 22 4 385
200-12.5(I) 400 111.1 12.5 80
520 144 10.5 79
221 CLHB 250 69.4 10.7 68 1450 18.5 4 470
200-12.5(I)A 358 99.4 10 78
465 129.2 8.5 77
222 CLHB 280 77.8 22.2 75 1450 30 4 480
200-20(I) 400 111.1 20 80
520 144 14 72
223 CLHB 250 69.4 19 73 1450 22 4 430
200-20(I)A 358 99.4 17 78
465 129.2 13 70
224 CLHB 226 62.8 15.5141 70 1450 18.5 4 390
200-20(I)B 322 89.4 75
419 116.4 73
225 CLHB 280 77.8 36 73 1450 55 4 680
200-32(I) 400 111.1 32 80
520 144 26 75
226 CLHB 262 72.8 31.5 72 1450 45 4 560
200-32(I)A 374 103.9 28 79
486 135 23 74
227 CLHB 242 67.2 27.5 78 1450 45 4 535
200-32(I)B 346 96.1 24
450 125 18.5
228 CLHB 280 77.8 54.5 75 1450 37 4 835
200-50(I) 400 111.1 50 81
520 144 39 77
229 CLHB200-50(I)A 262 72.8 48 73 1450 75 4 835
352 103.9 44 80
486 135 35 75
230 CLHB 242 67.2 42 72 1450 75 4 700
200-50(I)B 246 96.1 38 78
450 125 29.6 74
231 CLHB 224 62.2 34.9 70 1450 55 4 585
200-50(I)C 320 88.9 3 76
416 115.6 225 72
232 CLHB 280 77.8 87 73 1450 45 5 1565
200-80(I) 400 111.1 80 80
520 144 72 77
233 CLHB 262 72.8 76 72 1450 132 5 1415
200-80(I)A 374 103.9 70 79
486 135 63 76
234 CLHB200-80(I)B 242 67.2 65 71 1450 110 5 1290
346 96.1 60 78
450 125 54 75
235 CLHB200-80(I)C 224 62.2 62 707674 1450 90 4 1050
320 88.9 56
416 115.6 48
236 CLHB200-125(I) 280 77.8 135 79 1450 75 4 1680
400 111.1 125
520 144.4 104
237 CLHB200-125(I)A 256 71.1 120 78 1450 200 4 1680
352 97.8 112
448 124 88
238 CLHB 224 62.2 104 77 1450 132 4 1450
200-125(I)B 320 88.9 96
416 115.6 72
239 CLHB 400 111.1 13.5 78 1450 30 4 550
250-12.5 650 152.8 12.5 82
670 186.1 11 78
240 CLHB 368 102.2 11.6 74 1450 22 5 500
250-12.5A 506 140.6 10.8 80
607 168.7 9.5 76
241 CLHB 400 111.1 22.5 78 1450 45 5 620
250-20 550 152.8 20 82
670 186.1 16 84
242 CLHB 368 102.2 19.5 80 1450 37 5 550
250-20A 506 140.6 17
607 168.7 14.6
243 CLHB 400 111.1 36 77 1450 75 5 915
250-32 550 152.8 32 80
670 186.1 26 81
244 CLHB 368 102.2 31.5 78 1450 55 5 840
250-32A 506 140.6 28
607 168.7 23
245 CLHB 339 94 26.5 76 1450 45 5 695
250-32B 466 129.3 2520
559 155.2
246 CLHB 400 111.1 54.5 69 1450 110 5 1557
250-50 550 152.8 50 76
670 186.1 39 72
247 CLHB 368 102.2 48 68 1450 90 5 1055
250-50A 506 140.6 44 74
607 168.7 35.5 70
248 CLHB 339 941 43 66 1450 75 5 910
250-50B 466 29.3 39.5 72
559 155.2 32.5 68
No. Model FlowQ Head Efficiency Speed Motor 必需汽 Weight
H η N Power 蚀余量 W
（m） (%) (r/min) P (NPSH)r （Kg）
(m3/n) (I/S) (KW) (m)
249 CLHB 311 86.5 38 63 1450 75 5 910
250-50C 428 119 35 69
514 142.8 28 65
250 CLHB 400 111.1 76 75 1450 160 5 1545
250-70 550 152.8 70 76
670 186.1 63 78
251 CLHB 368 102.2 65 74 1450 132 5 1355
250-70A 506 140.6 60 75
607 168.7 54 77
252 CLHB 339 941 55 73 1450 90 5 1055
250-70B 466 29.3 50 74
559 155.2 42 74
253 CLHB 311 86.5 49.5 71 1450 75 5 965
250-70C 428 119 44 72
514 142.8 38 73
254 CLHB 500 111.1 84 73 1450 200 5 1750
250-80 550 152.8 80 77
670 186.1 70 75
255 CLHB 368 102.2 75 72 1450 160 5 1560
250-80A 506 140.6 71 75
670 168.7 62.5 74
256 CLHB 339 94 66.5 70 1450 132 5 1420
250-80B 466 129.3 63.5 73
559 155.2 55.5 72
257 CLHB 311 86.5 58 69 1450 110 5 1350
250-80C 428 119 55 71
514 142.8 48.5 70
258 CLHB 500 138.9 13.5 78 1450 37 5 985
300-12.5 720 200 12.5 83
860 238.9 10.5 78
259 CLHB 460 127.8 12 77 1450 30 5 925
300-12.5A 662 184 11 82
791 219.8 9.3 77
260 CLHB 480 133.3 20 77 1450 55 5 1135
300-18 720 200 18 81
900 250 15.5 74
261 CLHB 438 121.7 16.5 75 1450 45 5 1040
300-18A 607 182.5 15 79
821 228.1 13 72
262 CLHB 400 111.1 14 73 1450 37 5 900
300-18B 600 167 12.5 77
750 208.3 11 70
263 CLHB 500 138.9 23 80 1450 55 5 900
300-20 720 200 20 83
900 250 16 84
264 CLHB 460 127.8 20.2 81 1450 45 5 785
300-20A 662 184 17.5
791 219.8 14.2
265 CLHB 480 133.3 31 77 1450 75 5 1350
300-28 720 200 28 81
900 250 25 77
266 CLHB 444 123.3 26.5 76 1450 75 5 1350
300-28A 666 185 24 80
833 231.4 21.5 76
267 CLHB 415 115.3 23 79 1450 55 5 1170
300-28B 623 173.1 21
779 216.4 18.5
268 CLHB 500 138.9 36 79 1450 90 5 1350
300-32 720 200 32 82.5
900 250 26 84
269 CLHB300-323A 460 127.8 30.5 74 1450 75 5 1250
662 184 28 80
791 219.8 23.5 74
270 CLHB 423 117.6 25.5 72 1450 55 5 1080
300-32B 609 169.3 23.5 78
728 202.2 20 73
271 CLHB 480 133.3 48 76 1450 132 5 1900
300-44 720 200 44 84
900 250 34 82
272 CLHB 444 123.3 41.4 80 1450 110 5 1700
300-44A 666 185 38
833 231.4 30
273 CLHB 409 113.6 35 78 1450 90 5 1550
300-44B 614 170.6 32
767 213.1 25
274 CLHB 500 138.9 54.5 75 1450 132 5.5 1725
300-50 720 200 50 80
900 250 42 78
275 CLHB 460 127.8 47 74 1450 110 5.5 1520
300-50A 662 184 44 79
791 219.8 36.5 77
276 CLHB 423 117.6 41 72 1450 90 5.5 1400
300-50B 609 169.3 38 77
728 202.2 32 75
277 CLHB 389 108.2 35.5 69 1450 75 5.5 1250
300-50C 561 155.7 33 74
670 186 27.5 72
278 CLHB 500 138.9 71 75 1450 200 5.5 2150
300-65 720 200 65 81
900 250 58 82
279 CLHB 460 127.8 60 74 1450 160 5.5 1730
300-65A 662 184 55 80
791 219.8 49 81
280 CLHB 423 117.6 49 73 1450 110 5.5 1630
300-65B 609 169.3 45 79
728 202.2 35 80
No. Model FlowQ Head Efficiency Speed Motor 必需汽 Weight
H η N Power 蚀余量 W
（m） (%) (r/min) P (NPSH)r （Kg）
(m3/n) (I/S) (KW) (m)
281 CLHB 389 108.2 42 72 1450 90 5.5 1500
300-65C 561 155.7 38 78
670 186 30 79
282 CLHB 500 138.9 84 74 1450 250 5.5 2280
300-80 720 200 80 80
900 250 72 75
283 CLHB 460 127.8 74 73 1450 200 5.5 2150
300-80A 662 184 70.5 79
791 219.8 63.5 74
284 CLHB 423 1176 65 71 1450 160 5.5 1980
300-80B 609 169.3 62 77
728 202.2 56 72
285 CLHB 389 108.2 57 68 1450 132 5.5 1850
300-80C 561 155.7 54.5 75
670 186 49 70
286 CLHB 718 199.4 15 75 970 55 5.5 1200
350-12.5 1080 300 12.5 83
1345 373.6 11 81
287 CLHB 663 184.2 12 72 970 45 5.5 1020
350-12.5A 995 276.4 10 81
1245 345.8 8.5 79
288 CLHB 718 199.4 23.5 76 970 90 5.5 1450
350-20 1080 300 20 82
1345 373.6 18 80
289 CLHB 663 184.2 20 74 970 75 5.5 1320
350-20A 995 376.4 17 80
1245 345.8 15 78
290 CLHB 620 172.2 17.5 71 970 55 5.5 1150
350-20B 931 258.6 15 78
1165 323.6 13 77
291 CLHB 718 199.4 36.4 79 1450 132 5.5 2150
350-32 1080 300 32 83
1345 373.6 28.5 78
292 CLHB 663 184.2 30.5 74 1450 110 5.5 2000
350-32A 995 276.4 27 81
1245 345.6 25 76
293 CLHB 620 172.2 26.5 73 1450 90 5.5 1850
350-32B 931 258.6 24 79
1165 323.6 21 75
294 CLHB 718 199.4 44.6 82 1450 160 5.5 1700
350-40 1080 300 40
1345 373.6 34.6
295 CLHB 642 178.3 35.7 80 1450 132 5.5 1500
350-40A 965 268.1 32
120 334.2 27.7
296 CLHB 600 166.7 31.2 78 1450 110 5.5 1300
350-40B 900 250 28.2
1121 311.4 24.6
297 CLHB 718 199.4 54.7 78 1450 200 5.5 2300
350-50 1080 300 50 83
1345 373.6 44.2 77
298 CLHB 663 184.2 48.3 77 1450 160 5.5 2100
350-50A 995 276.4 44 81
1245 345.8 36.8 76
299 CLHB 620 172.2 42.5 79 1450 132 5.5 1950
350-50B 931 258.6 38
1165 323.6 32.3
300 CLHB 718 199.4 64.8 82 1450 250 5.5 2500
350-60 1080 300 60
1345 373.6 55
301 CLHB 663 184.2 59.2 80 1450 200 5.5 2250
350-60A 995 376.4 54
1245 345.8 48
302 CLHB 620 172.2 51.3 78 1450 160 5.5 2100
350-60B 931 258.6 46.9
1165 323.6 41.3
303 CLHB350-12.5(I) 1000 277.8 13.5 76 970 55 6 1250
1200 333.3 12.5 80
1450 402.8 10.5 77
304 CLHB 900 250 11.5 76 970 45 6 1150
350-12.5(I)A 1080 300 10.5 80
1300 361 9 76
305 CLHB 1000 277.8 23 76 970 90 6 1580
350-20(I) 1200 333.3 20 80
1450 402.8 16 76
306 CLHB 900 250 19 73 970 75 6 1350
350-20(I)A 1080 300 17 78
1300 361 14 74
307 CLHB350-32(I) 1000 277.8 36 74 1450 160 6 1870
1200 333.3 32 78
1450 402.8 26 75
308 CLHB350-32(I)A 900 250 31.5 72 1450 132 6 1720
1080 300 28 76
1300 361 23 73
309 CLHB 745 207 27 71 1450 110 6 1650
350-32(I)B 985 273 25 75
1182 328 20 72
310 CLHB 1000 277.8 55 70 1450 250 6 2350
350-50(I) 1200 333.3 50 74
1450 402.8 43 72
311 CLHB 900 250 47.5 68 1450 200 6 2100
350-50(I)A 1080 300 44 72
1300 361 38 70
312 CLHB 745 207 42 60 1450 160 6 2000
350-50(I)B 985 273 38.5 70
1182 328 34 68

Inquiry/Feedback to our sales office

The easy and safe way to contact us

verifyImg

More way to contact us

Tel: 86-23-68428875,68428422,68838417

Fax: 86-4008266163-88928

Email: sales@jinbomarine.com

You Have Visited
