4D180 Series Electro-Hydraulic Control Operated Valve

4D180 Series Electro-Hydraulic Control Operated Valve   Principle :        Mounting bolt tightening torque 22-39 N.m Weight 24.7 Kg Nominal...

Other Marine Valves & Accessories1 Photos ISO9001 Supplier

Loading product images...

Category: Other Marine Valves & Accessories

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

We can supply according to your requirement.

China 4D180 Series Electro-Hydraulic Control Operated Valve:

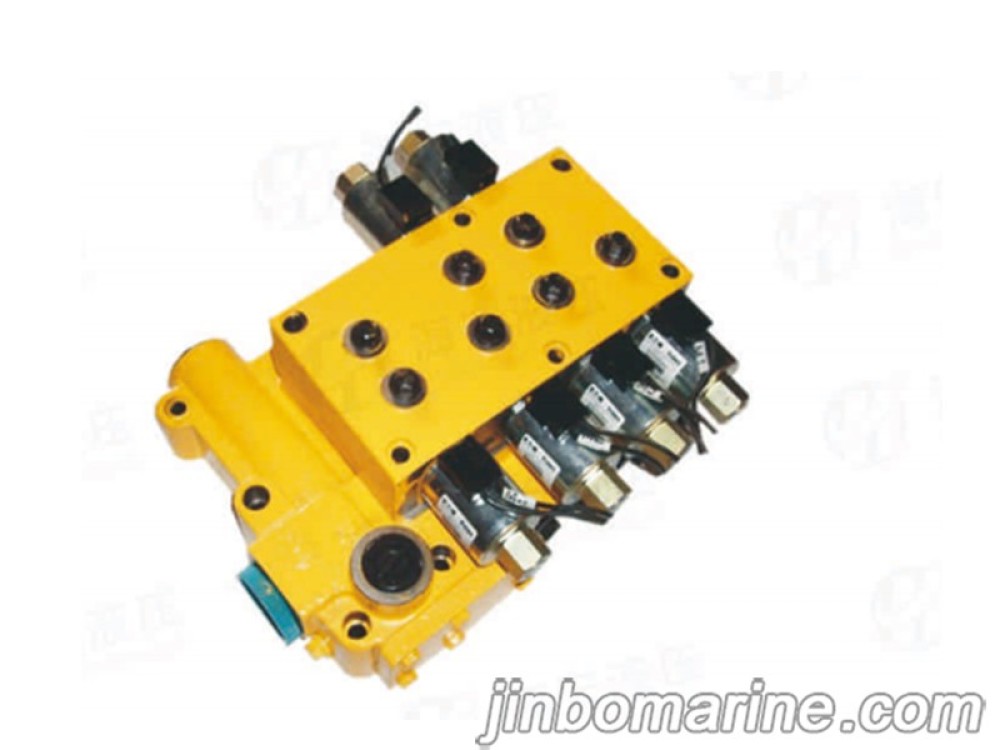

4D180 Series Electro-Hydraulic Control Operated Valve

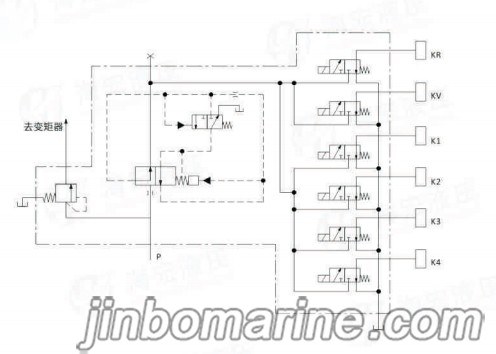

Principle :

Mounting bolt tightening torque			22-39 N.m
Weight			24.7 Kg
Nominal flow			120 L/min
Gear pressure			16-20 Bar
Pressure difference between gears			≤1 bar
Pressure oscillation			≤ ±0.5 bar
Rated voltage			DC 24 V
Rated current			0.83 A (measured at rated voltage,25 ℃)
Allowable voltage fluctuation range			±15 % of rated voltage
Hydraulic oil temperature range			-20 ~ +100 ℃
Viscosity range			10 ~ 380 mm2/s
Permissible fluid contamination class			-/19/16 (ISO 4406:1999)
