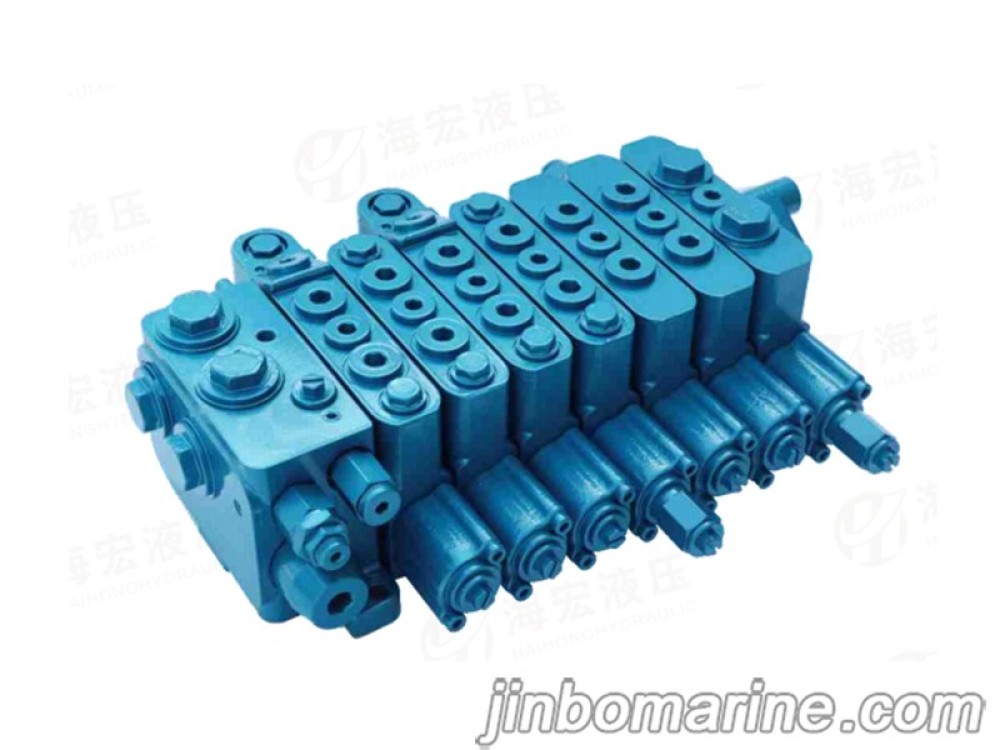

LFA12 Series Sectional Directional Control Valve
LFA12 Series Sectional Directional Control Valve Principle : Construction Sectional type Port connection Threaded Nominal size ...
Loading product images...
LFA12 Series Sectional Directional Control Valve
PDF Datasheet
We can supply according to your requirement.
China LFA12 Series Sectional Directional Control Valve:
LFA12 Series Sectional Directional Control Valve

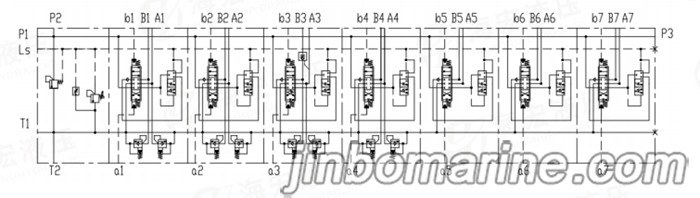

Principle :
| Construction | Sectional type | |||||
|---|---|---|---|---|---|---|
| Port connection | Threaded | |||||
| Nominal size | mm | 12 | ||||
| Nominal pressure | bar | 250 | ||||
| Max. pressure at ports A, B | bar | 280 | ||||
| Max. pressure at ports a, b | bar | 30 | ||||
| Max. allowable return line back pressure | bar | 15 | ||||
| Main relief valve setting | bar | 100 – 250 | ||||
| Secondary relief valve setting | bar | 150 – 315 | ||||
| Internal leakage(at 100 bar,36 m²/s,50°C) | mL/min | 30 | ||||
| Flow | L/min | 100 (max. per spool section) | ||||
| Hydraulic oil temperature range | °C | −20 ~ +100 | ||||
| Viscosity range | mm2/s | 10 – 460 | ||||
| Permissible oil contamination level | − | −/19/16 (ISO 4406:1999) | ||||
| Total weight | kg | 35 | ||||

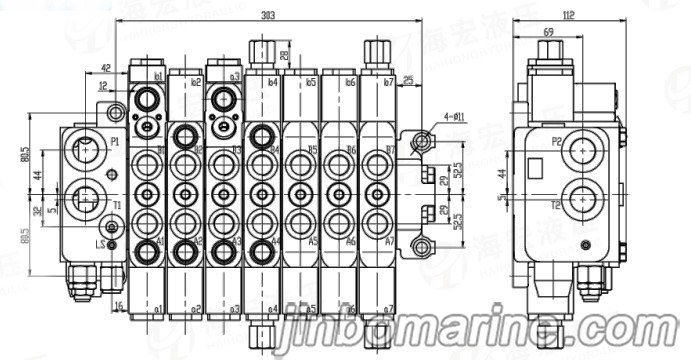

Size :
| Port | Size | Tightening torque | ||
|---|---|---|---|---|
| P, T, P2, T2 | G3/4" | 70 N·m | ||
| A, B, P3 | G1/2" | 50N·m | ||
| LS,M, a, b | G1/4" | 20 N·m | ||
