China 6WG180F Electro-Hydraulic Control Shift Valve:

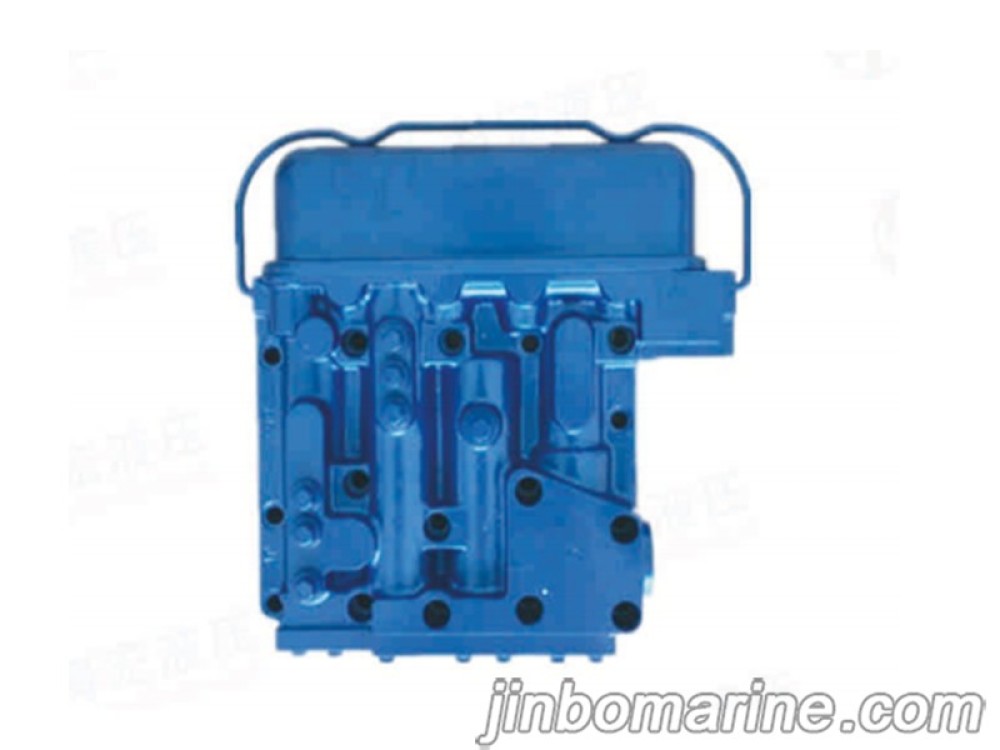

6WG180F Electro-Hydraulic Control Shift Valve

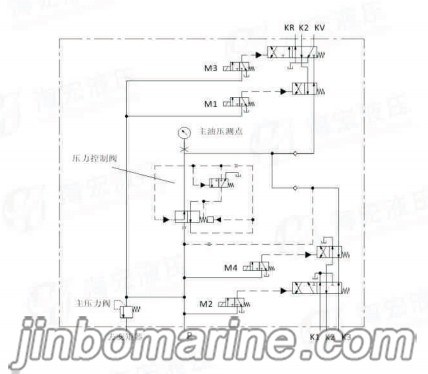

Principle :

Mounting bolt tightening torque			22-39 N.m
Weight			12.4 kg
Nominal flow			120 L/min
Gear pressure			14-18 bar
Pressure difference between gears			≤1 bar
Pressure oscillation			≤ ±0.5 bar
Rated voltage			DC 24 V
Rated current			0.83 A (measured at rated voltage,25 ℃)
Allowable voltage fluctuation range			±15 % of rated voltage
Hydraulic oil temperature range			-20 ~ +100 ℃
Viscosity range			10 ~ 380 mm2/s
Permissible fluid contamination class			-/19/16 (ISO 4406:1999)
