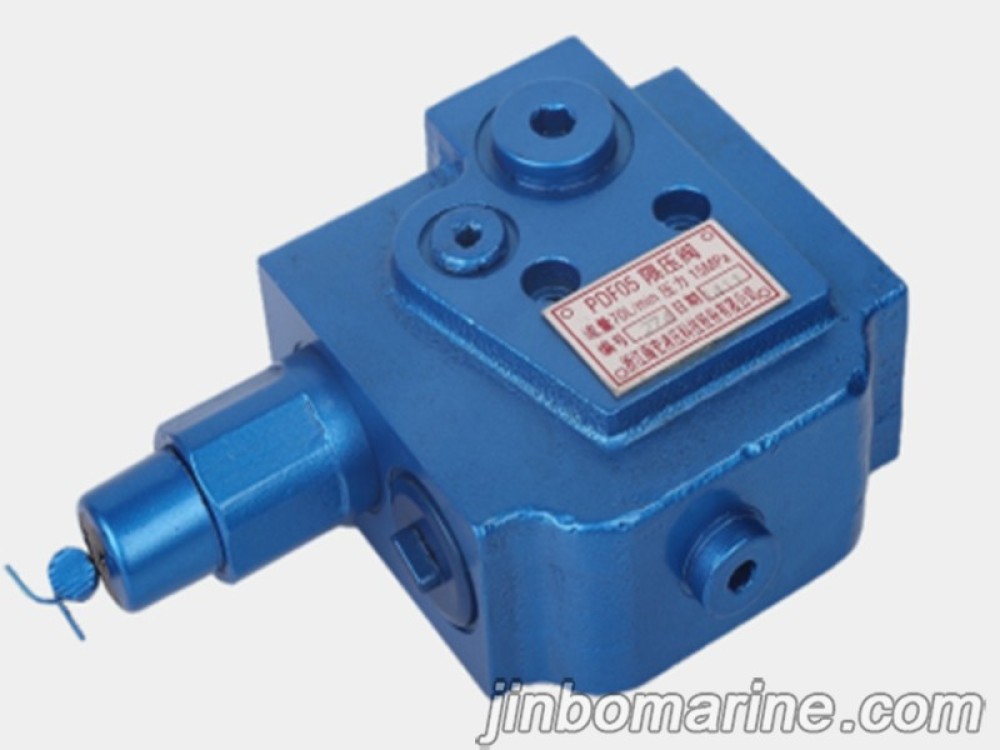

PDF05 Single‑Circuit Charging Valve
PDF Datasheet
We can supply according to your requirement.
China PDF05 Single‑Circuit Charging Valve:
PDF05 Single‑Circuit Charging Valve
This valve is installed between the pump outlet and the relief valve. It maintains the pressure level in the accumulator oil circuit within a specified limit (opening pressure and cut‑off pressure). The switching pressure differential (the difference between opening pressure and cut‑off pressure) is approximately 20% of the cut‑off pressure. The pressure range can be adjusted according to user requirements.

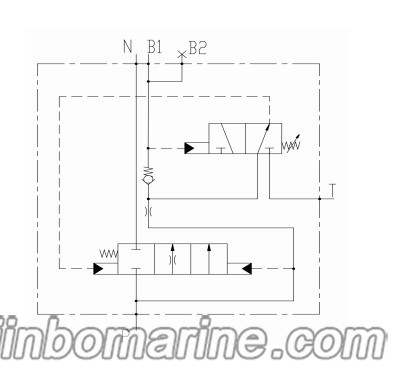

Principle :
| Max. Flow at Port P | 70L/min | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Charging Flow Rate | 17L/min | |||||||||
| Max. Accumulator Pressure | 20 MPa | |||||||||
| Viscosity Range | 10‑380 mm²/s | |||||||||
| Temperature Range | ‑20 ℃ ~ 100 ℃ | |||||||||
| Oil Fluid Cleanliness | The solid‑particle contamination level of oil fluid and system shall not exceed GB/T 14039‑2002‑/19/16 or NAS 1638 Class 10. | |||||||||
| Approximate Weight | 3.4Kg | |||||||||
