ZDF01 Single‑Circuit Hydraulic Brake Valve
ZDF01 Single‑Circuit Hydraulic Brake Valve This valve is designed based on pressure‑boost principle to reduce pedal force and improve brake sensitivity. It integrates structures suc...
Loading product images...
ZDF01 Single‑Circuit Hydraulic Brake Valve
PDF Datasheet
We can supply according to your requirement.
China ZDF01 Single‑Circuit Hydraulic Brake Valve:

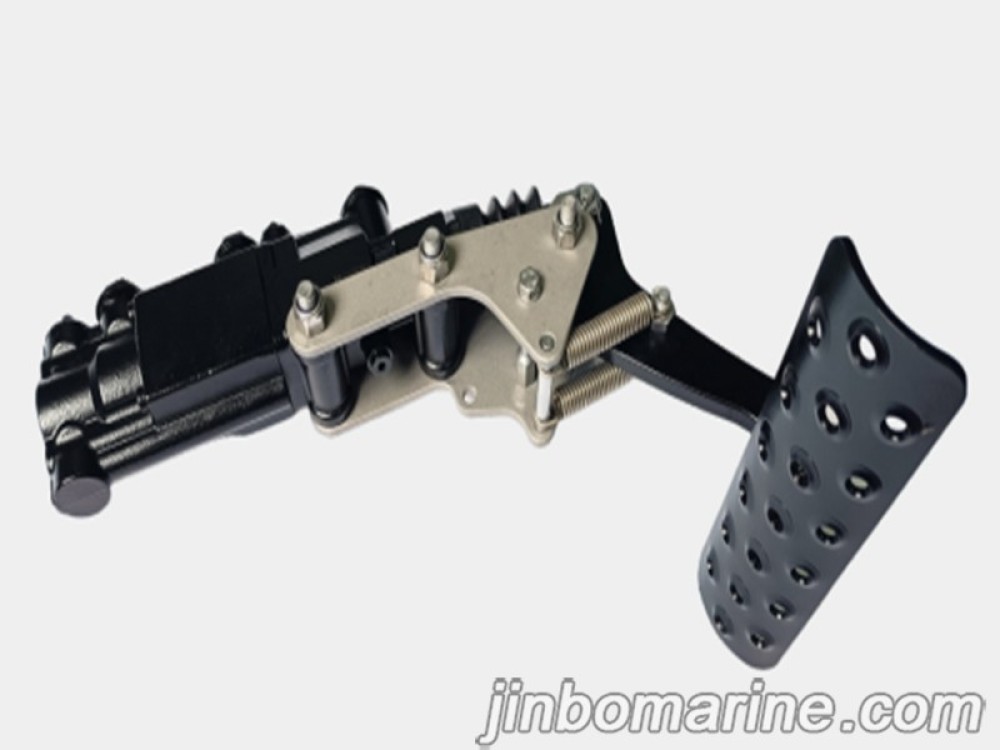

ZDF01 Single‑Circuit Hydraulic Brake Valve
This valve is designed based on pressure‑boost principle to reduce pedal force and improve brake sensitivity. It integrates structures such as a safety valve and check valve. The foot‑operated valve features an ergonomic angle for easy and effortless operation.

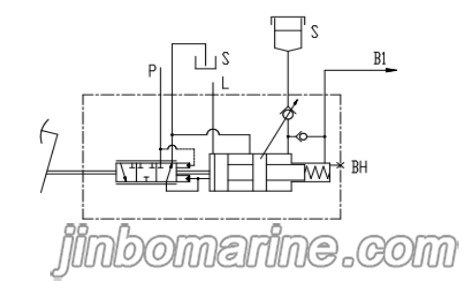

Principle :
| Total Displacement | 37.5 ml ~ 76.5 ml | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Pressure at Port P | ≤ 5 MPa | ||||||||
| Pressure-Boost Ratio | 1.7 | ||||||||
| Viscosity Range | 10‑380 mm²/s | ||||||||
| Temperature Range | -20 ℃ ~ 90 ℃ | ||||||||
| Oil Fluid Cleanliness | The solid‑particle contamination level of oil fluid and system shall not exceed GB/T 14039‑2002‑/19/16 or NAS 1638 Class 10. | ||||||||
| Approximate Weight | 10Kg | ||||||||
