Aluminum Electric Winch

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Aluminum Electric Winch:

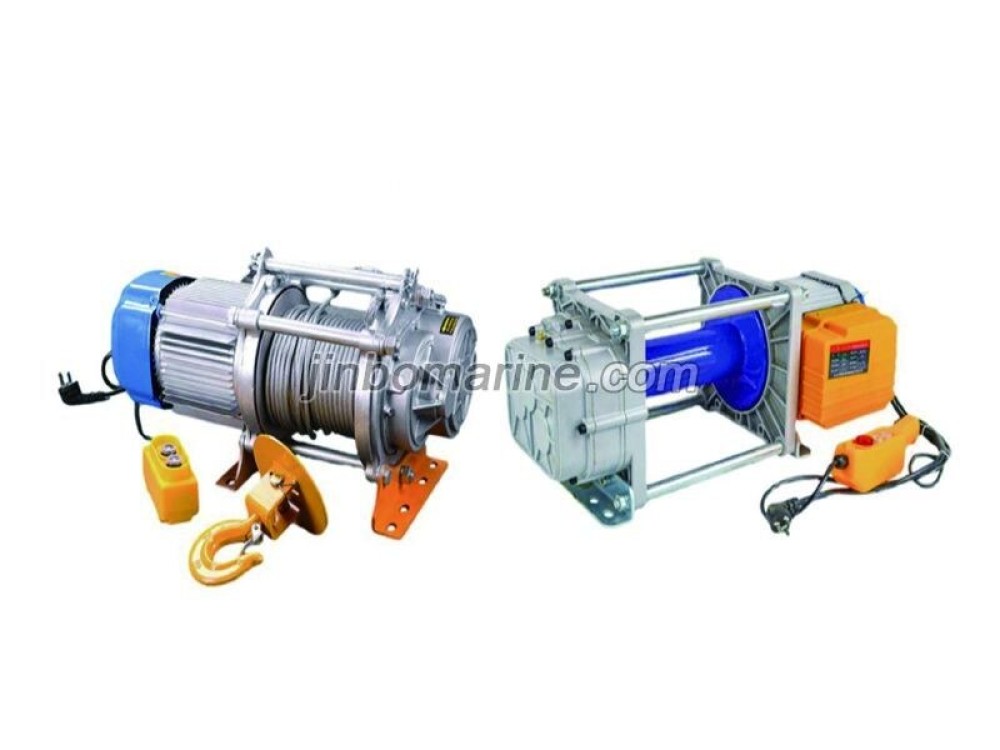

Aluminum Electric Winch

Model Usage Voltage Capacity Power Lifting Speed Lifting Height Dia of Rope N.W
(v) (kg) (kw) (m/min) (m) (mm) (kg)
1T Single-Hook 220 500 2.2 14 30-100 6 32
Double-Hook 1000 7
1T Single-Hook 380 500 1.7 16 30-100 6 34
Double-Hook 1000 8
1.2T Single-Hook 220 600 3 14 30-100 6 36
Double-Hook 1200 7
1.2T Single-Hook 380 600 2.2 14 30-100 6 34
Double-Hook 1200 7
1.5T Single-Hook 220 600 4 14 30-100 7 42
Double-Hook 1200 7
1.5T Single-Hook 380 750 2.5 14 30-100 7 42
Double-Hook 1500 7
2.5T Single-Hook 220 900 5 8 30-100 9.3 58
Double-Hook 1800 4
3T Single-Hook 380 1500 3 8 30-100 9.3 58
Double-Hook 3000 4
