CWZ Series Marine Horizontal Self-priming Centrifugal Ballast And Fire Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

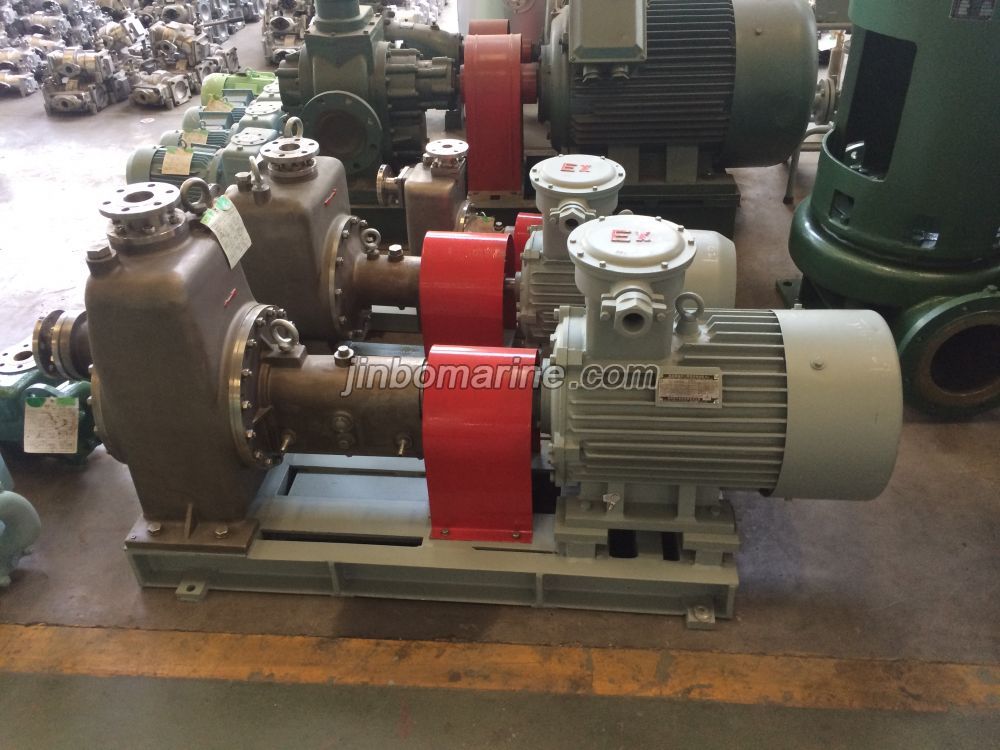

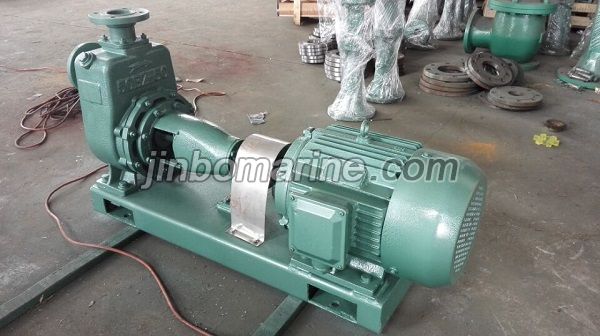

CWZ Series Marine Horizontal Self-priming Centrifugal Ballast And Fire Pump

CWZ series horizontal centrifugal self-priming marine pumps are well fixed and beautifully shaped and have high self-priming fuction.It can also be installed and used easily, which are best choices for the ships to drain water.

CWZ series horizontal centrifugal self-priming marine pumps are well used in all kinds of ships and warships for ballast, fire control, life water supply on the bilge. It can be used to pump sea water and fresh water, but the mediums temperature should be lower than 80℃.

Model explanation

  • 32CWZ-5
  • 32-Inlet and outlet diameter 32mm
  • CWZ-Marine horizontal self priming centrifugal pump
  • 5-Impeller specific speed divided by 10 compared with the integer value addition

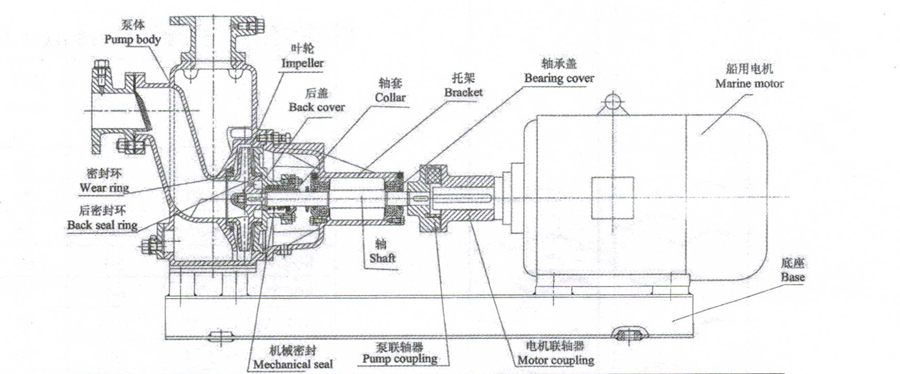

Structural Specification

Main Specification

MODEL CAPACITY HEAD RPM NPSH effecience power Electric Motor model

m3/h m
m % kw


50CWZ-8 21 21 2870 4 51 3 Y100L-2H(B3)
50CWZ-6 30 2890 56 4 Y112M-2H(B3)
50CWZ-5 42 2900 5 52 5.5 Y132S 1-2H(B3)
65CWZ-11 36 21 2890 4 64 4 Y112M-2H(B3)
65CWZ-8 30 2900 61 5.5 Y132S 1-2H(B3)
65CWZ-6 42 2930 5 57 11 Y160M1-2H(B3)
65CWZ-5 60 2930 52 15 Y160M2-2H(B3)
80CWZ-14 60 21 2900 4 67 7.5 Y132S 2-2H(B3)
80CWZ-11 30 2930 65 11 Y160M1-2H(B3)
80CWZ-8 42 2930 5 55 15 Y160M2-2H(B3)
80CWZ-6 60 2940 54 22 Y180M-2H(B3)
80CWZ-5.5 75 2950 56 30 Y200L1-2H(B3)
100CWZ-18 100 21 2930 5 68 11 Y160M1-2H(B3)
1OOCWZ-14 30 2930 65 15 Y160M2-2H(B3)
100CWZ-11 42 2940 58 22 Y180M-2H(B3)
100CWZ-8 60 2950 55 30 Y200L1-2H(B3)
100CWZ-6 85 2970 50 45 Y225M-2H(B3)
