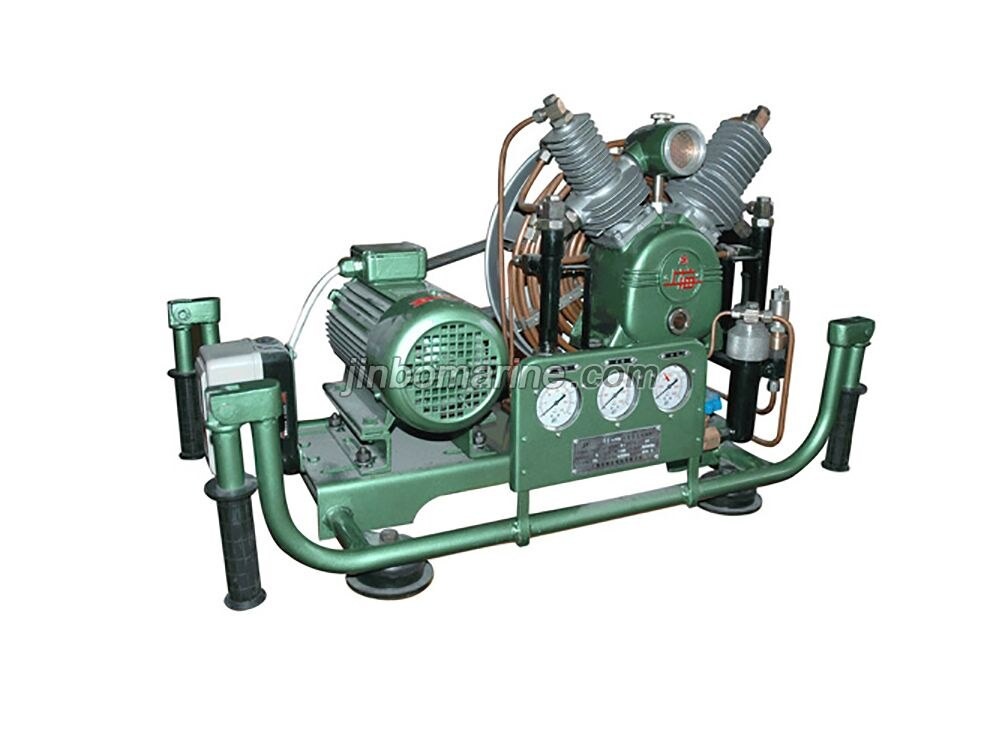

Diving Breathing High Pressure Air Compressor VF-206

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Diving Breathing High Pressure Air Compressor VF-206:

VF-206 high pressure air compressor is designed for breathing in diving, firefighting. It compresses free air to 30Mpa and removes oil, vapor and other contaminants by filters and separators. It is safe and reliable source of pure air. The air quality accords to EN international breathing compressed air quality.

Features

Air-cooling piston reciprocating
Oil splash lubrication
Copper pipe inter-cooler and after cooler
Specially treated alloy cylinder, piston and piston ring
High-strength nylon cooling fan assembly
Intake filter
Anti-shock floor mat
Manual condensate drain knob
Filling hose and filling valve
Safety valves protection for every stage
High temperature resistance plastic powder coating steel frame and base
Activated carbon, monocular sieve for air purification in the filter
Consumables and manuals are provided with every compressor
The warranty period is 1 years

Standard

GB18435-2001

EN12021

VF-206 is not only driven by three-phase and single-phase motors, but also equipped with gasoline engines for field or offshore operation.

Diving Breathing High Pressure Air Compressor VF-206 Main Specifications

Model Drive Operating pressure Delivery rate Power Dimension Net weight Noise level

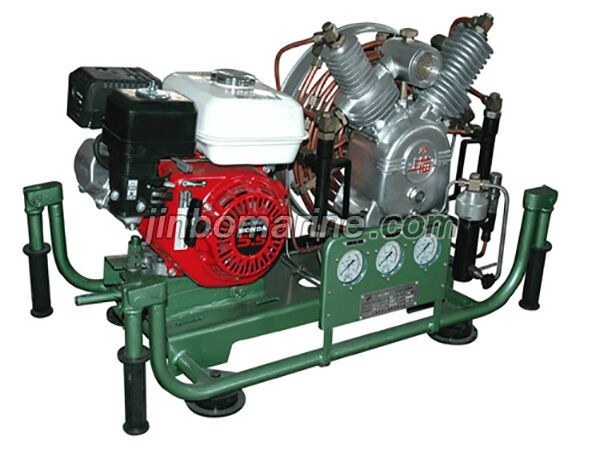

VF-206C Honda engine Max 200BAR 100L/min 5.5Hp 89*46*60Cm 71 kg <78dB(A)

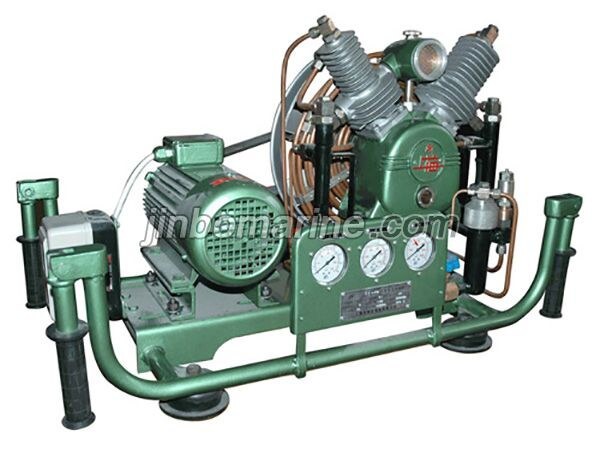

VF-206A Three-phase motor Max 300BAR 100L/min 3kw 89*46*60Cm 68 kg <78dB(A)
VF-206B Single-phase motor Max 200BAR 100L/min 2.2kw 89*46*60Cm 69 kg <78dB(A)
