FA-DPYCYS Double Core Flame Retardant Marine Power & Light Cable 0.6/1KV

  • Category:JIS C 3410 Cable
  • Material:Tinned Copper/EPR insulation/Common Shield/PVC sheath/Galvanized Steel Wire Braided/PVC Protective Covering
  • Standards:IEC 60092
  • Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

China FA-DPYCYS Double Core Flame Retardant Marine Power & Light Cable 0.6/1KV:

JIS C 3410- 1999 Marine Power & Lighting Cable

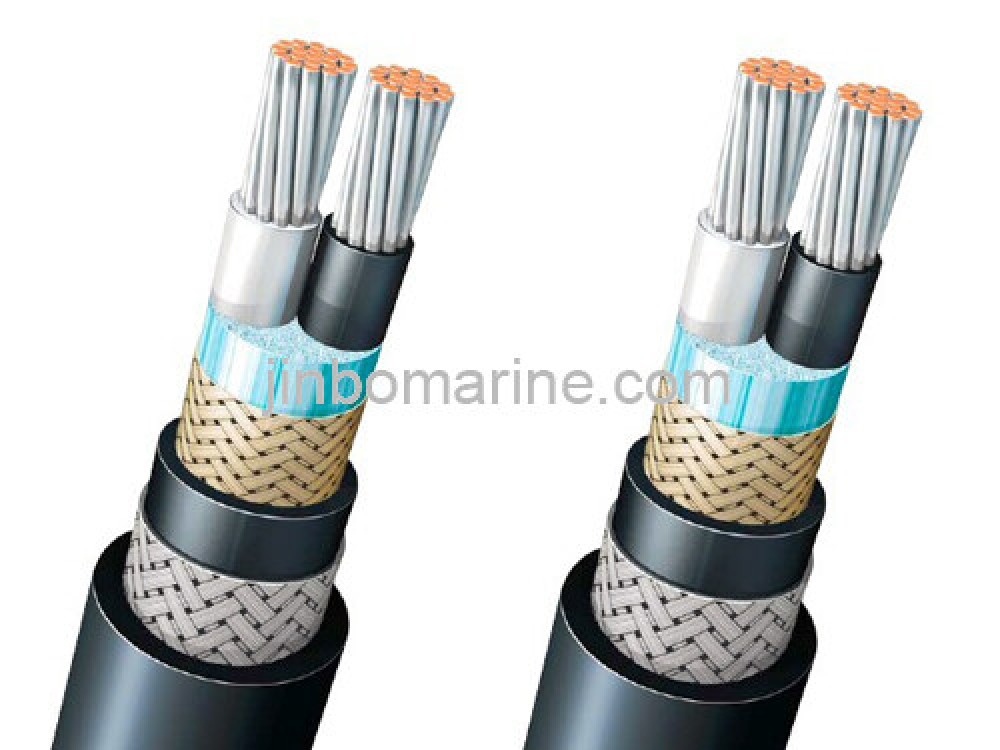

0.6/1KV DPYCYS Cable is Double cores EP Rubber insulation PVC Sheath Galvanized Steel Wire braided with protective covered with tinned copper wire common shield.

0.6/1KV FA DPYCYS Cable is Double cores EP Rubber insulation PVC Sheath Galvanized Steel Wire braided with protective covered Flame Retardant Cable with tinned copper wire common shield.

Cable Construction

Classification

Code

Construction details

Conductor

D

Tinned Copper Wire JIS C3410

Insulation

P

EPR as per JIS C 3410

Common Shield

S

Tinned Copper WIre

Sheath

Y

PVC as per JIS C 3410

Armor

C

Galvanized steel wire braided


CB

Tinned copper wire braided

Paint


The white paint should be painted uniformly

Covering

Y

PVC as per JIS C 3410



Color: Black

Standards

Design : JIC C 3410(1999)

Flammability: IEC 60332-1 & IEC 60332-3 Category A

Cores & Size

Number of Conductor: 2 Core

Size of Conductor (mm2): 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300

Feature

Halogen-free, Low Smoke, Flame retardant

Maximum Working Voltage and Testing Voltage

Nominal voltage (V) Maximum working voltage (V) (Test voltage) V/min.
a.c d.c
250V 250V 450V 1500/5
0.6/1 kV 0.6/1 kV 0.9/1.5kV 3500/5

Minimum Bending Radius

The bending radius for the installation of cables should be not less than the values given as follows:

Type of cable Minimum bending radius
Up to 1.8/3kV Unarmored or unbraided
D ≤ 25mm 4XD
D > 25mm 6XD
Metal braid screened or armored 6XD
Tape screened 8XD
3.6/6kV Single core 12XD
above 3-core 9XD
NOTE) D : Overall diameter of cable

Application:

The cable is fixed installation, used for power, lighting and control in most area and open deck area in ship.
