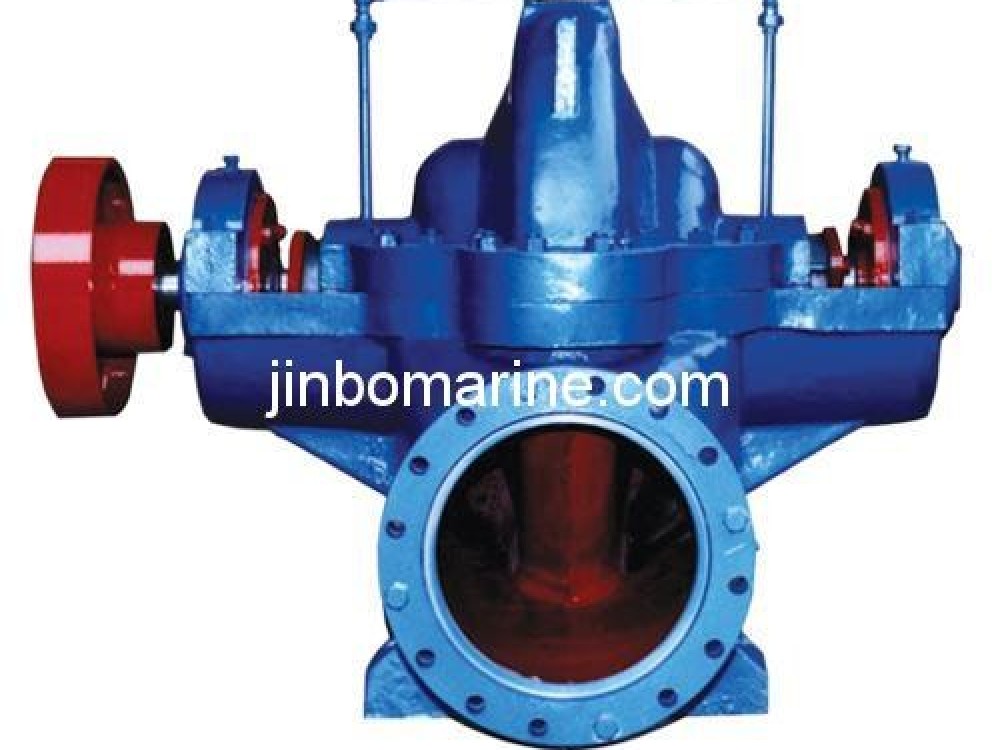

Marine Single Stage Double Suction Large Capacity Centrifugal Ballast pump

  • Category:Centrifugal Pump
  • Material:Cast iron pump cast, Bronze impeller, Stainless steel pump shaft
  • Standards:standard
  • Certificate:CCS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

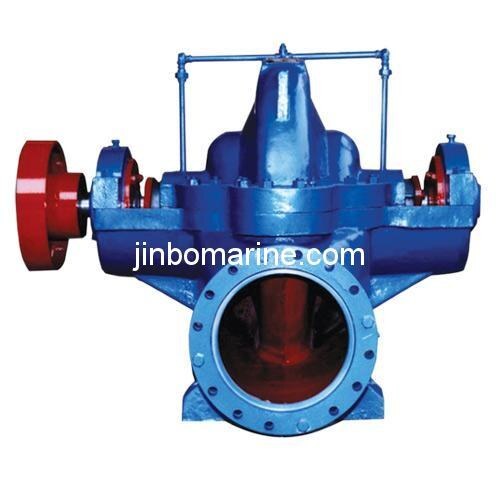

China Marine Single Stage Double Suction Large Capacity Centrifugal Ballast pump:

S Series Marine Single Stage Double Suction Centrifugal Pump

General description

S-Type pump is single stage double suction,in horizontal centrifugal pump apply shipyards,large ships for ballast pumps,fire pump,pumps used to pump liquid cargo. Transportation can be no more than 80c temperature of sea water,fresh water,as well as physical and chemical properties similar to those of liquid water.Pump flow components such as stainless steel or cast iron with high performance spray SEBF melt with epoxy powder coating,to prevent water corrosion and pitting of corrupt and incompetent transmission fluid.It also can be used for factories, mines, cities,power plants to drainage,irrigation and drainage of farmland water conservancy projects.From driver see pump rotating clockwise direction.

Type explanation

150S-78A/B

150-Pump's inlet nominal diameter 150mm

S-Single stage double suction centrifugal pump

78-Pump's head is 78m

A-The first cut impeller

B-The second cut impeller

Parameter

Type Capacity Head Speed Power (kw) Efficiency NPSHr Impeller diamter
m3/h m r/min shaft motor % m mm
150S-100 160 100 2950 59.8 75 73 4.5 265
150S-78 160 78 46 55 74 245
150S-78A 140 60 31.9 45 72 223
150S-50 160 50 27.6 37 79 206
150S-50A 140 39 19.9 30 75 185
150S-50B 133 36 18.6 22 70 170
200S-95 280 95 94.4 132 77 5 282
200S-95A 268 87 84.8 110 75 270
200S-95B 245 72 64.9 75 74 250
200S-63 280 63 59.5 75 81 235
200S-63A 245 48 41.6 55 77 210
200S-42 280 42 37.7 45 85 204
200S-42A 245 36 30 37 80 193
