Marine Equipment

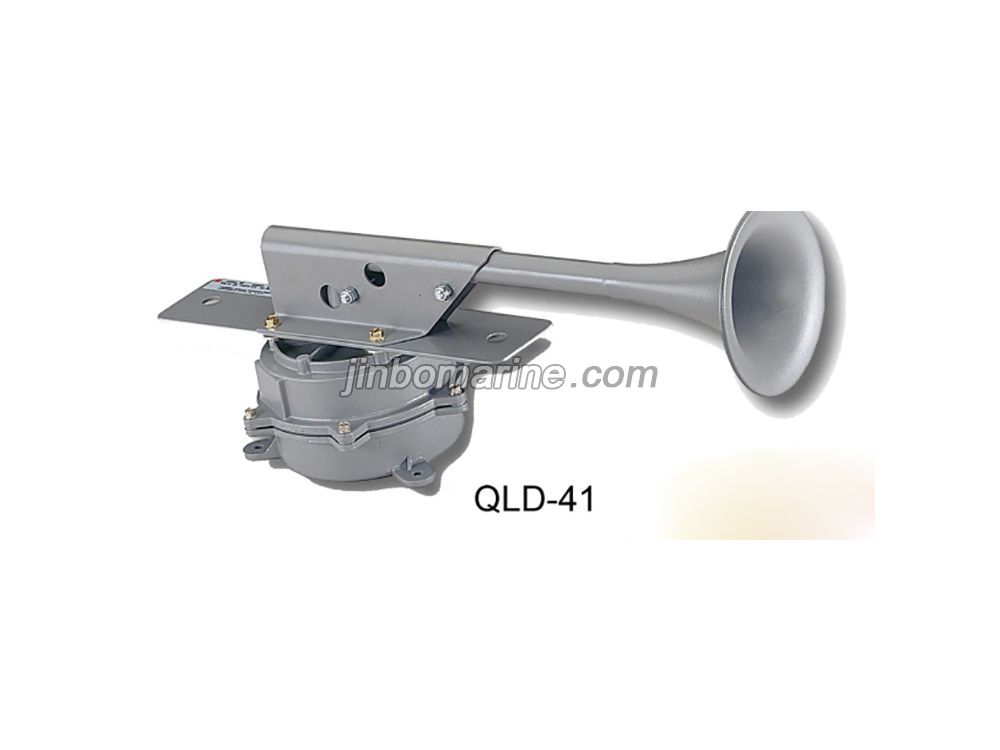

QLD-41 Marine Air Horn
Sealing technology: high standard waterproof design,no holes global gap,water is immune. Alumiminium base. Long horn: long steel body flare, sound is far from effective protectio...
PDF Datasheet
China QLD-41 Marine Air Horn:
Sealing technology: high standard waterproof design,no holes global gap,water is immune.
Alumiminium base.
Long horn: long steel body flare, sound is far from effective protection base.
Waterproof plug: Ultra-high waterproof rating. Not only reflected in the body. Waterline also do meticulous.
Model:QLD-41
Name:Electric horn
Working VOltage:12V or 24V DC
Current Draw:12V 7A 24V 5.9A
Sound leval:135DB
Power:168W
Frequency:320Hz
House material:Aluminum alloy
Wire:100% pure copper coil
House color:Yellow or Gary
Overall length:560mm
Trumpet lenght:450mm
Trumpet diamter:128mm
Base diameter:170mm
Overall base:175mm
Wire lenght:200mm+600mm
Waterproof rating:IPX6X
Inner box:Netural brown box 4.2KG 58*20*21cm
Package:4pcs/carton G.W/N.W:16.5KG/14.5KG 59.5*42*44CM
Used by many major manufacturers of construction equipment, Model 52 resonating horns suit the warning needs of any off-road vehicle working in a high noise environment.
