China TPY Series Marine Stainless Steel Vertical Multistage Centrifugal General Servic:

TPY

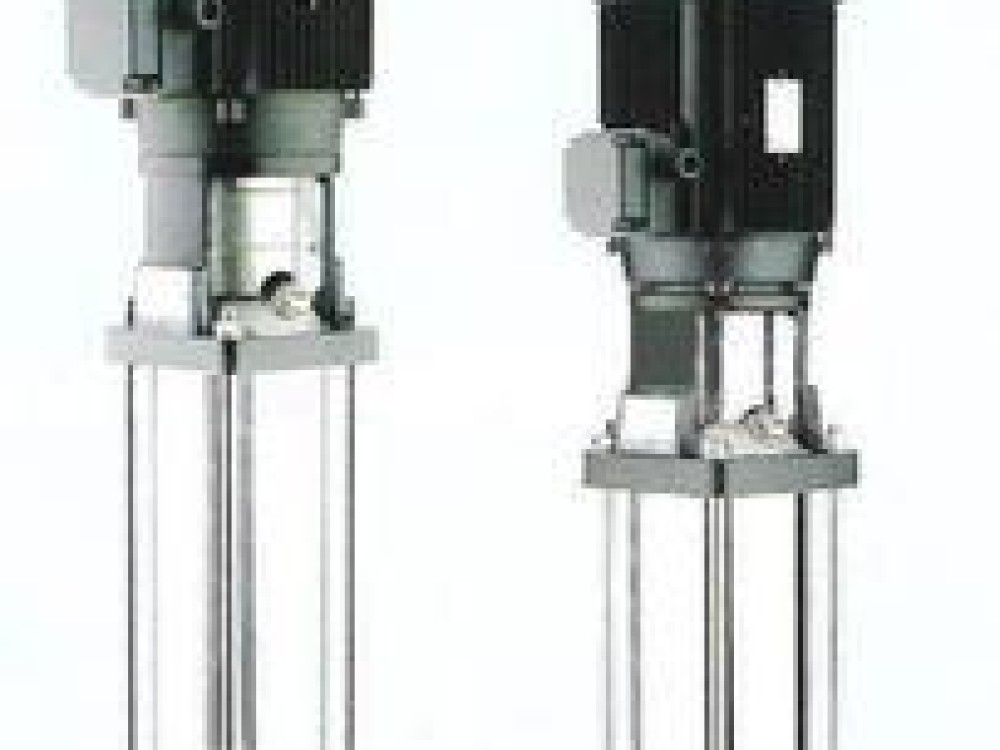

Series Marine Stainless Steel Vertical Multistage Centrifugal Pump

General description

TPY series vertical multistage centrifugal pump, all material is stainless steel. For conveying the temperature between -40c to +120c of water, soft water,swimming pool water or slightly alkaline,and other stainless steel(304 or 316L)had no significant corrosion of the liquid,widely used in liquid transport,hot and cold clean water and softened water,mineral water and distilled off circulation and pressurization. Low noise,corrosion resistance,beautiful appearance,small size,smooth opreation,easy installation,long service life.

Model Explanation

for the model TPY2-69

TPY-stainless steel vertical multi-stage centrifugal pump

2-Capacity 2m3/h

69-Head 69m

Performance parameter

Model range TPY1 TPY2 TPY3 TPY4 TPY5 TPY8 TPY12 TPY16 TPY20
Capacity(m3/h) 1 2 3 4 5 8 12 16 20
Flow limitation(m3/h) 0.6-2.0 1-3.5 1.2-4.0 2.0-8.0 2.0-8.0 5.0-12.0 7.0-16.0 8.0-22.0 10.0-28.0
Max pressure(bar) 22 22 22 22 22 21 21 21 21
Motor power(kw) 0.37-1.5 0.37-3 0.37-3 0.55-4 0.37-4 1.1-7.5 1.5-11 2.2-15 1.1-18.5
Maximum efficiency 48 48 57 60 62 63 63 68 69
