Alloy Steel Hollow Hydraulic Wrench

Alloy Steel Hollow Hydraulic Wrench     The hollow hydraulic wrench uses high-strength light metal to the maximum extent, and the power head is integrally formed to improve the ...

Marine Tools1 Photos ISO9001 Supplier

Alloy Steel Hollow Hydraulic Wrench

Category: Marine Tools
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty: 12 Months unless specified otherwise
Place of Origin: China

We can supply according to your requirement.

China Alloy Steel Hollow Hydraulic Wrench:

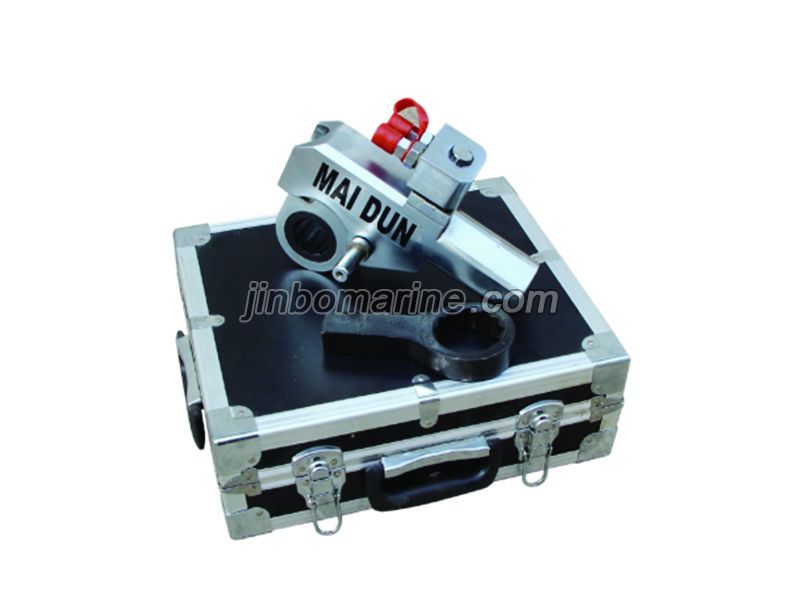

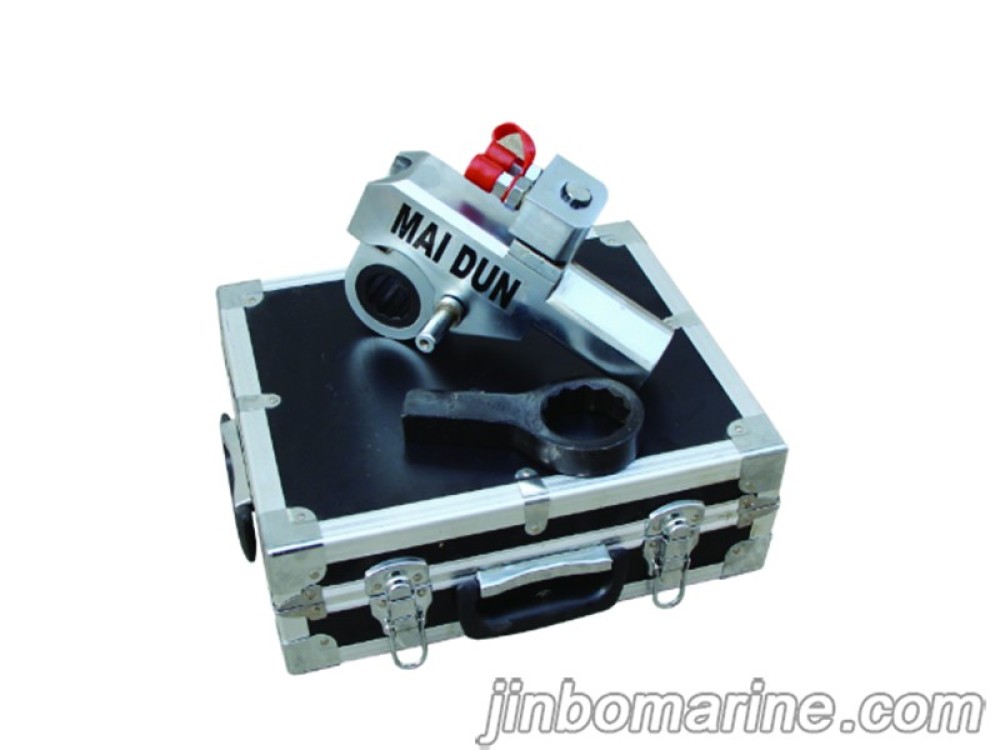

Alloy Steel Hollow Hydraulic Wrench

The hollow hydraulic wrench uses high-strength light metal to the maximum extent, and the power head is integrally formed to improve the strength and life in an all-round way; large torque/weight ratio, double-acting, high speed, large turning angle, and high efficiency, one power head can be used with a variety of The working head is used, and the working range is wide.The 360°x 360 °rotating hose joint makes it easy to use in a small space, and the mechanism will never be stuck. The torque repeatability is as high as ± 3%, and no other tools are required when loosening.The storage box protects the wrench head from damage, water immersion and dirt, and has few moving parts for durability and easy maintenance. The hollow hydraulic wrench is small in size,large in torque and accurate in preload.It is widely used in mechanical equipment and facilities in metallurgy, electric power, chemical industry, machinery, communication and other industries, and the installation, disassembly and maintenance of important bolted connections.torque value.

Model (Nm)
Max. torque
(mm)
Removable nut opposite side
(mm)
Removable bolt diameter
(Mpa)
Preset pressure
YK-30 2900 S32-S55 M22-M36 100/10
YK-60 5000 S32-S80 M22-M52 100/10
YK-90 13000 S32-S105 M22-M72 100/10
YK-120 24000 S55-S145 M36-M100 100/10
