HYF Skid Steer Main Control Valve
HYF Skid Steer Main Control Valve Principle : Port connection type Unit Flange connection Control type Pressure control spool diameter mm 19 ...
Loading product images...
HYF Skid Steer Main Control Valve
PDF Datasheet
We can supply according to your requirement.
China HYF Skid Steer Main Control Valve:
HYF Skid Steer Main Control Valve

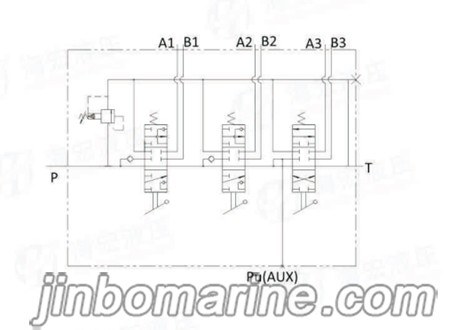

Principle :
| Port connection type | Unit | Flange connection | |||||
|---|---|---|---|---|---|---|---|
| Control type | Pressure control | ||||||
| spool diameter | mm | 19 | |||||
| Nominal flow | L/min | 100 | |||||
| Nominal pressure | bar | 200 | |||||
| Max. allowable return line back pressure | bar | 15 | |||||
| Pilot control pressure | bar | 30 | |||||
| Pilot control curve | bar | 4–25 | |||||
| Hydraulic oil temperature range | °C | −20 ~ +100 | |||||
| Viscosity range | m2/s | 10–460 | |||||
| Permissible oil contamination level | ~/19/16 (ISO 4406:1999) | ||||||
| Weight | kg | 20kg | |||||

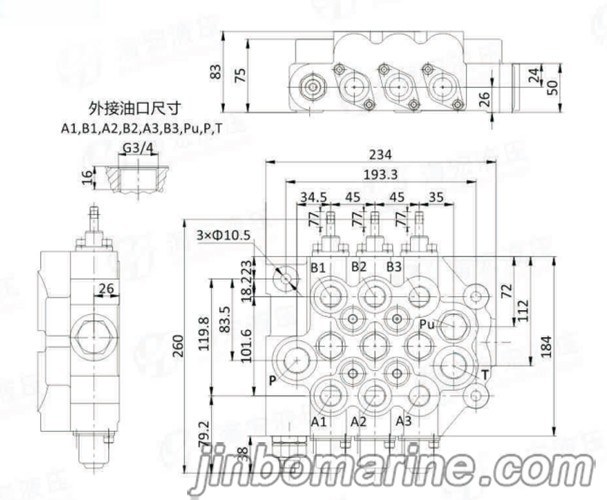

Size :
