PDF20 Dual-Circuit Brake Valve
PDF20 Dual-Circuit Brake Valve The dual‑circuit hydraulic brake valve adopts the principle of a direct‑acting three‑way pressure reducing valve. The brake pressure is proportional t...
Loading product images...
PDF20 Dual-Circuit Brake Valve
PDF Datasheet
We can supply according to your requirement.
China PDF20 Dual-Circuit Brake Valve:

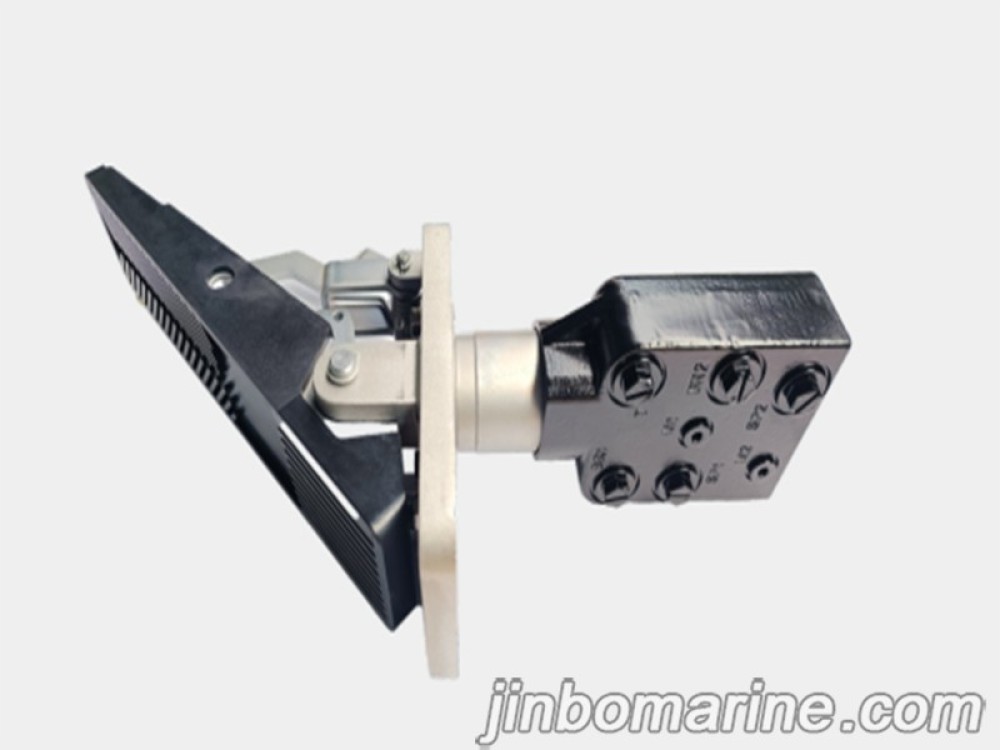

PDF20 Dual-Circuit Brake Valve
The dual‑circuit hydraulic brake valve adopts the principle of a direct‑acting three‑way pressure reducing valve. The brake pressure is proportional to the stroke of the operating control element or the stroke angle of the pedal, and the operating force is also proportional to the stroke of the actuator. The foot‑operated valve is designed with an ergonomic angle for easy and effortless operation. The pedal is equipped with a self‑locking mechanism.

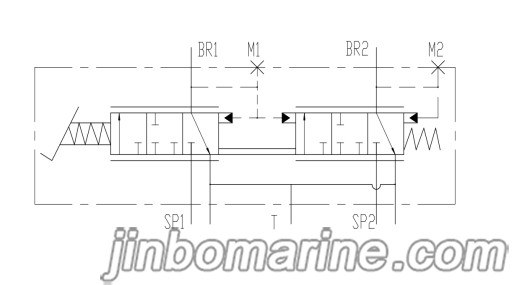

Principle :
| Max. Pressure at Port P | 20 MPa | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max.Braking Pressure at Port A | 12 MPa | |||||||||
| Return‑line Back Pressure | ≤ 0.5 MPa | |||||||||
| Viscosity Range | 10‑380 mm²/s | |||||||||
| Temperature Range | ‑20 ℃ ~ 100 ℃ | |||||||||
| Oil Fluid Cleanliness | The solid‑particle contamination level of oil fluid and system shall not exceed GB/T 14039‑2002‑/19/16 or NAS 1638 Class 10. | |||||||||
| Approximate Weight | 4.5Kg | |||||||||
