Stainless Steel Electric Air Horn
Stainless steel is used for all critical components such as trumpets, motor cover, diaphragms, assembly and mounting hardware. In the case of the XLP trumpet horns, the horn is given extra p...
Loading product images...
Stainless Steel Electric Air Horn
PDF Datasheet
We can supply according to your requirement.
China Stainless Steel Electric Air Horn:
Stainless steel is used for all critical components such as trumpets, motor cover, diaphragms, assembly and mounting hardware. In the case of the XLP trumpet horns, the horn is given extra protection through the complete over-molding of the internal motor cover housing.
High and low tone air horn.
Application:Marine air horn,Truck air horn,Trailer air horn.
Specification:

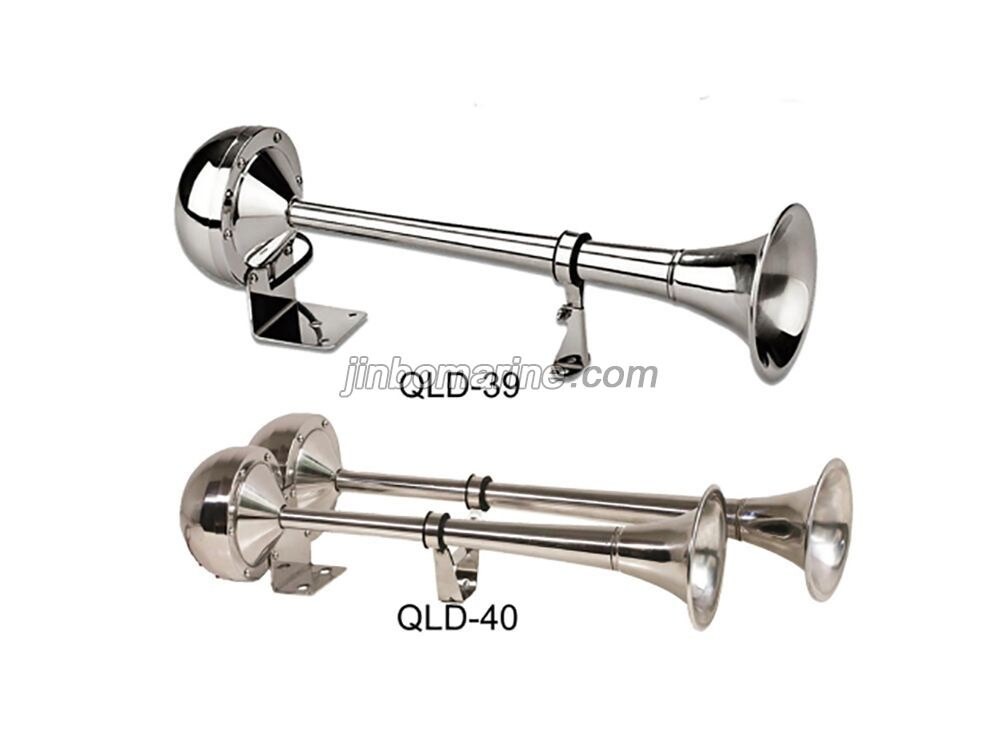

Product No. Voltage Current Frequency Sound Level Length Diamter Color QLD-39 Single Trumpet 12V/24V 12V 5A/24V 2.5A 310/370+/- 20HZ 115±5db 410mm 101mm Chrome QLD-40 Dual Trumpet/Double Trumpet 12V/24V 4A 310/370+/- 20HZ
130DB±5db
410mm 101mm Chrome
| Product No. | Voltage | Current | Frequency | Sound Level | Length | Diamter | Color |
| QLD-39 Single Trumpet | 12V/24V | 12V 5A/24V 2.5A | 310/370+/- 20HZ | 115±5db | 410mm | 101mm | Chrome |
| QLD-40 Dual Trumpet/Double Trumpet | 12V/24V | 4A | 310/370+/- 20HZ | 130DB±5db | 410mm | 101mm | Chrome |
Size:
| Model | Package | Size(cm) | N.W(KG) | G.W(KG) | Quantity |
| QLD-39 | White box | 45*25*55 | 23.5 | 24 | 10pcs/ctn |
| QLD-40 | White box | 470*50*55 | 39.5 | 40 | 10pcs/ctn |
